Mission critical equipment operates in environments where downtime is unacceptable. Data centers, medical devices, communication systems, industrial control platforms, and power infrastructure all depend on uninterrupted operation. In these applications, thermal management is not only a performance issue but also a reliability and safety requirement.

Redundancy fan design is a proven strategy to ensure continuous cooling even when individual components fail. This article explains the principles of redundant fan architecture, common redundancy configurations, and key design considerations for mission critical equipment. The goal is to help engineers design cooling systems that maintain thermal stability under fault conditions.

Why Redundant Cooling Is Necessary

In mission critical systems, a single cooling fan failure can cause rapid temperature rise and trigger system shutdown or permanent damage. Even high quality fans have finite lifetimes, and failure modes such as bearing wear, electrical faults, or contamination cannot be completely eliminated.

Redundant fan design reduces the risk associated with single point failures. By distributing cooling responsibility across multiple fans, the system can tolerate the loss of one or more units while maintaining sufficient airflow. This approach significantly improves system availability and operational reliability.

Basic Concepts Of Fan Redundancy

Fan redundancy refers to a cooling architecture where multiple fans work together to provide airflow capacity beyond the minimum required for normal operation. When one fan fails, the remaining fans continue operating and compensate for the loss.

There are two core redundancy strategies

Active redundancy where all fans operate simultaneously under normal conditions

Standby redundancy where backup fans activate only after a failure is detected

Active redundancy is more common in electronic equipment because it allows smoother airflow distribution and faster fault response.

Common Redundant Fan Configurations

Several redundancy configurations are widely used in mission critical cooling systems.

N plus one configuration is the most common approach. The system requires N fans to meet cooling demand, and one additional fan provides backup capacity. If any single fan fails, total airflow remains within acceptable limits.

N plus two configuration is used in high availability systems with higher risk tolerance requirements. This configuration allows multiple fan failures without exceeding thermal limits.

Parallel fan arrays are typically used when high airflow is required at low to moderate static pressure. Series fan configurations are applied when higher static pressure is needed to overcome system resistance.

Airflow And Pressure Matching In Redundant Systems

In redundant fan systems, airflow and pressure matching is critical. Fans operating in parallel must have similar performance curves to avoid airflow imbalance. A failed fan can become a flow obstruction if not properly isolated, reducing the effectiveness of remaining fans.

System designers must ensure that the cooling system still meets minimum airflow requirements under worst case failure scenarios. This requires analyzing fan performance curves at elevated operating points and increased fan speeds if speed control is available.

Control And Monitoring In Redundant Fan Design

Redundant fan systems rely heavily on monitoring and control mechanisms. Tachometer feedback, current sensing, and temperature monitoring are commonly used to detect fan failures.

Once a failure is detected, the system may increase the speed of remaining fans to compensate for airflow loss. In some designs, alarms are triggered to notify maintenance personnel while the system continues operating safely.

Intelligent DC fan control improves redundancy effectiveness and reduces unnecessary fan wear during normal operation.

Mechanical And Structural Considerations

Mechanical design plays an important role in redundant fan performance. Fan placement affects airflow distribution and failure tolerance. Poorly designed airflow paths may cause localized overheating even when total airflow appears sufficient.

Hot swap fan modules are commonly used in mission critical equipment. These allow failed fans to be replaced without shutting down the system. Mechanical guides and electrical connectors must be designed to ensure reliable insertion and removal.

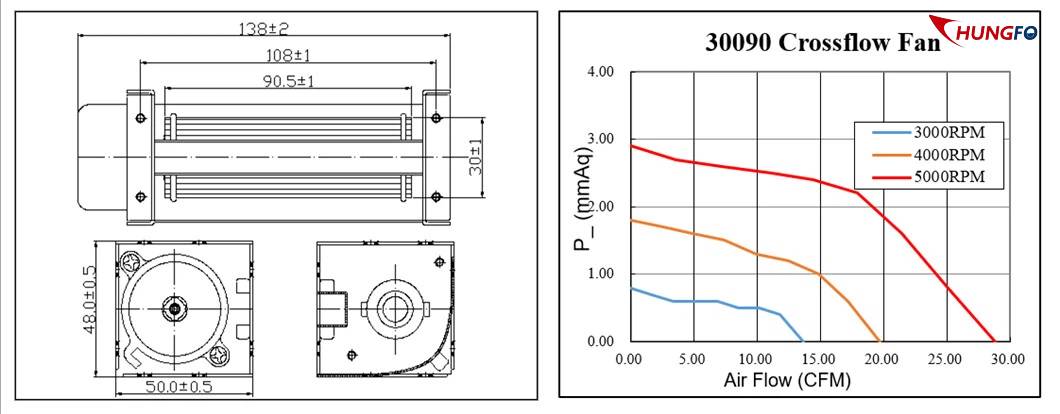

Manufacturers such as China Chungfo axial cooling fan support redundancy applications by offering fans with consistent performance and long service life suitable for continuous operation.

Reliability And Lifecycle Impact

Redundant fan design extends system reliability but also increases component count. More fans introduce more potential failure points, making quality and lifecycle prediction essential.

Using redundancy allows each fan to operate at lower stress levels, which can significantly extend individual fan lifespan. When combined with predictive maintenance strategies, redundancy reduces unexpected downtime and improves total cost of ownership.

Typical Applications Of Redundant Fan Systems

Redundant cooling architectures are widely used in

Data center servers and storage systems

Medical imaging and life support equipment

Telecommunication base stations

Industrial automation and control cabinets

Power conversion and energy storage systems

In all these applications, thermal failure can have serious operational or safety consequences, making redundancy a standard design practice.

Conclusion

Redundancy fan design is a critical element of thermal management in mission critical equipment. By eliminating single point failures and maintaining airflow under fault conditions, redundant cooling architectures ensure continuous and reliable system operation.

Effective redundant fan design requires careful airflow calculation, proper fan matching, intelligent control, and robust mechanical integration. When implemented correctly, redundancy transforms cooling systems from a vulnerability into a reliability asset.
