With the upgrading of household appliance intelligence and home quality, dryers have become an indispensable essential home appliance product for modern families, hotel apartments and laundry industries. Different from traditional washing machines, dryers realize clothes drying, sterilization, wrinkle removal and other functions relying on air circulation, heat exchange and moisture discharge. As the core power component of the dryer air duct system, heat dissipation system and exhaust system, the operational stability, service life and working noise of fans directly determine the overall performance of dryers and user experience.

In actual application scenarios, dryers have long been in a closed environment with high humidity and accumulated lint dust. Ordinary fans are prone to bearing rust, motor short circuit, blade dust accumulation and stalling, air volume attenuation, increased noise and even shutdown burnout due to insufficient professional dust and moisture proof design. According to after-sales data statistics of the home appliance industry, nearly 40% of dryer failures are caused by damage to components of dryer cooling fan due to inadequate dust and moisture proof design, which is enough to show the core position of fan dust and moisture proof structure design in dryer R&D.

China Chungfo Fan has been deeply engaged in the R&D and production of cooling fans and blowers for many years, focusing on providing efficient heat dissipation solutions for multiple industries. Its products cover DC/AC fans, blowers and motor systems, widely used in home appliances, medical equipment, automobiles, sports equipment, smart devices and other fields. Aiming at the harsh working conditions of high humidity and much dust of dryers, relying on years of supporting experience in home appliances, China Chungfo Fan has summarized a complete dust and moisture proof design system for dryer fans. Combined with the application characteristics of mainstream models such as 12V blower fan and DC dryer cooling fan, it sorts out professional design key points from seven dimensions including structural layout, material selection, sealing protection, circuit moisture proof, air duct adaptation, process standard and inspection verification, providing practical reference for dryer manufacturers in R&D, model selection and mass production.

1. Working Condition Characteristics of Dryers: Core Premise of Dust and Moisture Proof Design

To complete the dust and moisture proof design of dryer fans, it is necessary to accurately understand the special working conditions inside dryers first, and all design key points need to be carried out around the working condition characteristics to avoid cost waste or ineffective protection caused by blind design.

Firstly, it is high humidity and high water vapor environment. During the operation of the dryer, the moisture in clothes will continuously evaporate into high-temperature humid air flow. The internal relative humidity of the whole machine is maintained above 85% for a long time, and the local air duct area is even close to saturated humidity. The air flow temperature is usually between 50℃~75℃. The superposition of high temperature and high humidity will accelerate oxidation and rust of metal parts, aging and deformation of plastic parts, and moisture leakage of circuit boards. Secondly, it is dust and lint pollution environment. A large amount of lint, hair, fiber debris and dust particles will fall off during clothes drying. These light sundries will float around with the circulating air flow, easily adhere to fan blades, air inlets, bearing gaps, motor coils and other positions. Long-term accumulation will block the air duct, increase operation load, breed mold, and even wind the motor to cause jamming and burnout.

Furthermore, due to the closed circulating air flow characteristics, most dryers adopt the combined air duct of internal circulation and exhaust. Fans are in a closed and semi-closed space for a long time, and dust and moisture cannot be dissipated quickly, which will continuously condense on the fan surface to form stubborn stains and moisture condensation. At the same time, household dryers are mostly placed statically for a long time. The placement positions such as kitchen, bathroom and balcony have high humidity itself. The internal moisture cannot air-dry naturally during shutdown and standing, and condensation is easy to form inside the fan, aggravating moisture damage to internal components.

Based on the above harsh working conditions, DC dryer cooling fan and various exhaust and circulating fans cannot follow the design standards of ordinary indoor fans. Targeted special structure optimization for dust prevention, water proof, moisture proof and dust accumulation prevention must be carried out, which is also the core reason why China Chungfo Fan adheres to working condition customized design in home appliance supporting.

2. Core Key Points of Overall Structural Dust Proof Design

Structural dust prevention is the first barrier for dryer fan protection. Through rational design of air inlet protection, shell structure, blade modeling and installation layout, it blocks large particle lint and dust from entering the fan from the source and reduces the probability of dust accumulation.

First, design of air inlet dust grille and protective net. The air inlet of the fan is the main channel for dust entry. The dense grille structure should be adopted in the design, with the grille gap controlled within 2mm, which can ensure no attenuation of air volume and block large pieces of lint and hair from being involved. At the same time, detachable high-density nylon dust net or stainless steel microporous net is standard equipped with mesh specification of 80~120 mesh, which can filter fine fiber dust and support disassembly, water washing and cleaning to adapt to the maintenance needs of long-term use of dryers. 12V blower fan is mostly used in small mini dryers and wall-mounted dryers with small size and limited air inlet space. The integrated embedded dust net design is adopted to avoid the external grille occupying installation space while ensuring the dust proof effect.

Second, fully enclosed structure design of fan shell. Abandoning the traditional open frame fan structure, special dryer fans adopt fully sealed plastic shell or metal fully wrapped shell. Closed baffles are arranged on the side and back to block only necessary air inlet and outlet, preventing dust from invading the motor interior through side gaps. The corners of the shell are designed with circular arc chamfering to reduce dead angles of air flow and avoid dust accumulation and agglomeration at the corners. When supporting dryer fans for Midea, Chigo, Samsung, Hitachi and other brands, China Chungfo Fan adopts integrated injection molding fully wrapped shell with high structural strength and small gaps, which greatly improves the basic dust proof performance.

Third, streamlined dust accumulation prevention modeling design of fan blades. As the core of air flow drive, the modeling of fan blades directly affects the dust adhesion. Priority is given to large radian streamlined centrifugal fan blades and axial flow silent fan blades in design, with smooth polishing treatment on the surface, no edges and corners and no grooves, reducing the adhesion of fiber dust. At the same time, optimize the blade inclination and blade spacing to ensure the rapid penetration of air flow, and use the self-cleaning effect of high-speed air flow to reduce dust adhesion and stay. Avoid using flat right-angle fan blades, which are easy to hang lint. Long-term accumulation will break the dynamic balance and cause jitter and noise.

Fourth, dislocation dust proof layout of overall installation. In the design of dryer air duct structure, the fan installation position should avoid the area where lint concentrates and falls, adopt the lateral air inlet and bottom air outlet dislocation layout, not directly blowing towards the clothes drying cavity, reducing direct dust involvement. At the same time, a reasonable gap is reserved between the fan and the inner wall of the air duct to avoid forming dust accumulation dead corners due to excessive fitting, taking into account air circulation and dust proof protection.

3. Key Points of Moisture Proof and Sealing Structure Design: Blocking Water Vapor Intrusion Path

If structural dust prevention is to block external dust, moisture proof and sealing design is to isolate high-temperature water vapor and condensed moisture from entering the core parts such as fan motor, bearing and circuit board, which is the key link to extend the service life of dryer fans.

First, bearing and rotating shaft sealing and moisture proof design. The fan bearing is the most vulnerable part to moisture and rust. Special dryer fans prefer double ball bearings, and high-temperature waterproof oil seals and silica gel sealing gaskets are installed at both ends of the bearing to completely seal the bearing gap, prevent water vapor from penetrating into the lubricating grease layer, and avoid grease deterioration and bearing rust and stagnation. Low-grade oil-bearing fans are not recommended for dryer working conditions. Even with sealing treatment, they are prone to grease volatilization and abnormal noise stagnation in high humidity environment. Whether DC or AC models, high-end supporting dryer cooling fan is standard equipped with sealed double ball bearings with stronger moisture proof and rust resistance.

Second, motor coil and stator potting moisture proof treatment. The internal motor coil and stator iron core are prone to short circuit and insulation aging when directly contacting moisture. The integral epoxy resin potting process is adopted in the design to completely seal and wrap the coil and wiring terminals to form a waterproof and moisture proof protective layer, isolating the contact between water vapor and circuit. The potting material should adopt special epoxy glue with high temperature resistance above 70℃ and insulation grade above Class B, taking into account sealing performance, thermal conductivity and aging resistance, adapting to the long-term high temperature and high humidity operation environment of dryers.

Third, waterproof sealing of wiring ports and circuit boards. DC fans and 12V blower fan are equipped with power supply wiring terminals and driving circuit boards, which are weak points of moisture proof. Waterproof terminal connectors are adopted in the design, waterproof silica gel plugs and sealing rubber rings are installed at the interface. The surface of the circuit board is coated with three-proof paint, with triple protection capabilities of moisture proof, mildew proof and salt spray proof, which can resist the erosion of condensation and water vapor inside the dryer and avoid circuit leakage and component burnout.

Fourth, sealing and filling of overall splicing gaps. High-temperature waterproof silica gel strips and foam sealing gaskets are used for filling the splicing joints of the upper and lower covers and borders of the fan shell to eliminate splicing gaps and prevent water vapor from penetrating into the internal cavity through gaps. All fixing screw holes adopt counterbore sealing design with waterproof gaskets installed to prevent water vapor from invading the interior along screw gaps.

4. Key Points of Material Selection for Dust and Moisture Proof Design: Material Adaptation for Long-term Working Condition Protection

The quality of materials directly determines the anti-aging, rust prevention and mildew resistance of fans in high humidity and dusty environment. In strict accordance with ISO9001, ISO14001 and IATF16949 management system standards, China Chungfo Fan selects materials for all special dryer fans through high and low temperature, salt spray and humid environment tests to ensure long-term stable operation.

In terms of shell and blade materials, ABS flame retardant and moisture proof plastic and PC high temperature resistant engineering plastic are preferred. Such materials have low water absorption, not easy to be deformed by moisture, anti-mold growth, high strength, aging resistance and low electrostatic dust adsorption characteristics. Compared with ordinary PP plastic, the dust and moisture proof and structural stability are doubled. Metal structural parts such as fixed brackets and protective frames are made of galvanized steel plate and stainless steel with salt spray anti-corrosion treatment to avoid rust and chip falling in high humidity environment and polluting the internal environment of dryers.

Sealing and buffer materials are made of high temperature resistant silica gel and EPDM rubber, which have the characteristics of water vapor resistance, aging resistance and no deformation. They will not harden and crack in long-term high temperature and high humidity environment, and continuously maintain sealing and dust proof effect. The dust net is made of modified nylon, anti-static, not easy to adsorb dust, not easy to deform after water washing, and can be reused for a long time.

Special high temperature and moisture proof lubricating grease is selected for lubricating bearings, adapting to the working conditions of double ball bearings. It is not easy to dilute and lose or agglomerate and deteriorate in high temperature and high humidity environment, ensuring smooth operation of bearings and reducing noise and wear. All materials meet CE, UL, TÜV, CCC certification standards, comply with REACH and RoHS environmental protection requirements, taking into account protection performance and home environmental safety.

5. Special Dust and Moisture Proof Design Details of DC Dryer Cooling Fan

DC dryer cooling fan is the mainstream configuration of mid-to-high-end dryers, with the advantages of wide speed regulation range, low energy consumption, good mute performance and adaptation to intelligent temperature control systems. It is equipped with precision electronic components such as drive IC and Hall elements inside, so the requirements of dust and moisture proof design are stricter than AC fans, and design key points need to be refined targeted.

First, fully closed moisture proof design of built-in drive board. The DC fan drive circuit board is completely built in the sealed cavity without external exposure. The board body is thickly coated with three-proof paint. Components are industrial grade moisture resistant models, which can work stably in the wide temperature and humidity environment of -20℃~80℃, resisting temperature change and condensation generated during dryer start and stop.

Second, wide voltage moisture resistant circuit design. Adapting to household 12V, 24V DC power supply working conditions, the circuit design adds moisture resistant isolation resistors and waterproof filter capacitors to avoid circuit short circuit and unstable voltage caused by moisture, preventing fans from speeding up and down abnormally and starting and stopping abnormally. At the same time, the circuit is equipped with over-current, over-voltage and over-heat protection, which can automatically cut off power for protection when slight leakage is caused by moisture, improving overall safety.

Third, mute and dust proof dynamic balance calibration. DC fans have adjustable rotating speed and frequent switching between high and low speed. High-precision dynamic balance inspection is required during design and production. There is no eccentric dust accumulation space for fan blades. Combined with sealed bearings and streamlined fan blades, it not only avoids jitter noise caused by dust accumulation, but also ensures long-term operation accuracy through moisture proof structure.

Fourth, modular detachable dust proof structure. DC dryer cooling fans adopt modular design. Dust nets and sealing gaskets can be disassembled and replaced separately without overall disassembly of the fan, facilitating later cleaning and maintenance, adapting to daily maintenance needs of household users and commercial equipment.

6. Adaptation Design Key Points of 12V Blower Fan for Dust and Moisture Proof

With the characteristics of high wind pressure, good air gathering effect and small size, 12V blower fan is widely used in small dryers, underwear disinfection dryers, embedded drying cabinets and integrated washing and drying machine local air duct air supply. The structure of blower is different from ordinary axial flow fans. The internal volute cavity is easier to accumulate lint and moisture, so design key points need to be adjusted targeted.

First, integrated sealed dust proof design of volute. The 12V blower adopts integral injection molding volute without splicing gaps. The internal air duct is treated with smooth streamline to reduce fiber dust wall hanging and accumulation. An annular dust filter is built in the air inlet of the volute to block hair and lint from entering the impeller. A tiny drainage condensation hole is reserved at the bottom of the volute to naturally discharge condensed water inside and avoid water accumulation soaking motor parts.

Second, high pressure moisture resistant impeller and motor adaptation. The blower impeller adopts widened closed structure with flanging treatment at the edge to prevent dust from rolling in from the side. The motor part follows the potting moisture proof and bearing sealing design, adapting to the high wind pressure and high load operation working conditions of the blower, and avoiding the decline of motor insulation in high humidity environment.

Third, low voltage moisture resistant circuit adaptation. 12V low voltage DC power supply design, the circuit adopts high temperature resistant waterproof sheathed wire, and the wiring terminal is injection molded and sealed to avoid moisture oxidation of contacts causing poor contact. At the same time, optimize the air pressure balance inside the blower air duct, reduce the backward flow of humid hot air into the motor cavity, and assist dust and moisture proof from the principle of air flow.

7. Process, Inspection and Standardized Control: Ensuring the Implementation of Dust and Moisture Proof Design

No matter how perfect the design scheme is, it needs mature production technology and strict inspection and verification to implement. Relying on advanced testing equipment such as wind tunnel test system, salt spray corrosion tester, high and low temperature environmental test equipment and noise laboratory, China Chungfo Fan conducts all-round accurate evaluation on the dust and moisture proof performance of dryer fans.

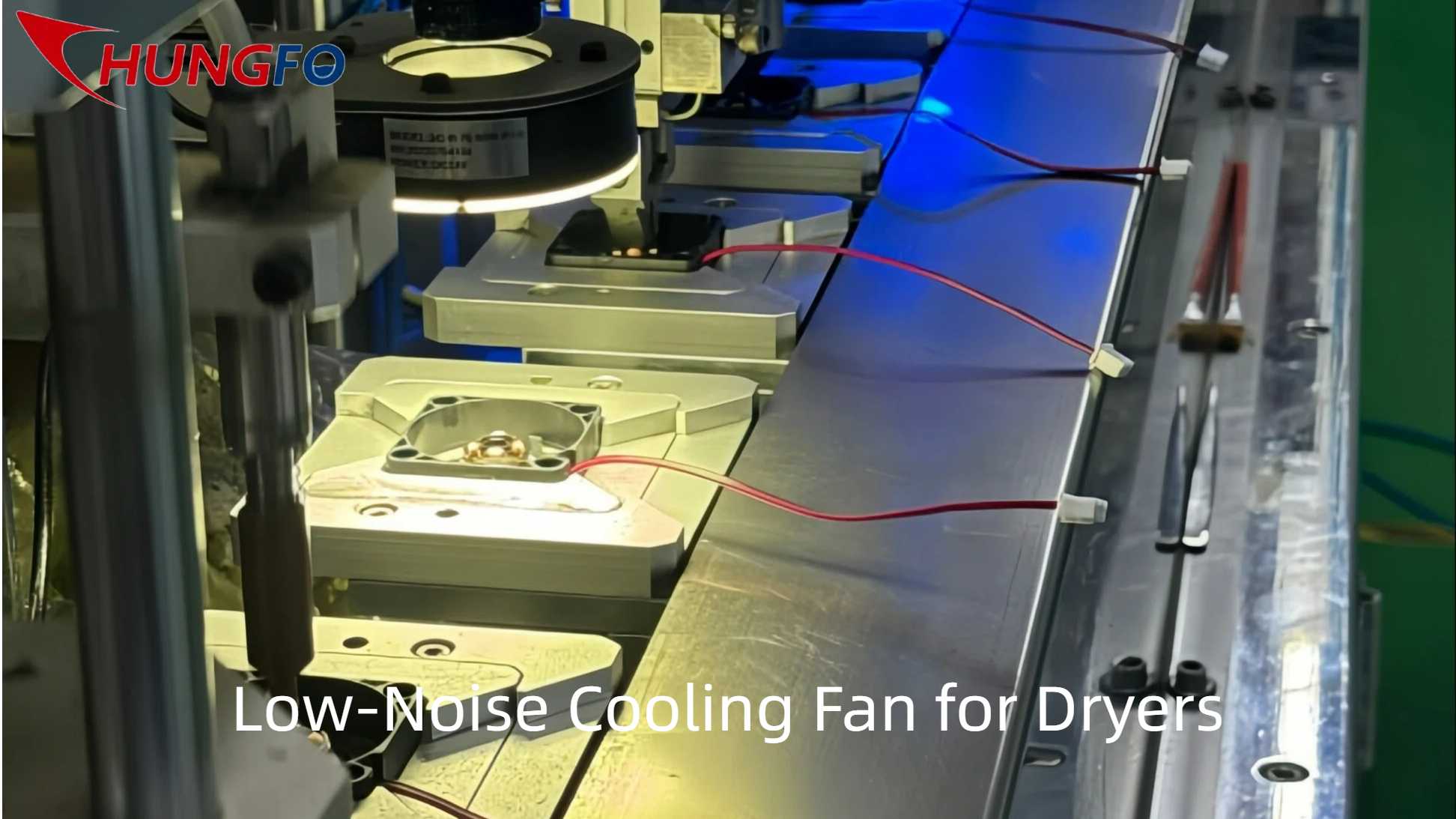

In terms of production technology, integrated injection molding, automatic potting and automatic assembly technology are adopted to reduce gap deviation caused by manual assembly and ensure the consistency of sealing structure. All sealing gaskets and dust nets are installed with precise mold matching without dislocation and looseness, eliminating protection loopholes from the technical level.

In the inspection and verification link, each special dryer fan must pass the humid heat aging test, salt spray corrosion test, high and low temperature cycle test and dust air duct simulation test to simulate the high humidity and dusty environment of dryers working all year round. Run continuously for thousands of hours to detect whether there are faults such as corrosion, dust accumulation and stalling, circuit failure. Only products passing all item tests can be supplied in batches.

At the same time, it has fully implemented ISO9001, ISO14001 and IATF16949 management system. Every link from raw material warehousing, production and processing, finished product inspection to delivery and shipment has standardized management and control, ensuring the stable and consistent dust and moisture proof performance of the full range of dryer cooling fan, 12V blower fan and DC dryer cooling fan.

8. Industry Application and Model Selection Avoidance Key Points

For dryer manufacturers, in addition to mastering design key points, reasonable model selection is also the key to ensure the overall dust and moisture proof performance. Priority should be given to professional home appliance fan manufacturers during model selection, such as China Chungfo Fan with customized R&D capabilities. It can customize fans adapted to air volume, wind pressure, noise and protection level according to dryer power, air duct size, humidity level and installation space, realizing multiple balance of air volume, noise, service life and energy efficiency.

In terms of pit avoidance, do not use ordinary civil non-protective fans to replace special dryer fans. Such fans have no sealed moisture proof structure and no dust proof design. They seem normal in short-term use, and are prone to corrosion, abnormal noise and burnout within half a year. Do not blindly pursue high rotating speed while ignoring dust proof structure. High rotating speed will aggravate dust adsorption. Without professional dust proof design, it will accelerate fan damage instead. At the same time, match models according to machine types. Large integrated washing and drying machines prefer axial flow heat dissipation models of dryer cooling fan, small mini models adapt to 12V blower fan, and mid-to-high-end intelligent machines are standard equipped with DC dryer cooling fan, achieving accurate matching of working conditions and models.

Nowadays, the dryer market continues to expand, and users' requirements for product durability, mute performance and maintenance-free performance are constantly improving. As a core accessory, the dust and moisture proof design of fans has become an important implicit indicator to measure dryer quality. China Chungfo Fan has always been customer-oriented, providing one-stop service from design and development to mass production and delivery. It can carry out customized optimization according to different application scenarios. With continuous technological innovation and strict quality control, its products maintain stable performance in the global market. It also establishes long-term cooperative relations with well-known domestic and foreign brands such as Midea, Chigo, Samsung and Hitachi with high-standard dust and moisture proof design solutions, continuously creating value for customers with high-quality products and professional services.

Completing the dust and moisture proof design of dryer fans requires not only thoroughly understanding the characteristics of working conditions, but also implementing from multiple dimensions such as structure, sealing, material selection, special model optimization and process inspection. Only by strictly controlling every detail can fans run stably for a long time in the complex environment of high humidity and much dust, reduce the after-sales failure rate of dryers, improve user experience, which is also the long-term R&D and design criterion adhered to by the entire home appliance heat dissipation accessories industry.
