High Quality Ventilation 5000rpm Cross Flow Tangential Fan

Lightweight and compact design allows installation in tight fitting spaces. Ball bearings design icreasing the fan’s operation stability and life span, more than 50,000 hours of operation.

  • Item NO.:

    DC-F25090
  • Order(MOQ):

    1000
  • Payment:

    T/T, L/C, Paypal, Western Union
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Shenzhen
  • Lead Time:

    20 working days
  • Weight:

    85g
  • Product Detail


12Volt Radiator Sleeve Ball Bearing Air Cooling, High Speed 5000RPM Cross Flow Exhaust Fan. The characteristics of cross flow fan, such as large air volume, wide air outlet surface and low noise, have become ideal solutions for many applications.


Our advantag


Because we are a manufacturer, we can better control the entire supply chain process, from raw material procurement to product manufacturing and quality control, and more strictly manage and control quality. So we can provide better quality assurance.


About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

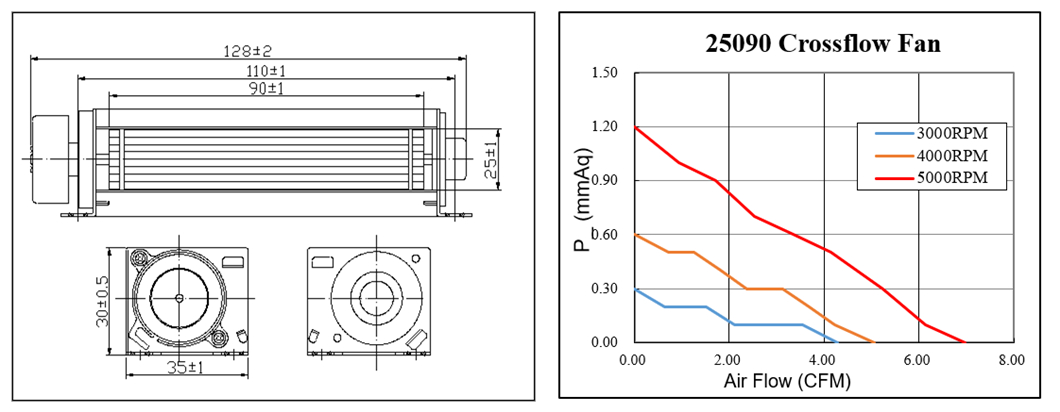

  • Dimension of impeller is 90mm(L)× 25mm(D) / The size of fan in inch is 3.54(L) in x 0.98(D) in; The outer frame size is 128.0 ± 2.0 mm /5.03 in; The center to center distance beween the mountiong holes is 110.0 ± 1.0 mm / 4.33 in.

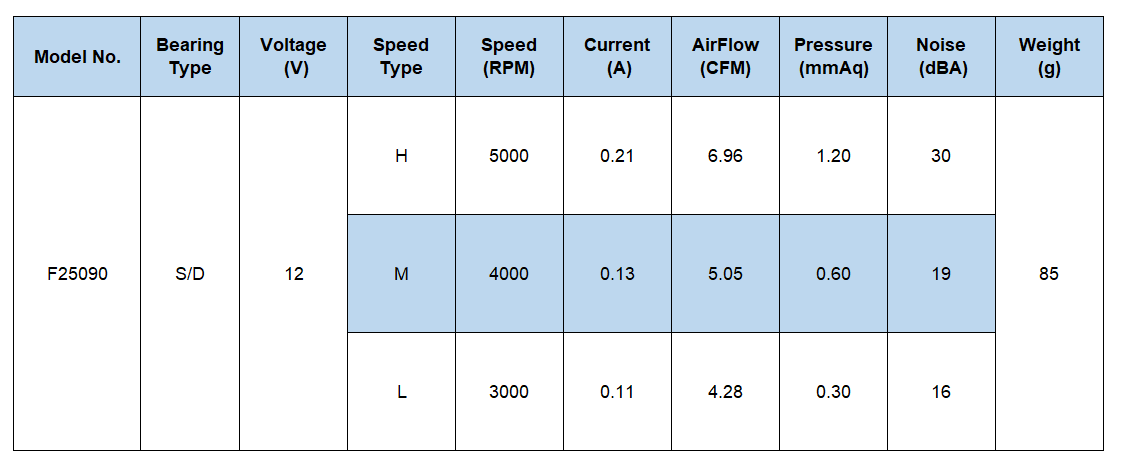

  • Operating Voltage Range: DC 12V | Current: 0.11 ~ 0.21 Amp | Speed: 3000 ~ 5000 RPM | Airflow: 4.28 ~ 6.86 CFM | Noise: 16 ~ 30 dBA | Pressure: 0.30 ~ 1.20 mmAq.
  • High Speed: This model is designed to maximize airflow and can be too loud for some applications.
  • Lead wire: (+): Red wire; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing; Life: working up to 50,000h at 25 degrees.
  • Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

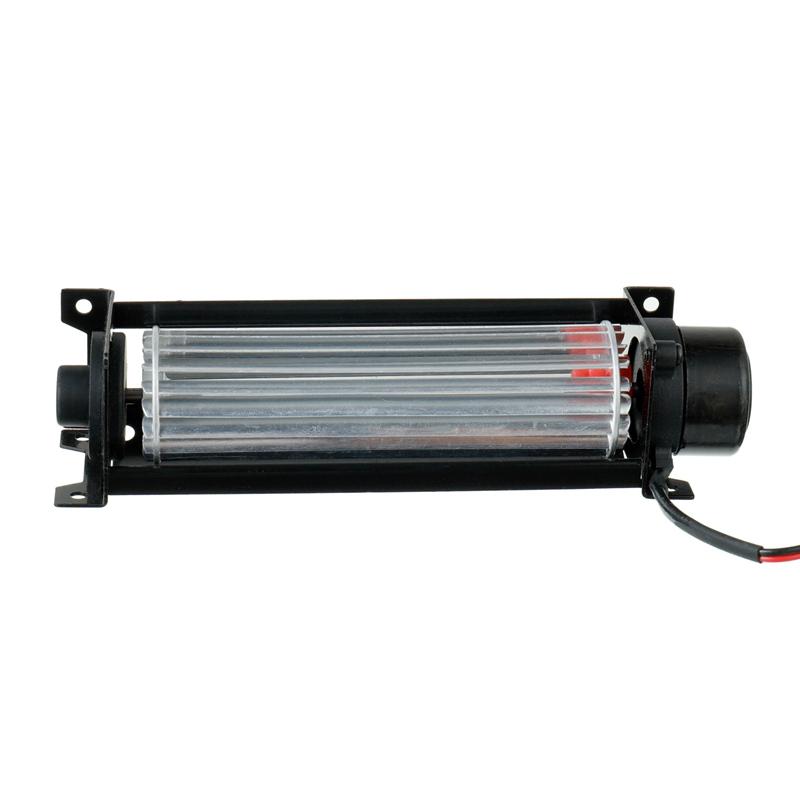

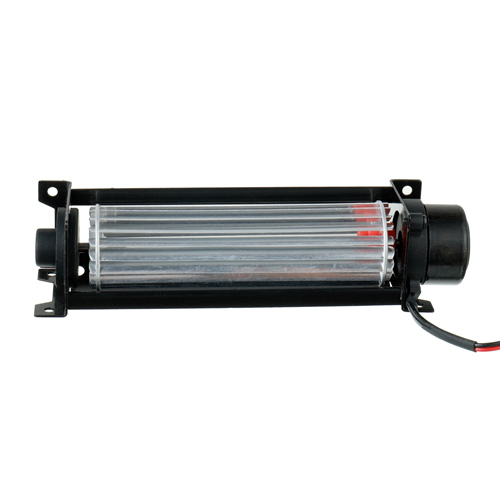

DC CROSS FLOW FAN 109x90x25mm

 Chinese manufacturer 25090 12v cross flow fan    5000rpm tangential cross flow fan


General Specification:
Frame: Cold Rolled Steel
Impeller: Aluminum Alloy
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing


high speed tangential cross flow fan

    high temperature cross flow cooling fan

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.



Feature

  • Excellent performance and impeccable quality;
  • CE, UL, RoHS and REACH environmental certificated;
  • Good quality bearing enhances the efficiency of the DC cross flow fan;
  • Fan blades are made of environmental protection and fireproof metal material;
  • The fan’s motor location can be changed from the right side to the left side by the factory at the customer’s request.



More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Type Model Size Type Model Size
DC Crossflow Fan F25090 109x90x25mm AC Crossflow Fan F30190 210x190x30mm
F30090 108x90x30mm F30290 310x290x30mm
F30090(PBT) 108x90x30mm F60180 200x180x60mm
F30150 168x150x30mm F60240 260x240x60mm
F30190 210x190x30mm F60300 320x300x60mm
F30250 270x250x30mm

F30290 310x290x30mm

F40150 170x150x40mm

F40300 320x300x40mm

F50100 132x90x50mm

F50200 263x200x50mm



Application

DC/AC Cross flow fan is suitable for refrigeration and display cabinets, indoor units of split air conditioners, mobile air conditioners, air fresheners, dehumidifiers, low static pressure air duct machines, air curtains, heaters, electric fireplaces, air curtains, big summer fans, window air conditioners, domestic tower fans and other air equipment and household appliances.

long life dc tangential cross flow fan

  • Custom projects related to Air Conditioners, Refrigeration and display cabinets, Dehumidifiers, Sports equipments, and many other industrials.
  • Create a good cooling and ventilation systems to keep household appliances and other electronic equipments running at the ideal temperature and at the best speed.



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.




Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.



Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
