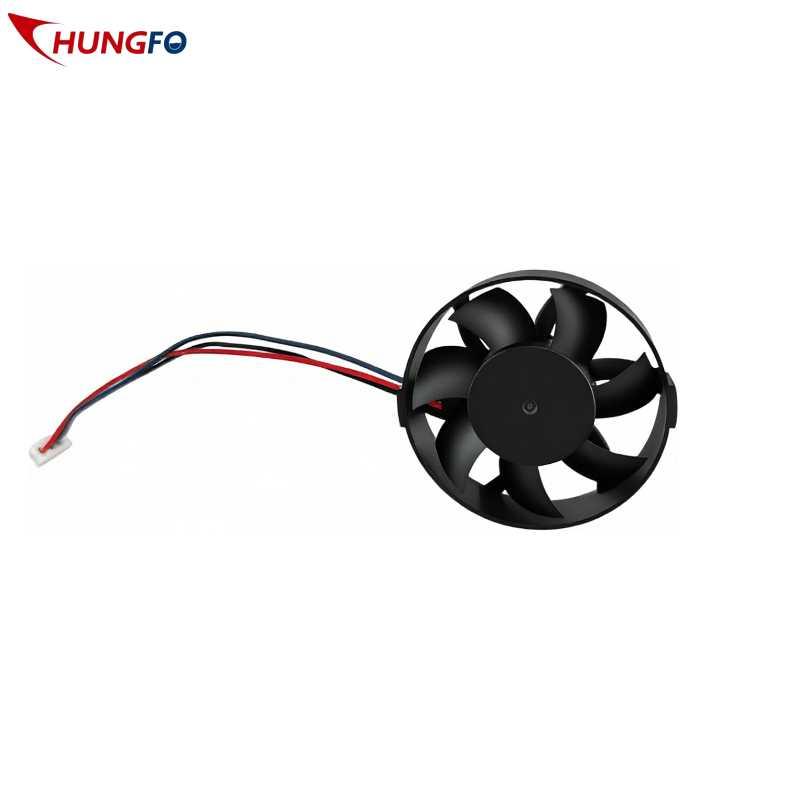

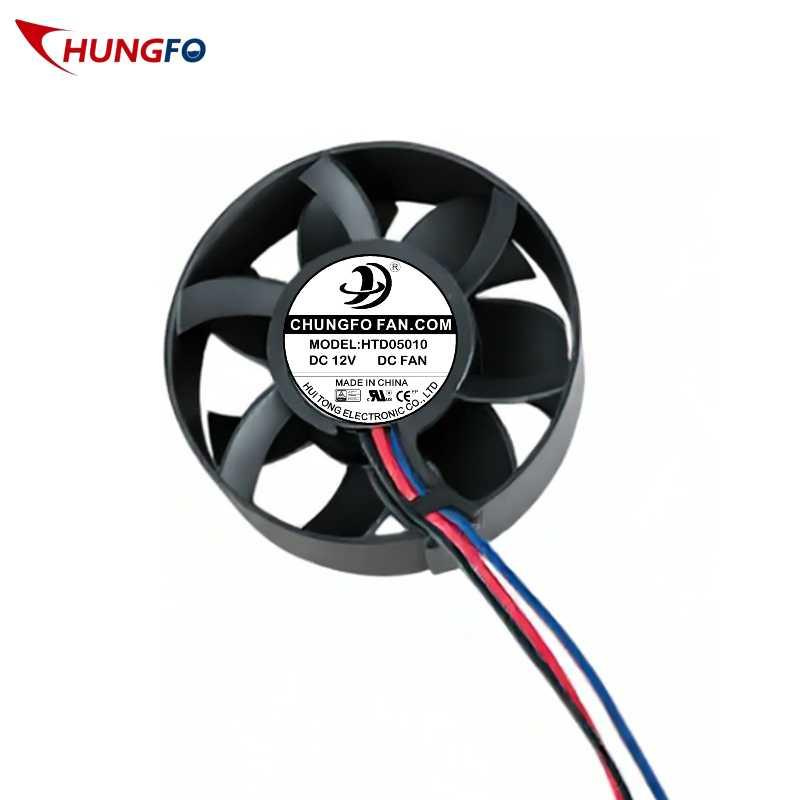

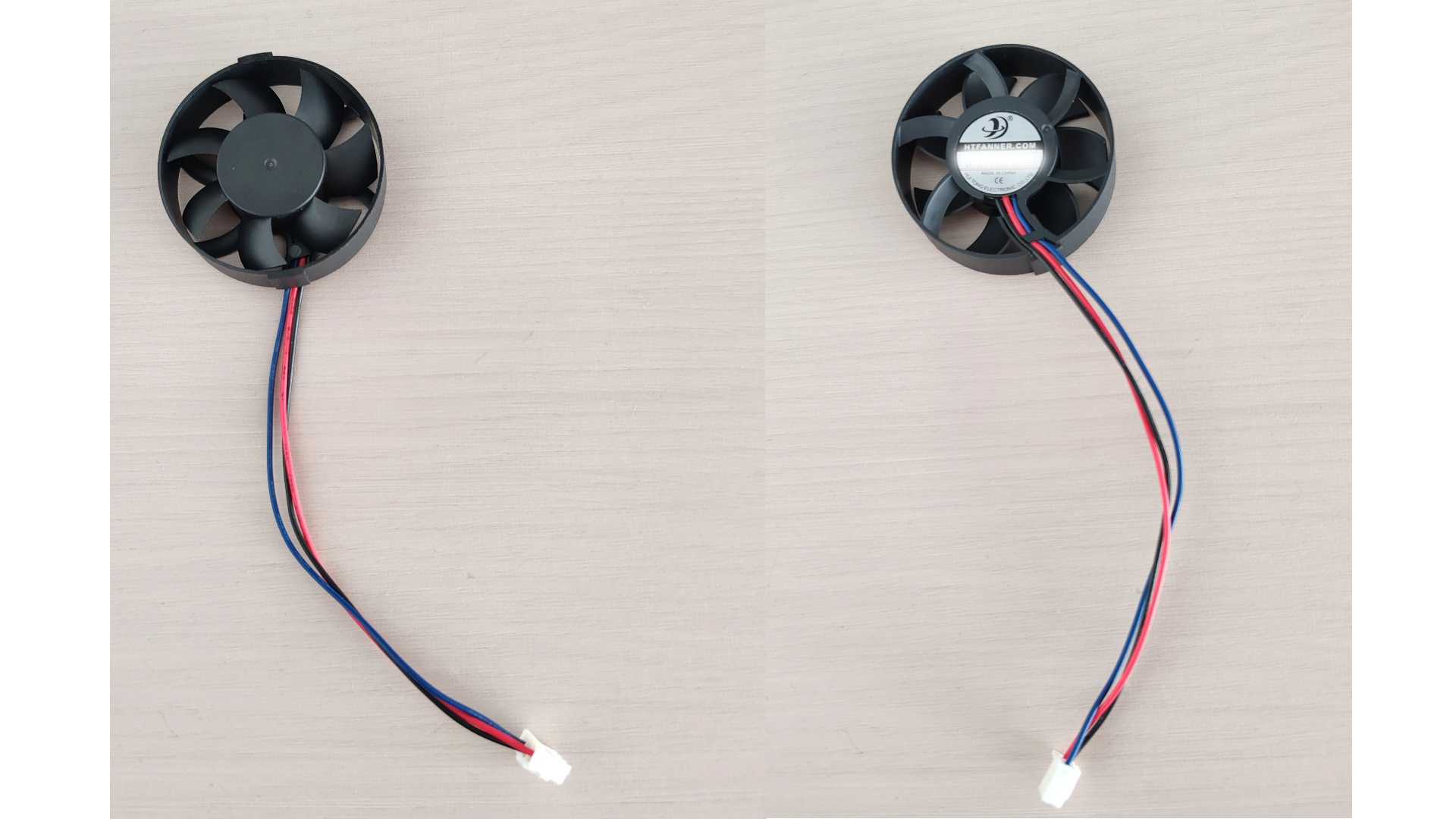

The HTD05010A 50x10mm DC Cooling Fan is a compact, high-speed brushless axial fan designed for thermal management in small electronic equipment. Featuring a rated voltage of DC 18V, maximum speed up to 8000RPM, airflow of 16.24 CFM, and a lightweight structure of only 13g, this cooling fan delivers excellent heat dissipation performance while maintaining reliable operation.
Item NO.:
D05010AOrder(MOQ):
1000Payment:
T/T, L/C, Paypal, Western UnionProduct Origin:
ChinaColor:
BlackShipping Port:
ShenzhenLead Time：
20 working daysWeight：
13
50x10mm DC Cooling Fan slim 10mm thickness allows easy integration into space-constrained applications,making it an ideal cooling solution for surveillance cameras, portable fans, mini air purifiers, network devices, medical electronics, and other compact equipment requiring efficient airflow.
About this item
High-Speed Performance
Operating at up to 8000RPM ±10%, the HTD05010A provides powerful airflow for rapid heat removal in compact systems.
Compact and Lightweight Design
With dimensions of 50×50×10mm and a weight of only 13g, the fan is ideal for devices with limited installation space.
Stable Brushless Motor Technology
The brushless DC motor ensures long service life, low maintenance requirements, and stable operation.
Reliable Cooling Efficiency
Generating up to 16.24 CFM airflow, the fan effectively reduces internal temperatures and improves equipment reliability.
Wide Operating Voltage Range
Supports operation from 12V to 20V, providing flexibility for different power system requirements.
Performance Parameter:
Rated Voltage: DC 18V
Rated Current: 0.10A±15%
Rated Power: 1.8W±15%
Label Cuurrent: 0.10A
Locked Current: ≤0.42A
Operating Voltage: 12~20V
Rated Speed: 8000RPM±10%
Rated Flow: 16.24 CFM
Rated Air Pressure: 7.1 mmAq
Noise（AVG.）: 46.2 dBA
|
Model No. |
BearingType |
Dimensions (mm) |
Voltage (V) |
Speed (RPM) |
Current
(A) |
Power (W) |
Air Flow (CFM) |
Pressure (mm Aq) |
Noise (dBA) |
Weight (g) |
|

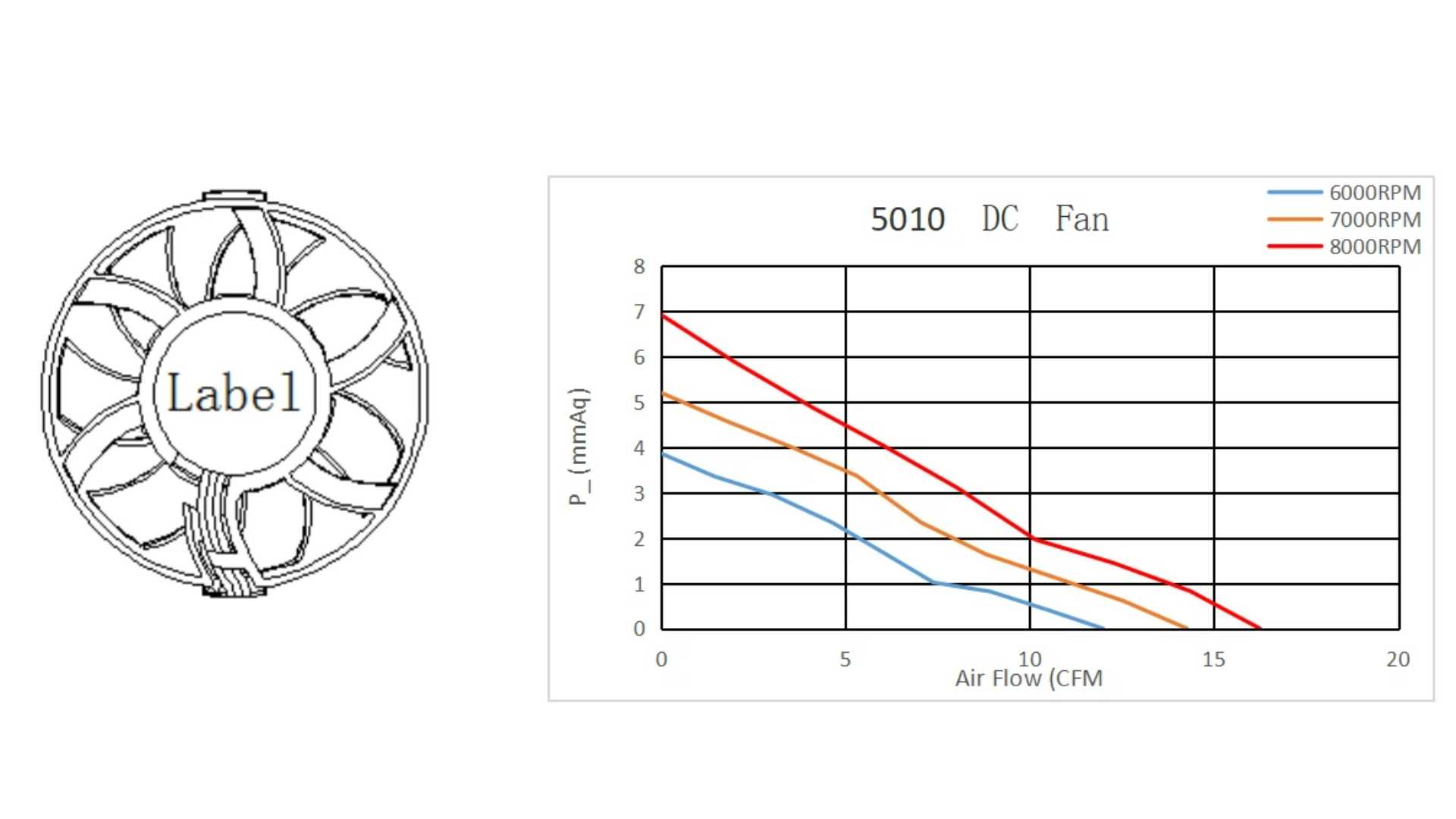

HTD05010A |
S/D |
50*10*10 |
18 |
6000 | 0.08 | 1.08 | 10.98 | 3.50 | 36.2 | 13 |
| 7000 | 0.09 | 1.62 | 13.00 | 4.60 | 39.5 | 13 | ||||
| 8000 | 0.13 | 2.34 | 15.68 | 3.61 | 43.2 | 13 |
More Models
These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.
|
Type |
Model |
Size |
Type |
Model |
Size |
|
DC Axial Fan |
D02507 |
25x25x7mm(0.98"x0.98"x0.27") |
DC Axial Fan |
D06025 |
60x60x25mm(2.36"x2.36"x0.98") |
|
D02510 |
25x25x10mm(0.98"x0.98"x0.39") |
D07015 |
70x70x15mm(2.75"x2.75"x0.59") |
||
|
D03007 |
30x30x7mm(1.18"x1.18"x0.27") |
D07025 |
70x70x25mm(2.75"x2.75"x0.98") |
||
|
D03010 |
30x30x10mm(1.18"x1.18"x0.39") |
D08010A |
80x80x10mm(3.15"x3.15"x0.39") |
||
|
D03015 |
30x30x15mm(1.18"x1.18"x0.59") |
D08010B |
|||
|
D03510 |
35x35x10mm(1.37"x1.37"x0.39") |
D08015 |
80x80x15mm(3.15"x3.15"x0.59") |
||
|
D04007 |
40x40x7mm(1.57"x1.57"x0.27") |
D08020 |
80x80x20mm(3.15"x3.15"x0.78") |
||
|
D04010A |
40x40x10mm(1.57"x1.57"x0.39") |
D08025A |
80x80x25mm(3.15"x3.15"x0.98") |
||
|
D04010B |
D08025B |
||||
|
D04010C |
D08025C |
||||
|
D04015 |
40x40x15mm(1.57"x1.57"x0.59") |
D08038 |
80x80x38mm(3.15"x3.15"x1.5") |
||
|
D04020 |
40x40x20mm(1.57"x1.57"x0.78") |
D09025A |
92x92x25mm(3.62"x3.62"x0.98") |
||
|
D04028 |
40x40x28mm(1.57"x1.57"x1.10") |
D09025B |
|||
|
D05010A |
50x50x10mm(1.96"x1.96"x0.39") |
D09025C |
|||
|
D05010B |
50x50x15mm(1.96"x1.96"x0.59") |
D09232 |
92x92x32mm(3.62"x3.62"x1.26") |
||
|
D05015 |
50x50x15mm(1.96"x1.96"x0.59") |
D09238 |
92x92x38mm(3.62"x3.62"x1.5") |
||
|
D05020 |
50x50x20mm(1.96"x1.96"x0.78") |
D11335 |
113x113x35mm(4.46"x4.46"x1.38") |
||
|
D05025 |
50x50x25mm(1.96"x1.96"x0.98") |
D12025A |
120x120x25mm(4.72"x4.72"x0.98") |
||
|
D06010 |
60x60x10mm(2.36"x2.36"x0.39") |
D12025C |
|||
|
D06015 |
60x60x15mm(2.36"x2.36"x0.59") |
D12038 |
120x120x38mm(4.72"x4.72"x1.5") |
||
|
D06020 |
60x60x20mm(2.36"x2.36"x0.78") |
D12539 |
125x125x39mm(4.93"x4.93"x1.54") |
||
|
D06025 |
60x60x25mm(2.36"x2.36"x0.98") |
D13538 |
135x135x38mm(5.31"x5.31"x1.49") |
Application
The axial fan used in household appliances, welding machines, instrumentation, cabinets, ovens, humidifiers, refrigerator systems, dryers and other equipment.
Quality Control
CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.
In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.
Customers
Over the years, we have been with many well-known brands to achieve friendly cooperation.
Sincerely thank our customers for their trust and support.
Certifications
All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
