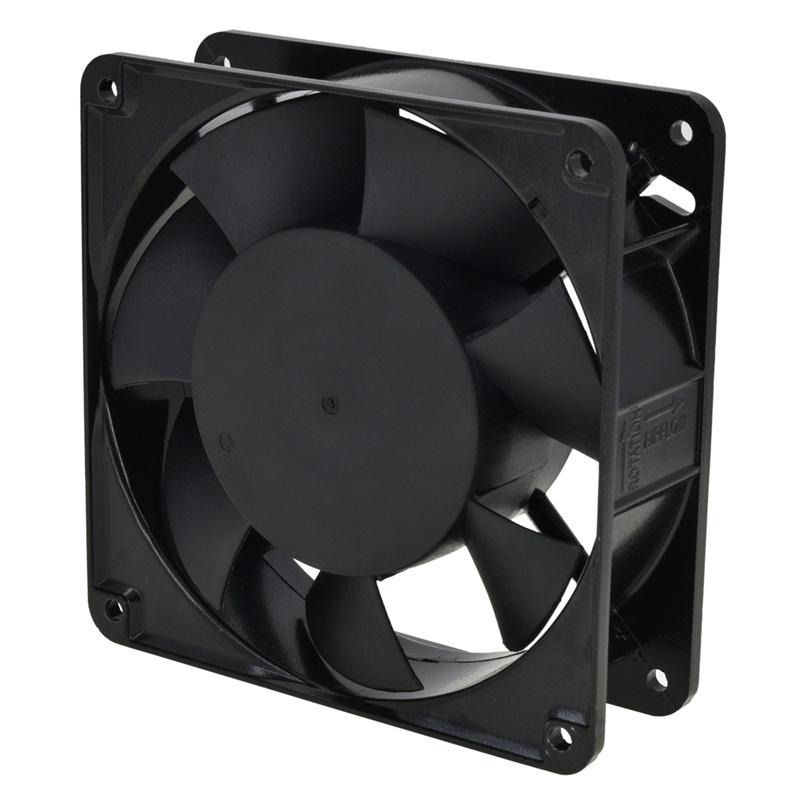

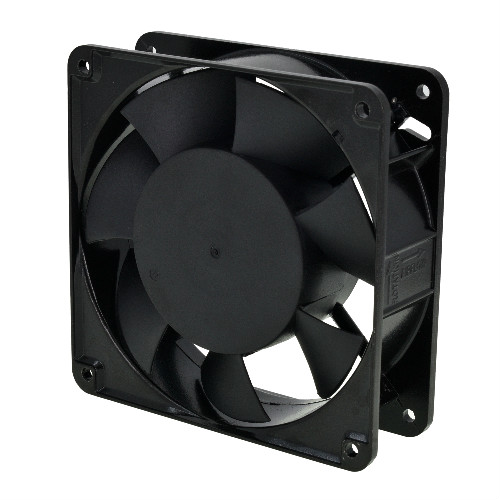

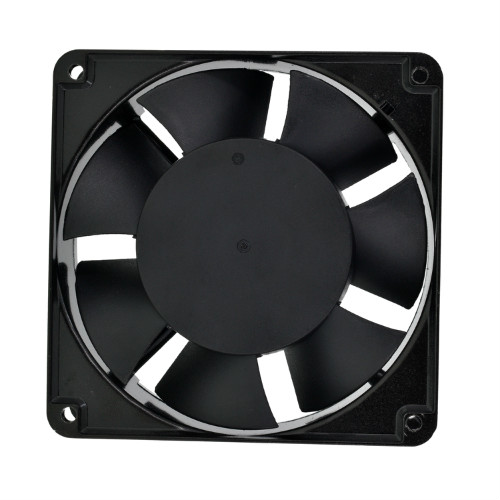

High Performance Air Cooler Refrigerator Axial Fan 120x120x38mm

Higher airflow / Lower noise: Updated blade and motor designs allow this to put out 74.98 cubic feet per minute with a noise level of 42db.  AC axial cooling fans are widely used in household equipment and ventilation appliances.

  • Item NO.:

    A12038B
  • Order(MOQ):

    1000
  • Payment:

    T/T, L/C, Paypal, Western Union
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Shenzhen
  • Lead Time:

    20 working days
  • Weight:

    470g
  • Product Detail

120 x 120 x 38mm Axial Cooling Fan for Cabinet Ventilation. It's an excellent choice to maintain just the right amount of cooling for these components.



Our advantage

Company Size: Chungfo Electronics Company is an enterprise with an advanced factory building of 10,000 square meters, with its own workshops, laboratories and warehouses to ensure that we can meet customer needs and maintain efficient operations.




About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

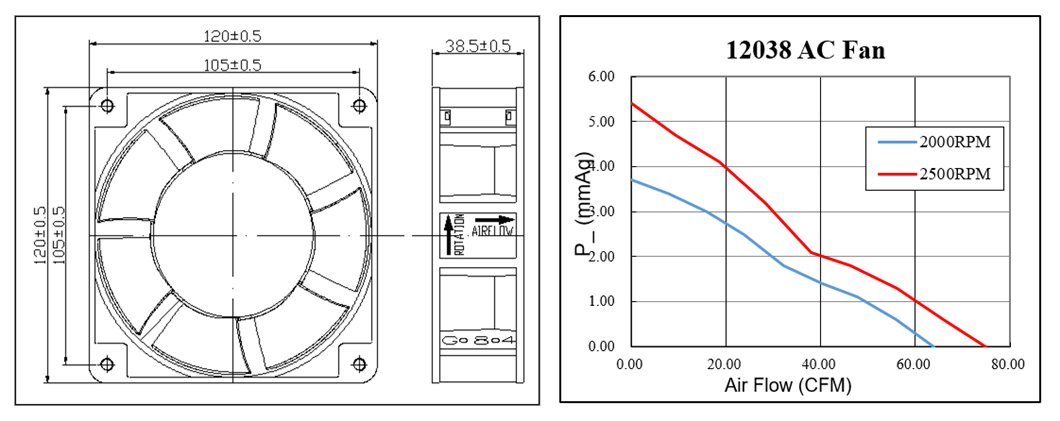

  • Dimension of outer the frame is 120 mm(L) x 120 mm(W) x 38 mm(H) / The size of fan in inch is 4.72 in(L) x 4.72 in(W) x 1.49 in(H); The center to center distance beween the mountiong holes is 105.0 ± 0.5 mm / 4.13 in.

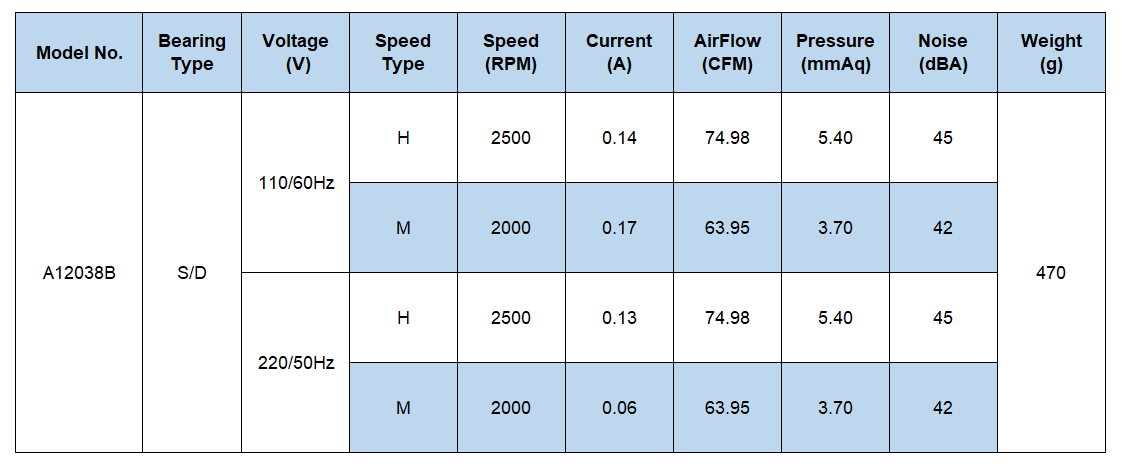

  • Operating Voltage Range: AC 110/60Hz; 220/50Hz | Current: 0.06 ~ 0.17 Amp | Speed: 2000 ~ 2500 RPM | Airflow: 63.95 ~ 74.98 CFM |Noise: 42 ~ 45 dBA | Pressure: 3.70 ~ 5.40 mmAq.
  • High Speed: This model is designed to maximize airflow and can be too loud for some applications.
  • Lead wire: (+): Red wire ; (-): Black wire. Bearing Type:Sleeve Bearing / Double Ball Bearing ; Life: working up to 50,000h at 25 degrees.
  • Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

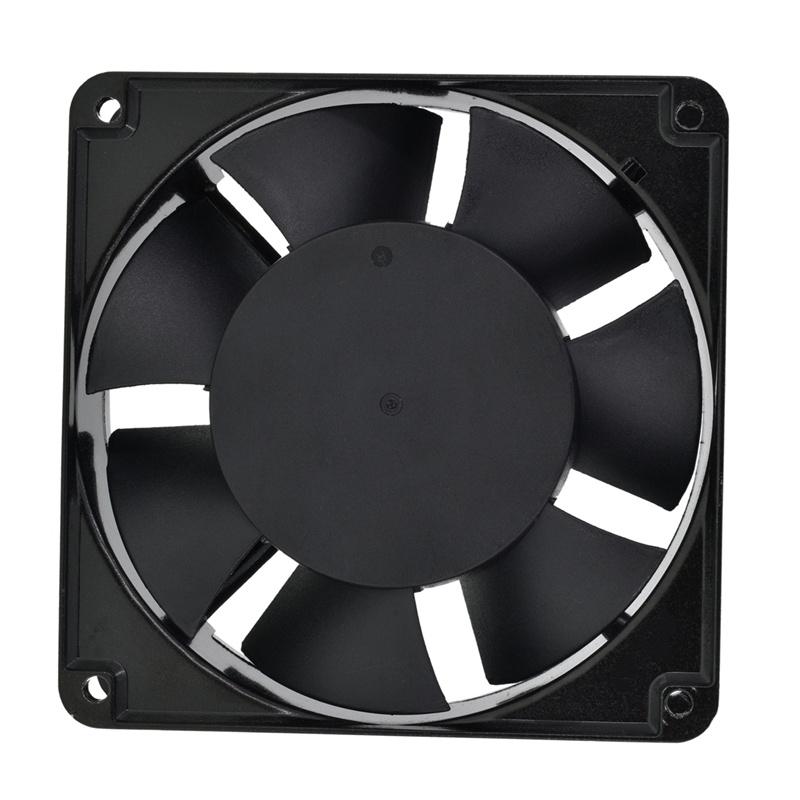

AC AXIAL FAN 120x120x38mm(4.72"x4.72"x1.49")




ac cabinet ventilation axial flow cooling fanhigh cfm metal ac cooling fan


General Specification:
Frame: Aluminum Alloy
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing


Ball Bearing Cooling Fan 110V 220V

    high pressure ac cooling fan

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.



Feature

  • Designed for projects that requires cooling or ventilation;
  • Standard AC axial cooling fans with a square housing;
  • Large air valume adopting high precision double ball bearing;
  • 7 fan blades provides minimal air resistance to boost overall airflow;
  • The product supports full-size parameter setting, can provide high standard quality of fans to our customers.



More Models

These fans are available in several sizes to accommodate diverse applications — such as those found in tight spaces or difficult to reach areas.

Type

Model

Size

Type

Model

Size

AC Axial Fan

A08025

80x80x25mm(3.15"x3.15"x0.98")

AC Axial Fan

A13538

135x135x38mm(5.31"x5.31"x1.49")

A09225

92x92x25mm(3.62"x3.62"x0.98")

A15050

150x150x50mm(5.90"x5.90"x1.97")

A11025

110x110x25mm(4.33"x4.33"x0.98")

A17051A

170x150x51mm(6.69"x5.90"x2.0")

A12025A

120x120x25mm(4.72"x4.72"x0.98")

A17051B

A12025B

A18060

180x180x60mm(7.08"x7.08"x2.36")

A12038A

120x120x38mm(4.72"x4.72"x1.49")

A20060

200x200x60mm(7.87"x7.87"x2.36")

A12038B

A22060

220x220x60mm(8.65"x8.65"x2.36")



Application

DC/AC axial fans wide range of applications: Stage lighting, VR equipment, Intelligent Manicure machine, Projector, High-speed camera, Automotive industry, Cabinet industry, Power industry, UAV application, LED lighting industry, Hand held air detector, Charging machine.

Low Noise 110V 220V Exhaust Fan


AC Cooling Fan with CE Certificate

  • Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven, Outdoor telecom cabinet cooling systems, and more.
  • Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.

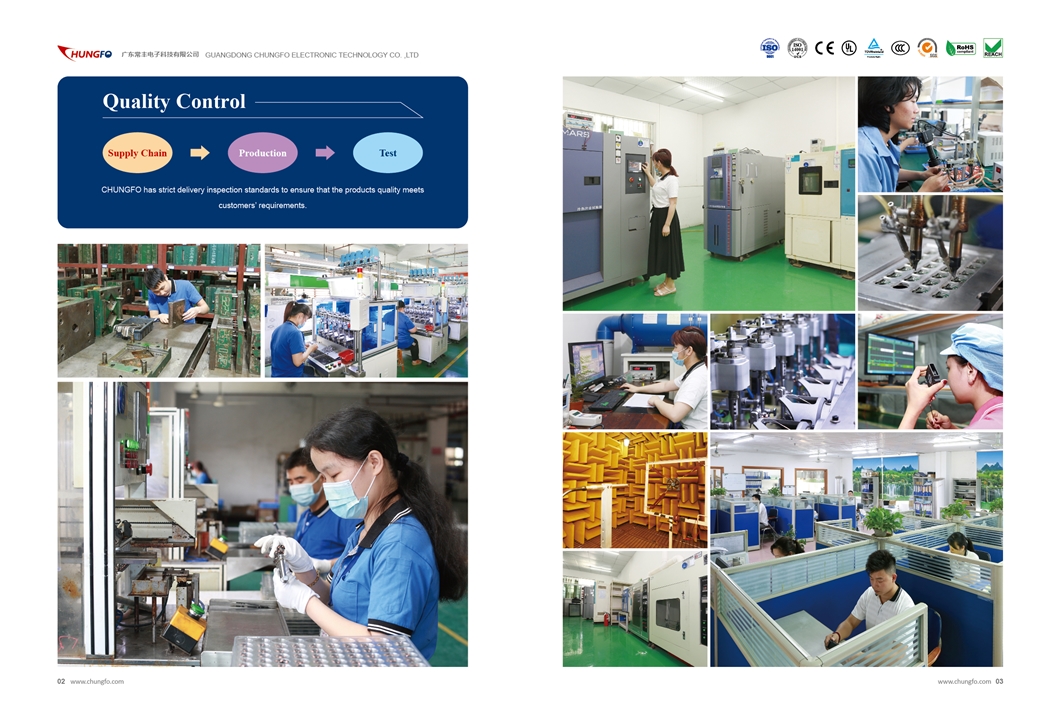

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.



Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.





Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.




 Long Life Cycle / Low Noise / High Efficiency;

Strict Waterproof & Dustproof Test;

CHUNGFO, the best choice for your cooling needs!




Want to know about this product?

SEND A MESSAGE
Leave A Message

We value your support very much, please fill out the inquiry box below and you will have the opportunity to receive free samples and professional services.

Related Products
Metal Exhaust Axial Fan for Wine Cabinet Ventilation exhaust ventilation axial fan
Long service life axial fan used in household appliances, welding machines, instrumentation, cabinets, ovens, humidifiers, refrigerator systems, dryers and other equipment.
ReadMore+

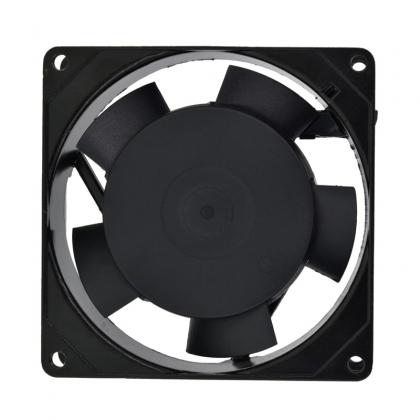

92x92x25mm Metal AC Brushless Cooling 110V/220V Axial Fan ac axial cooling fan
Each fan is constructed of die-cast aluminum and suitable for various environments. Thermoplastic impeller has high flammability resistance that the fans are durable enough to properly operate in the most corrosive and erosive environments.
ReadMore+

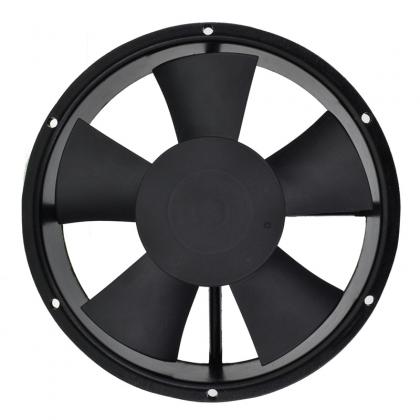

Round Housing Axial Fan for Air Ventilation 220/50Hz axial cooling fan 110v
Standard round axial fans are used in dry locations to cool equipment within an enclosure. These equipment-cooling fans have a round housing that fits into a circular cutout for installation.
ReadMore+

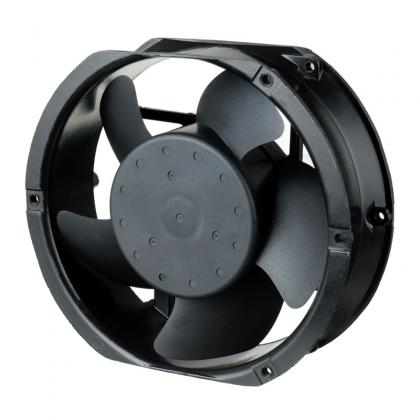

Powerful Ventilation System 2500rpm Axial Radiator Fan low noise axial fan
The standard AC fan is energy efficient  can be connected directly to a DC power source. Size of this fan is 172mm x 150mm x 51mm, as the big size , it can offer you 187.93 CFM big airfllow.
ReadMore+

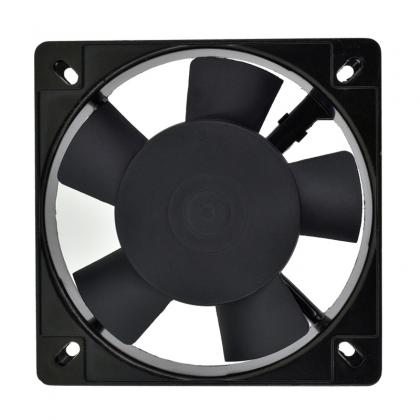

110mm Aluminum Silent Ventilation Axial Exhaust Fan exhaust ventilation axial fan
Square compact axial fans have a square-shaped housing that can span a round cutout or fit into a square cutout for cooling equipment within an enclosure. Each item will be tested carefully and packed tightly before shipping out; certified by CE, UL, and RoHS.
ReadMore+

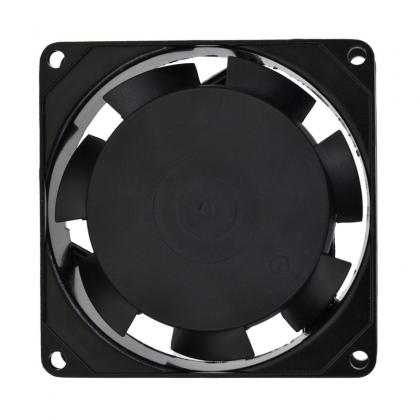

Electrical AC Brushless 110V 220V Axial Cooling Fan 80mm cooling fan
The high speed 80x80x25mm 110V/220V AC axial fan is housed in aluminum ally, a sturdy and durable heavey duty metal frame, with thermoplastic blades. It's designed for projects that require cooling or ventilation. The fan can operate stably at -40 ℃ ~ +70 ℃.
ReadMore+
Wholesale AC Ventilator Axial Cooling Fan for Welding Machine Supplier ac ventilation fan
Size of the the fan is 120mm x 120mm x 38mm, as the big size, it can offer you 77.49 CFM big airfllow. Universal axial cooling fans are suitable for multiple applications, including freezer, fridges, wine cabinet and refrigeration equipment, welding machine, etc.
ReadMore+

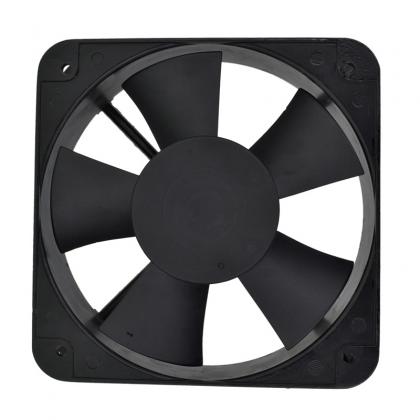

Waterproof Air Purifier Cooling Fan with Auto Restart 200mm exhaust fan
