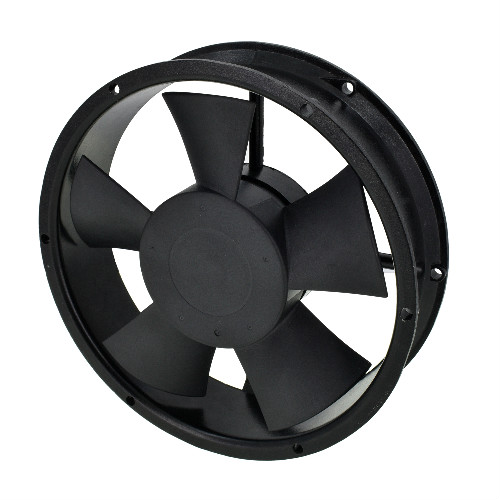

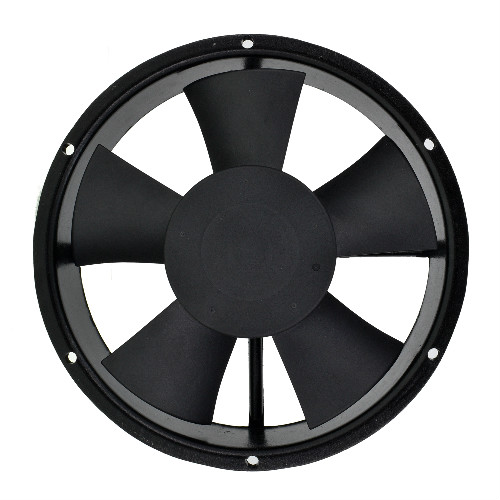

Round Housing Axial Fan for Air Ventilation 220/50Hz

Standard round axial fans are used in dry locations to cool equipment within an enclosure. These equipment-cooling fans have a round housing that fits into a circular cutout for installation.

  • Item NO.:

    A22060
  • Order(MOQ):

    1000
  • Payment:

    T/T, L/C, Paypal, Western Union
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Shenzhen
  • Lead Time:

    20 working days
  • Weight:

    1580g
  • Product Detail


Waterproof 220V Brushless AC Axial Flow Fan. The ventilation fan adopts sleeve/ball bearing, can be work very quiet and silent, life expectancy at up to 50,000hrs at 25℃.


About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
  • Dimension of outer the frame is 220 mm(L) x 220 mm(W) x 60 mm(H) / The size of fan in inch is 8.65 in(L) x 8.65 in(W) x 2.36 in(H); The center to center distance beween the mountiong holes is 220.0 ± 1.0 mm / 8.65 in.

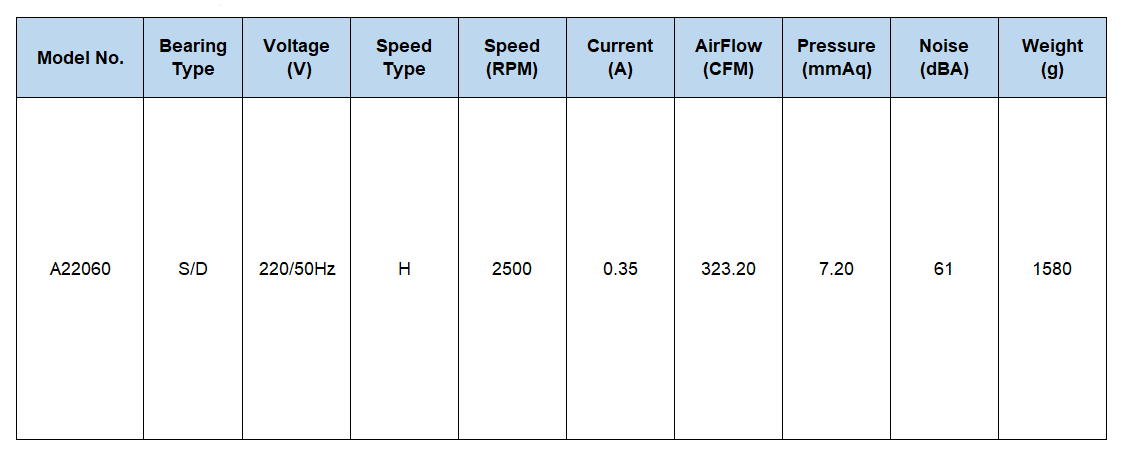

  • Operating Voltage Range: AC 220/50Hz | Current: 0.35 Amp | Speed: 2500 RPM | Airflow: 323.20 CFM | Noise: 61 dBA | Pressure: 7.20 mmAq.
  • High Speed: This model is designed to maximize airflow and can be too loud for some applications.
  • Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing ; Life: working up to 50,000h at 25 degrees.
  • Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

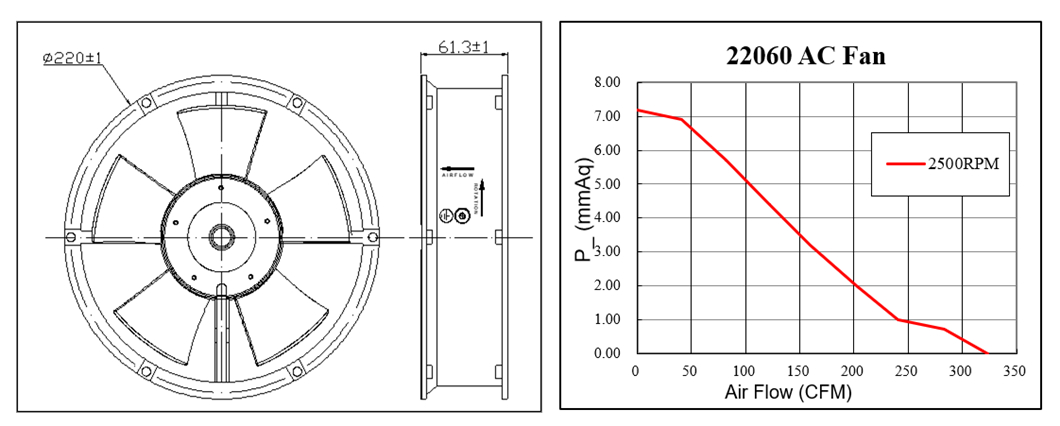

AC AXIAL FAN 220x220x60mm(8.65"x8.65"x2.36")




220x220x60mm ball bearing cooling fan 220v metal ac cooling fan 22060



General Specification:

Frame: Aluminum Alloy

Impeller: PBT(Black)UL94V-0

Operating Temperature: -10ºC~70ºC

Motor Protection: Auto Restart or Polarity Protection

Insulation Resistance: 20MΩ or over with a DC500V Megger

Dielectric Withstand Voltage: AC500V 1s

Bearing Type: Sleeve Bearing or Ball bearing

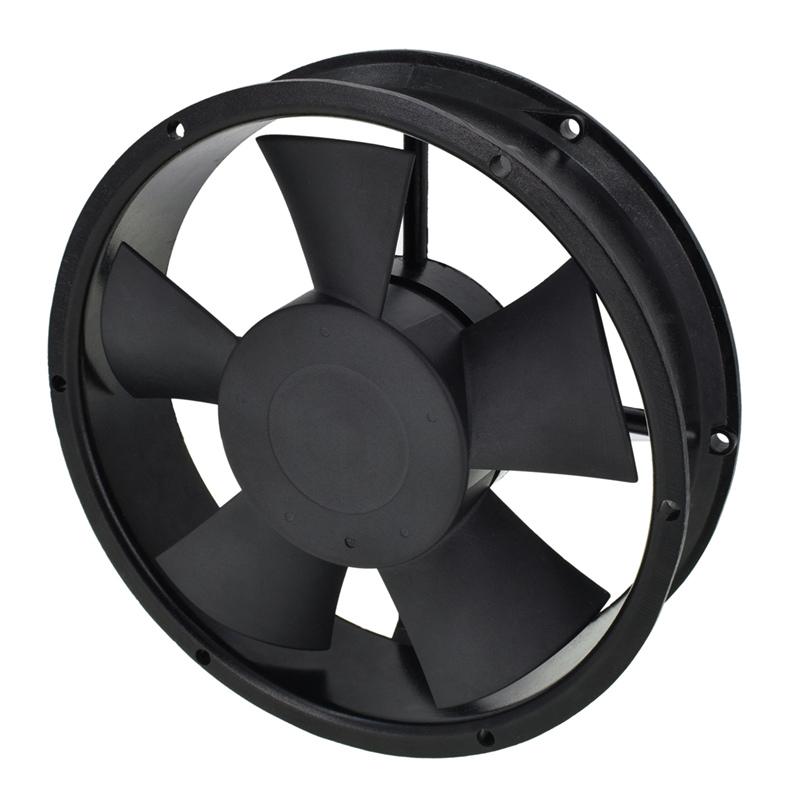

Dustproof Exhaust 2500RPM AC Cooling Fan

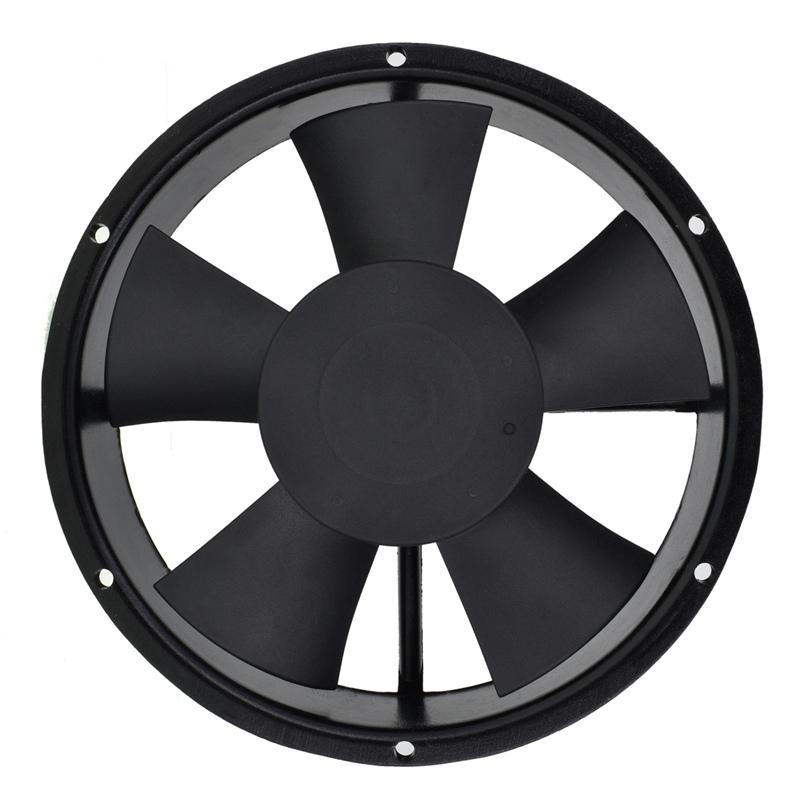

    220V Axial Motor Cooling AC Fan

·All reading are typical values at rated voltage.

·Parameters can be set according to customer requirements.



Feature

  • Has passed CE, UL and RoHS certification;
  • Adopt the AC motor will not be overloaded when it exceeds its capacity;
  • Double ball bearings rated at 67,000 hours allows the fans to be laid flat or stand upright;
  • The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation.
  • CHUNGFO, the best choice for your cooling needs!



More Models

These fans are available in several sizes to accommodate diverse applications—such as those found in tight spaces or difficult to reach areas.

Type Model Size Type Model Size
AC Axial Fan A08025 80x80x25mm(3.15"x3.15"x0.98") AC Axial Fan A13538 135x135x38mm(5.31"x5.31"x1.49")
A09225 92x92x25mm(3.62"x3.62"x0.98") A15050 150x150x50mm(5.90"x5.90"x1.97")
A11025 110x110x25mm(4.33"x4.33"x0.98") A17051A 170x150x51mm(6.69"x5.90"x2.0")
A12025A 120x120x25mm(4.72"x4.72"x0.98") A17051B
A12025B A18060 180x180x60mm(7.08"x7.08"x2.36")
A12038A 120x120x38mm(4.72"x4.72"x1.49") A20060 200x200x60mm(7.87"x7.87"x2.36")
A12038B A22060 220x220x60mm(8.65"x8.65"x2.36")


Application


DC/AC axial fans have been widely used in various electronic products, machinery and equipment, power supplies, purification, stage lighting, automotive, refrigeration and heat transfer , beauty equipment, sports equipment, LED lighting, stage lighting equipment, ect.

CE approved ac exhaust axial fan


Industrial Electric Ventilation AC Fan

  • Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven, Outdoor telecom cabinet cooling systems, and more.
  • Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.



Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.



Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
