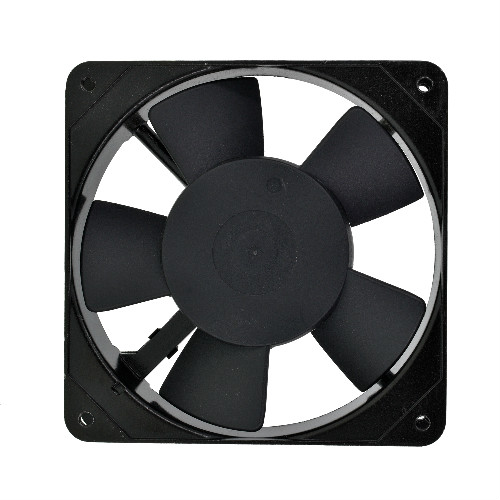

120X120X25mm Freezer Cooling Exhaust AC Brushless Axial Fan

The axial fans are available in several sizes to accommodate diverse applications, such as those found in tight spaces or difficult to reach areas. They are often used for cooling cabinet refrigerator,wine cabinet.

  • Item NO.:

    A12025A
  • Order(MOQ):

    1000
  • Payment:

    T/T, L/C, Paypal, Western Union
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Shenzhen
  • Lead Time:

    20 working days
  • Weight:

    280g
  • Product Detail


120mm x 120mm x 25mm, AC 2200 RPM Brushless Axial Fan. This size axial fans are available in several parameters to accommodate diverse to meet customer requirements.


Our advantage


Our team consists of a group of creative and experienced designers who provide innovative packaging design and personalized customization services to our customers.


About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

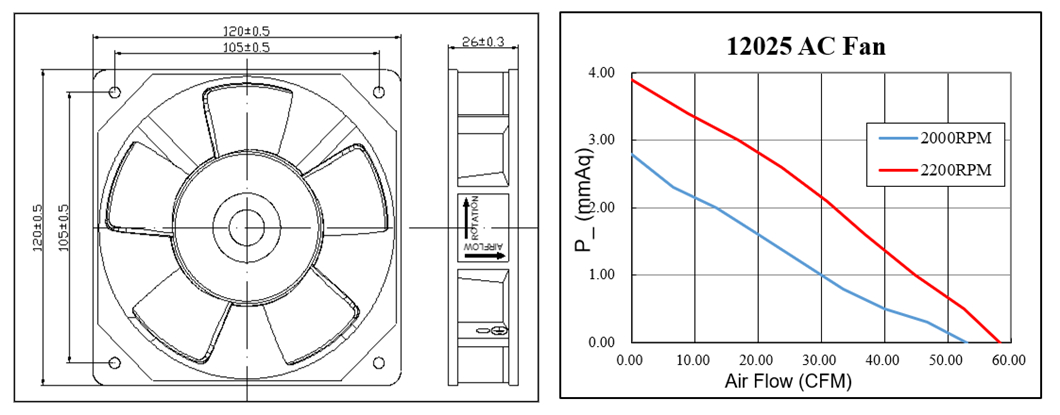

  • Dimension of outer the frame is 120 mm(L) x 120 mm(W) x 25 mm(H) / The size of fan in inch is 4.72 in(L) x 4.72 in(W) x 0.98 in(H); The center to center distance beween the mountiong holes is 105.0 ± 0.5 mm / 4.13 in.

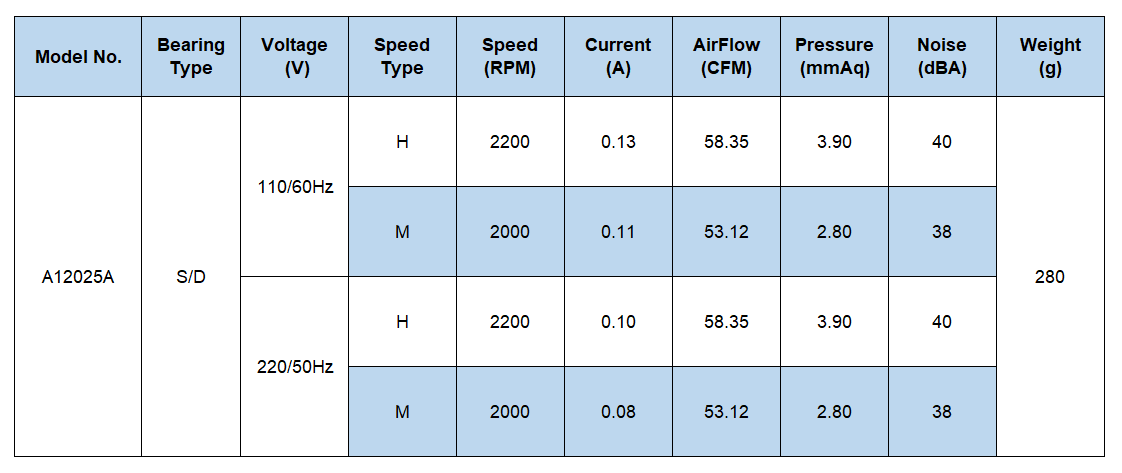

  • Operating Voltage Range: AC 110/60Hz; 220/50Hz | Current: 0.08 ~ 0.13 Amp | Speed: 2000 ~ 2200 RPM | Airflow: 53.12 ~ 58.35 CFM | Noise: 38 ~40 dBA | Pressure: 2.8 ~ 3.9 mmAq.
  • High Speed: This model is designed to maximize airflow and can be too loud for some applications.
  • Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing ; Life: working up to 50000h at 25 degrees.
  • Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

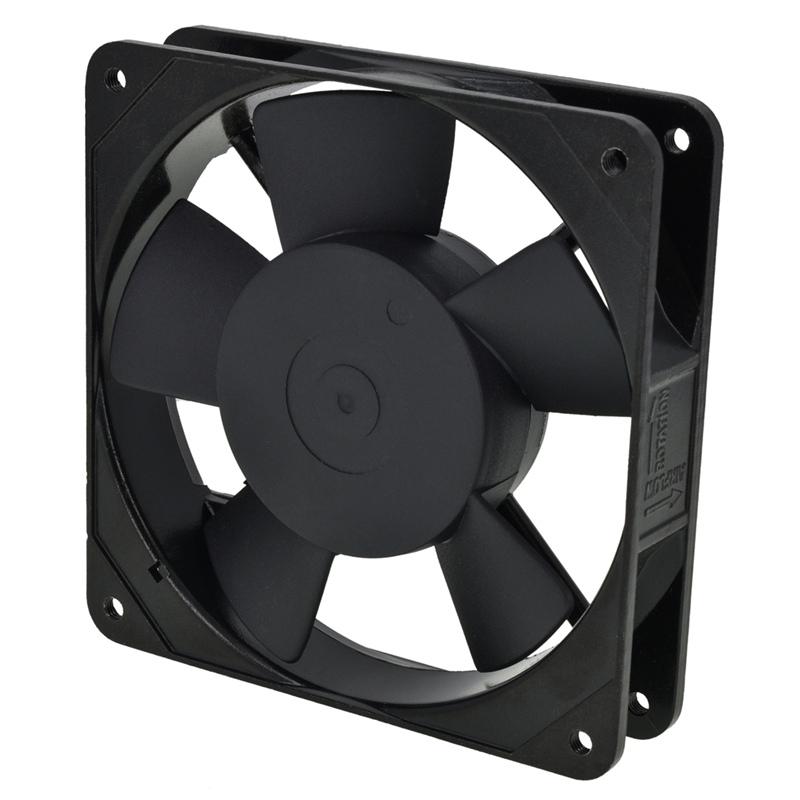

AC AXIAL FAN 120x120x25mm(4.72"x4.72"x0.98")

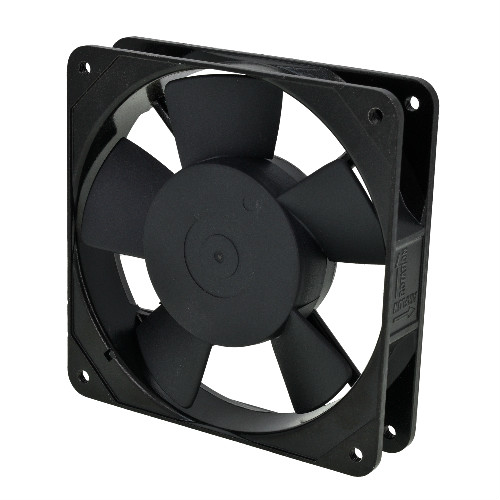

12025 AC Industrial Axial Flow Fan square metal axial air cooling fan


General Specification:
Frame: Aluminum Alloy
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

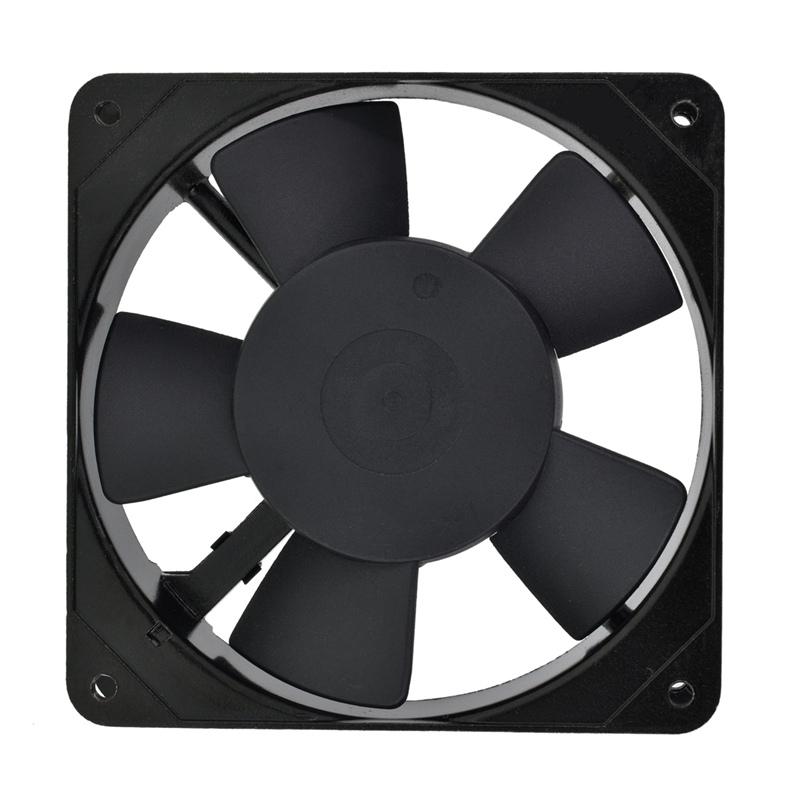

Low Noise Axial Industrial Cooling Fan

     AC Cooling Air Circulation Fan

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.



Feature

  • High speed, low noise, brushless axial fan adopts AC motor;
  • Double ball bearing system has a lifespan of 50,000 hours;
  • Can work normally in the low temperature environment of -10℃~70℃;
  • Feature aluminum construction frame with thermoplastic impeller for harsh environments;
  • The coil of our cooling fan motors is made by F class 100% copper wire which bring longer lifetime to our fans.



More Models

These fans are available in several sizes to accommodate diverse applications—such as those found in tight spaces or difficult to reach areas.

Type Model Size Type Model Size
AC Axial Fan A08025 80x80x25mm(3.15"x3.15"x0.98") AC Axial Fan A13538 135x135x38mm(5.31"x5.31"x1.49")
A09225 92x92x25mm(3.62"x3.62"x0.98") A15050 150x150x50mm(5.90"x5.90"x1.97")
A11025 110x110x25mm(4.33"x4.33"x0.98") A17051A 170x150x51mm(6.69"x5.90"x2.0")
A12025A 120x120x25mm(4.72"x4.72"x0.98") A17051B
A12025B A18060 180x180x60mm(7.08"x7.08"x2.36")
A12038A 120x120x38mm(4.72"x4.72"x1.49") A20060 200x200x60mm(7.87"x7.87"x2.36")
A12038B A22060 220x220x60mm(8.65"x8.65"x2.36")



Application

DC/AC axial fans are commonly used in household appliances,  office equipments, home theater equipments, power system and vehicle system, ect.

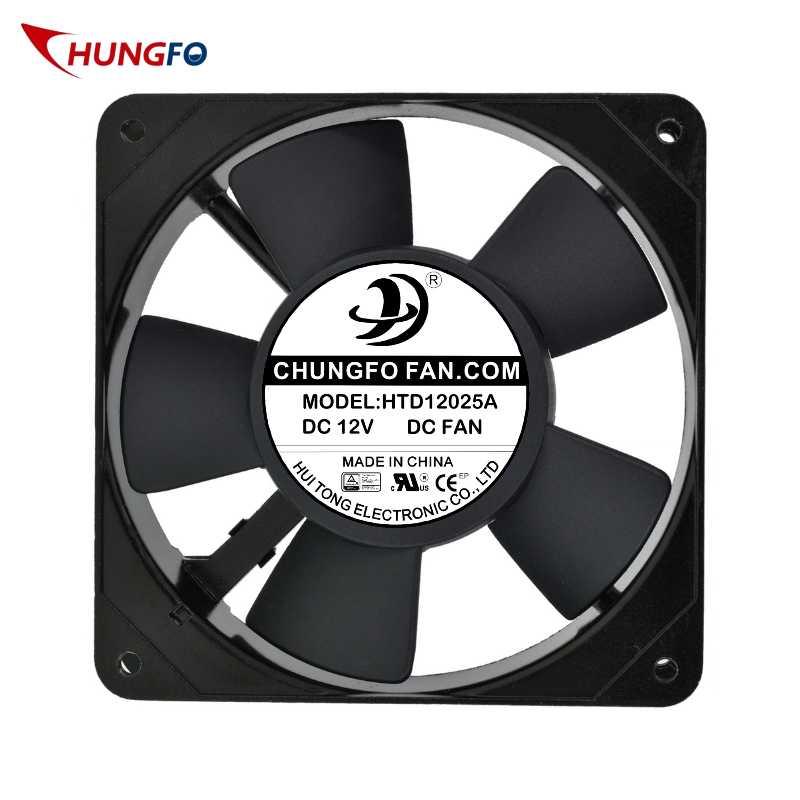

Silent Fan Brushless Cooling Fan


12025 Welding Machine Case Cooling Fan

  • Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven ,Outdoor telecom cabinet cooling systems, and more.
  • Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.



Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.



Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
