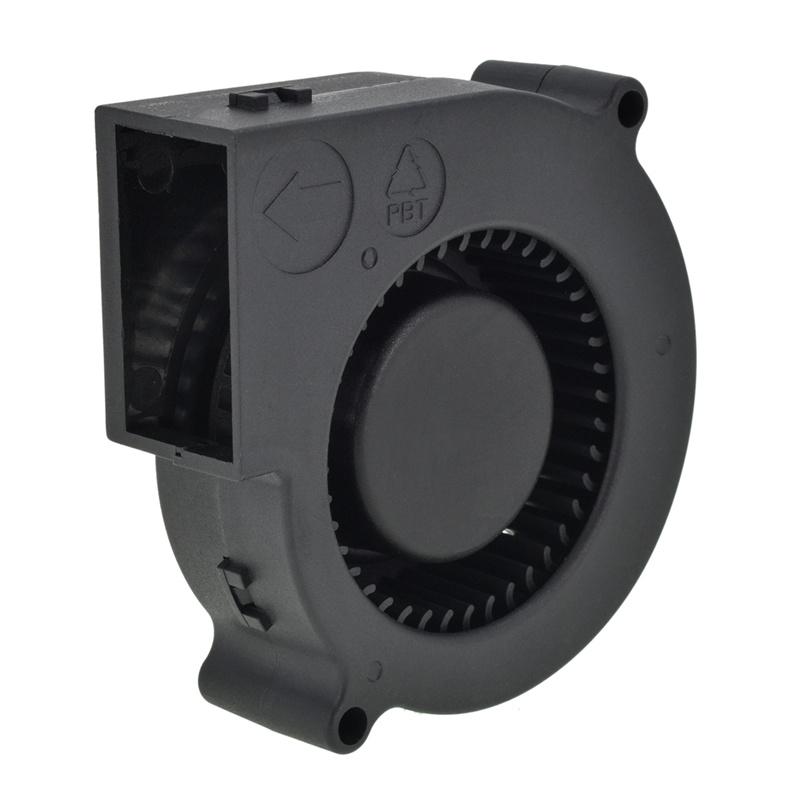

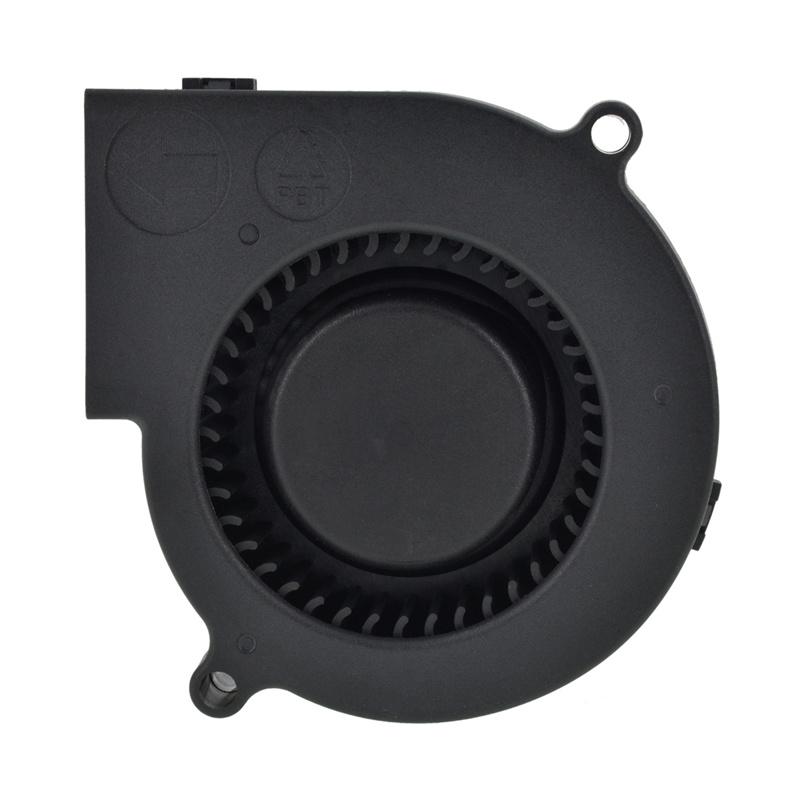

DC Motor Sleeve/Ball Bearing Air Radiator Fan Blower

CHUNGFO' innovative compact blowers include standard designs that are all uniquely engineered for high quality, value, and performance meeting the needs of today's demanding applications.

  • Item NO.:

    C07525
  • Order(MOQ):

    1000
  • Payment:

    T/T, L/C, Paypal, Western Union
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Shenzhen
  • Lead Time:

    20 working days
  • Weight:

    65g
  • Product Detail


Energy Saving Air Cooling System Centrifugal Blower Fan with DC Motor. Lightweight and compact design allows installation in tight fitting spaces.


Our advantage


Because we are a manufacturer, we eliminate the channels and costs of middlemen, and directly sell products from the production plant to the end user, reducing the markup of distributors, agents and other links, so the price is relatively more cost-effective.


About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

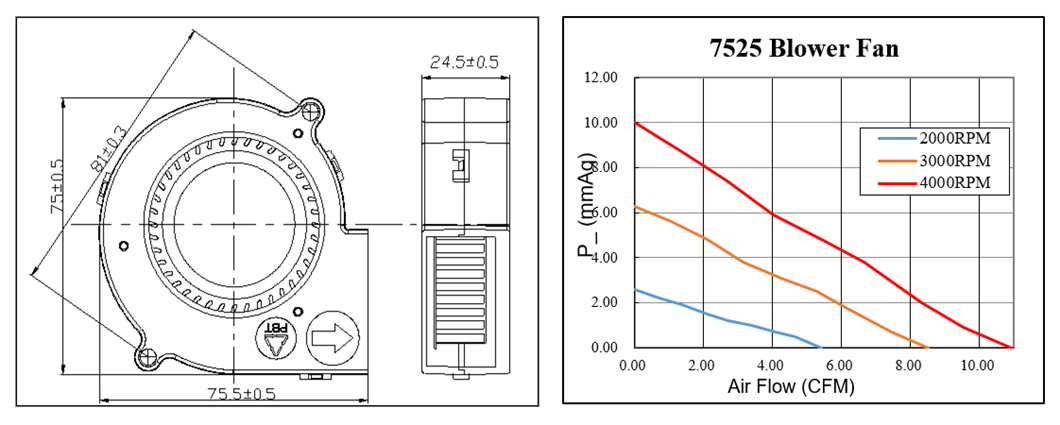

  • Dimension of outer the frame is 75 mm(L) x 75 mm(W) x 25 mm(H) / The size of fan in inch is 2.95 in(L) x 2.95 in(W) x 0.98 in(H); The center to center distance beween the mountiong holes is 81.0 ± 0.3 mm / 3.18 in.

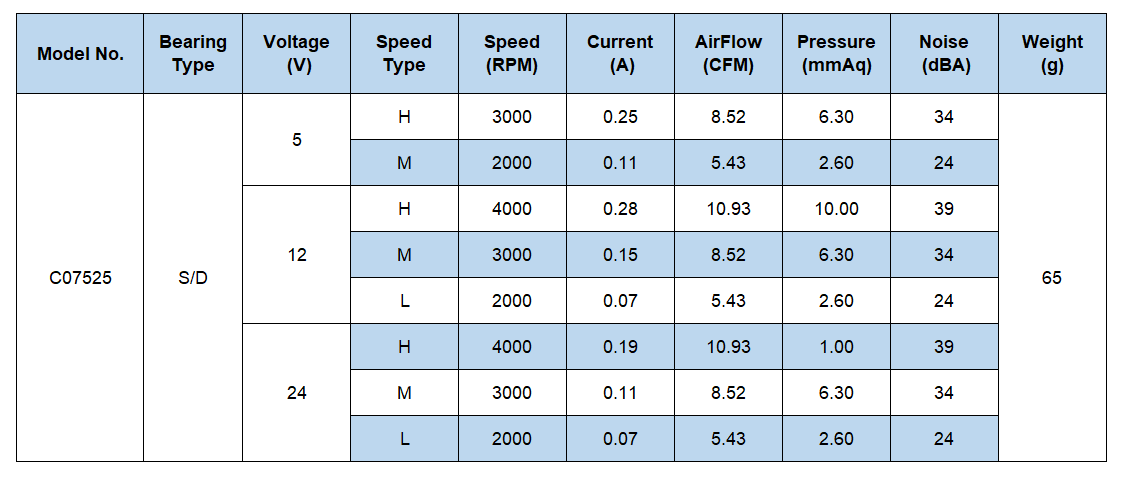

  • Operating Voltage Range: DC 5V/12V/24V | Current: 0.07 ~ 0.28 Amp | Speed: 2000 ~ 4000 RPM | Airflow: 5.43 ~ 10.93 CFM | Noise: 24 ~ 39 dBA | Pressure: 1.00 ~ 10.00 mmAq.
  • High Speed: This model is designed to maximize airflow and can be too loud for some applications.
  • Lead wire: (+): Red wire ; (-): Black wire. Bearing Type:Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
  • Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

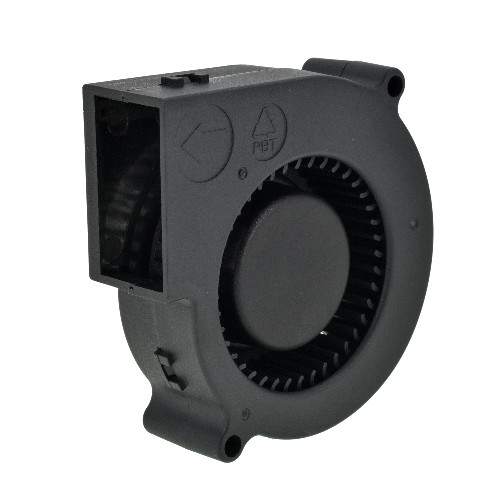

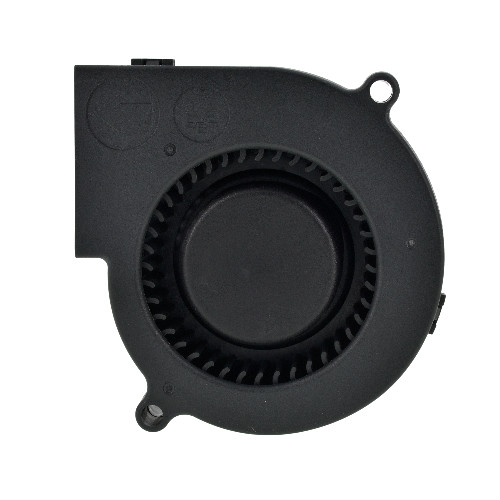

DC BLOWER FAN 75x75x25mm(2.95"x2.95"x0.98")


 75x75x25mm silent dc blower fan long life centrifugal dc blower


General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection:  Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing


low noise 75mm dc blower fan

    5v 12v 24v high speed centrifugal blower

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.



Feature

  • Good running stability and corrosion resistance;
  • It can be first choice when you need a fan replacment;
  • PBT frame and blades, not easy to deform and break, long service life;
  • Size of the fan is 75mm x 75mm x 25mm, it can offer you 10.93 CFM big airflow;
  • Ball bearings design icreasing the fan’s operation stability and life span, more than 50,000 hours of operation.



More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Type Model Size Type Model Size
DC Blower C04020 40x40x20mm(1.57"x1.57"x0.78") DC Blower C06015B 60x60x15mm(2.36"x2.36"x0.59")
C05015 50x50x15mm(1.96"x1.96"x0.59") C07525 75x75x25mm(2.95"x2.95"x0.98")
C05025 50x50x25mm(1.97"x1.97"x0.98") C07530 75x75x30mm(2.95"x2.95"x1.18")
C05828 58x58x28mm(2.28"x2.28"x1.10") C09733 97x97x33mm(3.91"x3.91"x1.30")
C06015A 60x60x15mm(2.36"x2.36"x0.59") C12032 120x120x32mm(4.72"x4.72"x1.26")



Application

DC blower fans have been widely used in various electronic products, machinery and equipment, medical treatment, purification, automotive, beauty equipment, LED lighting, and other industries.

Centrifugal Blower Fan with DC Motor

  • Customized projects related to Medical equipment, Air purifiers, 3D printers, cooling, ventilation and heat dissipation systems, and more.
  • Create a cooling system to keep the home appliances system, office equipments and other electronic equipments running at the ideal temperature and the optimal speed.



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.




Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.



Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.







Want to know about this product?

SEND A MESSAGE
Leave A Message

We value your support very much, please fill out the inquiry box below and you will have the opportunity to receive free samples and professional services.

Related Products

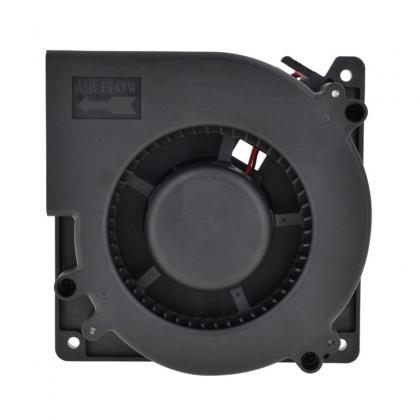

BLDC Centrifugal Exhaust Fan Blower with Fg/Rd/PWM centrifugal blower fan
DC brushless Centrifugal blower has high performance. The fan housing and blades are made of durable PBT material, which is one-time injection molding, not easy to deform and break, with high tenacity and good heat resistance.
ReadMore+

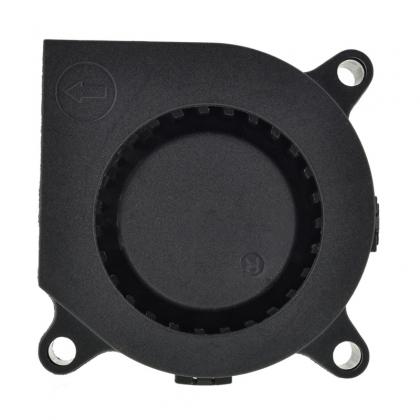

40x40x20mm Centrifugal Fan Air Cooler Electric Blower mini air blower
These small fans have good cooling cool-to-cool properties, because they produce high airflow.  Due to the compact design, they can easily be accommodated in various devices.
ReadMore+

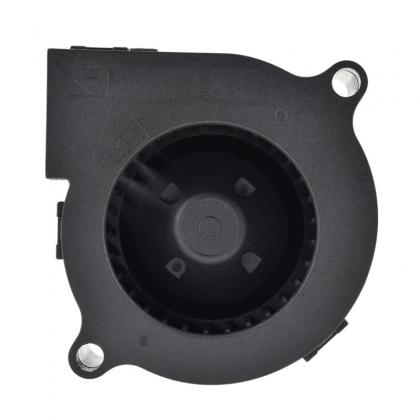

5V/12V/24V DC Brushless Cooling Electric Blower Centrifugal Fan 50x50x15mm blower fan
PBT fan outer frame, corrosion resistance, stable, durable, not easy to break. High speed centrifugal blower is excellent suitable for cooling heatsinks on hot ends, prints, or other cooling needs.
ReadMore+
Heat Gun Air Radiator Ventilation Centrifugal Blower small air blower
Small size and light weight but can generate a decent air flow output. Centrifugal brushless ball bearing radiator blower fan is made for cooling and ventilating solution with long life expectancy.
ReadMore+

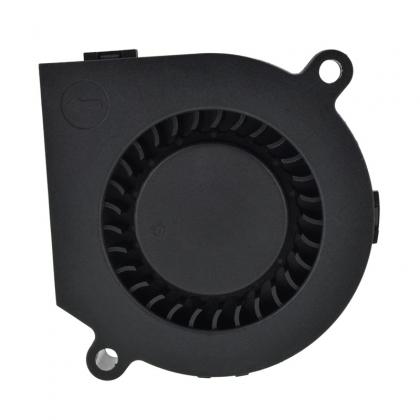

5V/12V/24V DC Centrifugal Ventilator Exhaust Blower Turbo Fan dc centrifugal fan
Double ball bearings design, PBT housing and blade ensures a wide operation temperature ranged from -10℃ to +70℃. It's approved by UL/CE, as well as in compliance with RoHS requirement.
ReadMore+
Lower Noise Air Cooling System Fan Centrifugal Blower best electric blower
High rotation speed with low noise. Great cooler for hot ends, extruder, prints & other parts on 3D printer. Additional features that can be added are Auto Start, Rotation Detector, Tachometer Output, and more.
ReadMore+
Refrigerator Air Purifier Exhaust Fan Ventilation Blower 12v blower fan
Outstanding airflow performance with low static pressure. The air volume of centrifugal ventilation blower is 1.5-3 times higher than that of the same conventional blower, which is suitable for refrigerator deodorizer.
ReadMore+

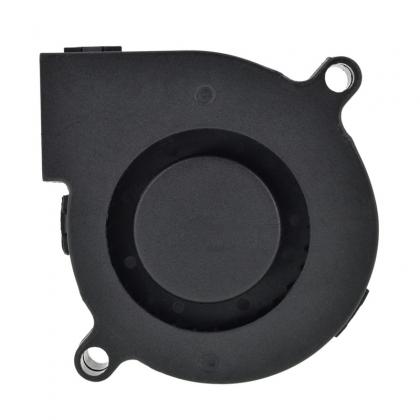

60mm Centrifugal Fan CE/UL Approved Exhaust Blower industrial air blower
