Refrigerator Air Purifier Exhaust Fan Ventilation Blower

Outstanding airflow performance with low static pressure. The air volume of centrifugal ventilation blower is 1.5-3 times higher than that of the same conventional blower, which is suitable for refrigerator deodorizer.

  • Item NO.:

    C06015A
  • Order(MOQ):

    1000
  • Payment:

    T/T, L/C, Paypal, Western Union
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Shenzhen
  • Lead Time:

    20 working days
  • Weight:

    40g
  • Product Detail

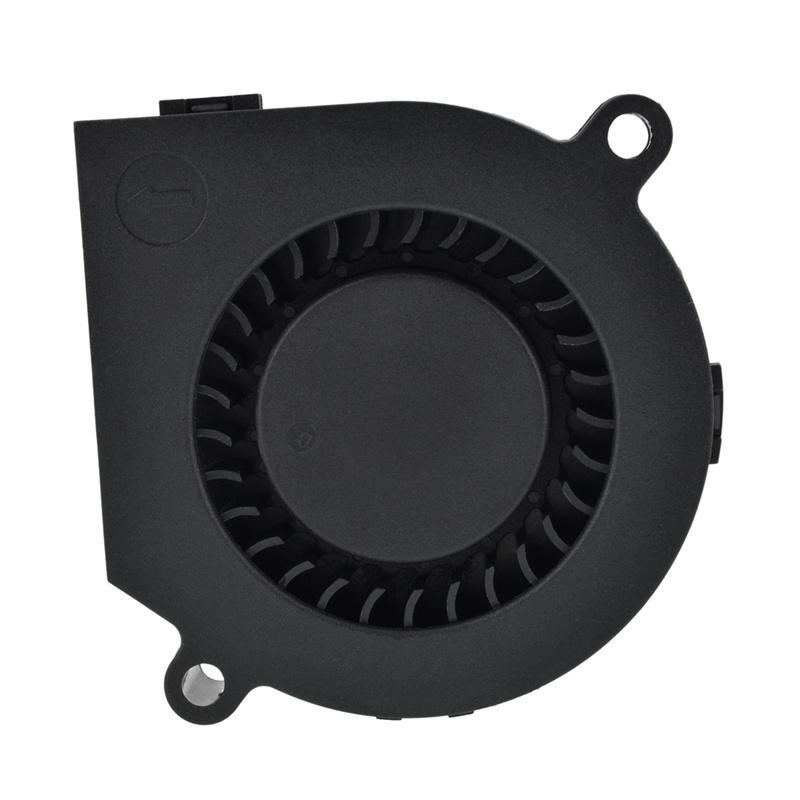

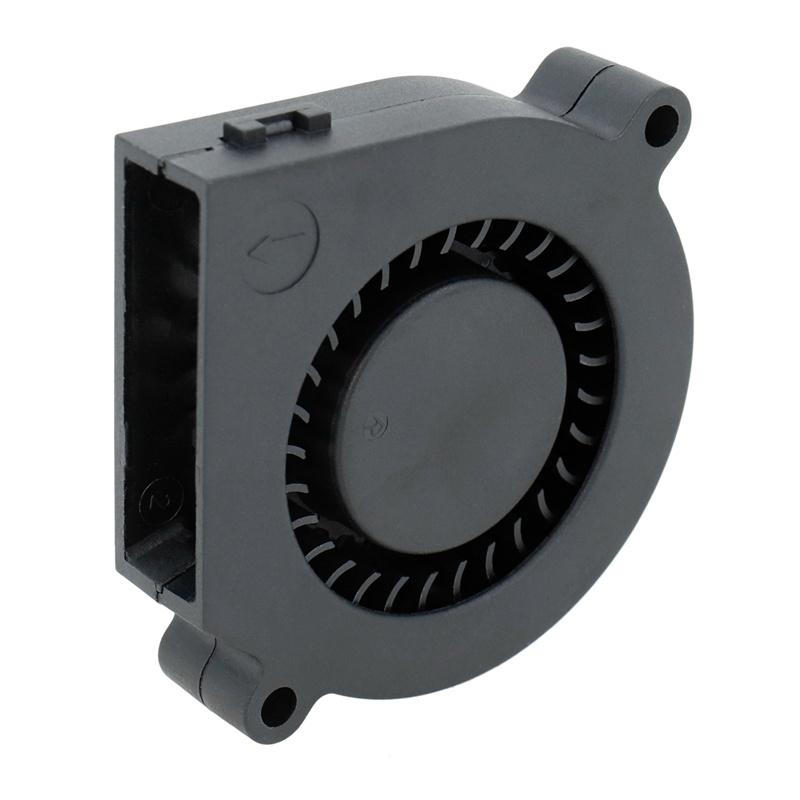

60mm x 60mm x 15mm Sleeve/Ball Bearing Exhaust Air Cooling Fan DC Motor Blower.  It's designed for projects that require cooling or ventilation. The fan can operate stably at -10 ℃ ~ +70 ℃.


About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

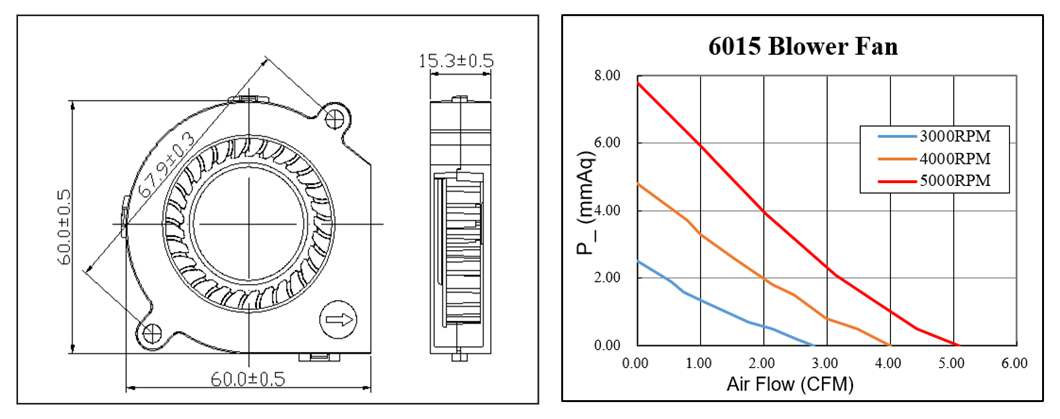

  • Dimension of outer the frame is 60 mm(L) x 60 mm(W) x 15 mm(H) / The size of fan in inch is 2.36 in(L) x 2.36 in(W) x 0.59 in(H); The center to center distance beween the mountiong holes is 67.9 ± 0.3 mm / 2.67 in.
  • Operating Voltage Range: DC 5V/12V/24V | Current: 0.05 ~ 0.38 Amp | Speed: 3000 ~ 5000 RPM | Airflow: 2.80 ~ 5.09 CFM | Noise: 27 ~ 40 dBA | Pressure: 2.50 ~ 7.80 mmAq.
  • High Speed: This model is designed to maximize airflow and can be too loud for some applications.
  • Lead wire: (+): Red wire ; (-): Black wire. Bearing Type:Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
  • Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

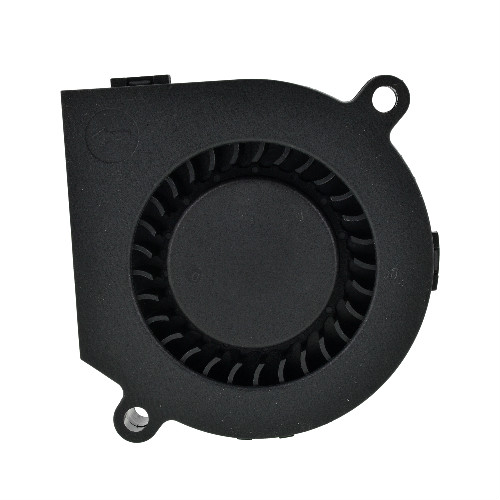

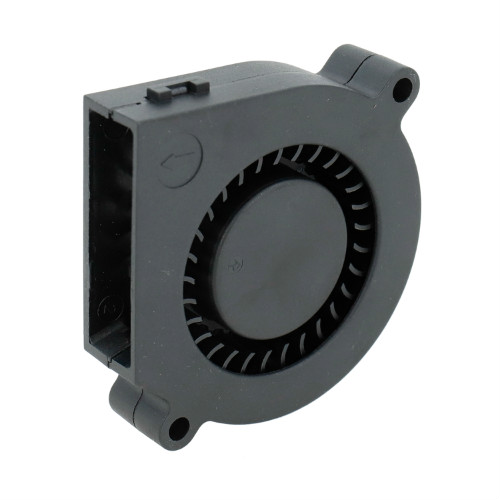

DC BLOWER FAN 60x60x15mm(2.36"x2.36"x0.59")



 centrifugal fan blower 60*60*15mm 5v 12v 24v dc blower fan


General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection:  Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing


small centrifugal blower fan 60mm

    6015 low noise centrifugal blower fan

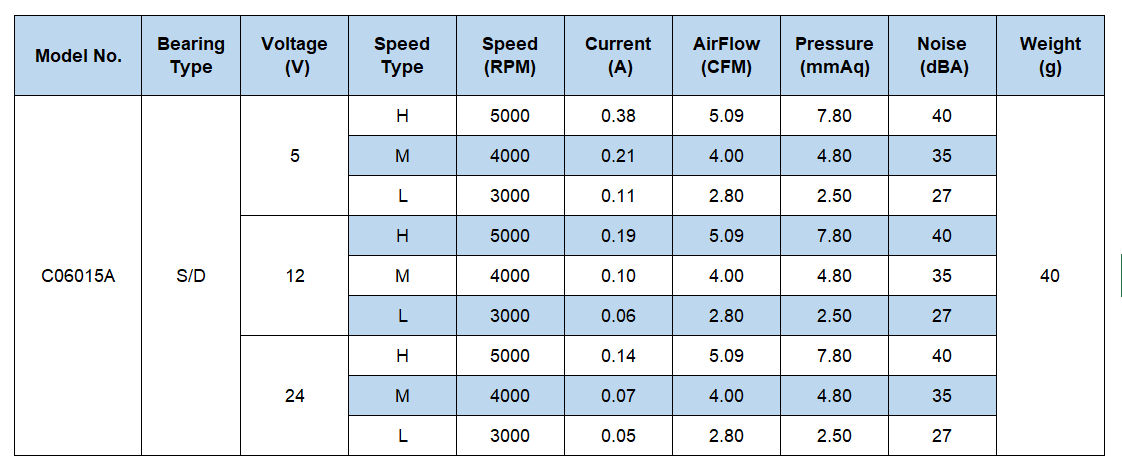

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.



Feature

  • Long Life Cycle/Low Noise/High Efficiency;
  • Unique multi-blade designed to focus airflow and reduce noise;
  • Blower fan features Pure Copper Motor, which is high temperature resistance;
  • Products smaller, lightweight, have low power consumption, and reduce heat generation;
  • Adopt high precision double ball bearings, life expectancy at up to 50,000hrs at 25℃.



More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Type Model Size Type Model Size
DC Blower C04020 40x40x20mm(1.57"x1.57"x0.78") DC Blower C06015B 60x60x15mm(2.36"x2.36"x0.59")
C05015 50x50x15mm(1.96"x1.96"x0.59") C07525 75x75x25mm(2.95"x2.95"x0.98")
C05025 50x50x25mm(1.97"x1.97"x0.98") C07530 75x75x30mm(2.95"x2.95"x1.18")
C05828 58x58x28mm(2.28"x2.28"x1.10") C09733 97x97x33mm(3.91"x3.91"x1.30")
C06015A 60x60x15mm(2.36"x2.36"x0.59") C12032 120x120x32mm(4.72"x4.72"x1.26")



Application

5V 12V 24V DC Powered blower fans can be used in a variety of applications including: Portable medical devices, LED lighting, Portable air-quality monitoring devices, ect.

micro blower fan for medical equipment

  • Customized projects related to Medical equipment, Air purifiers, 3D printers, cooling, ventilation and heat dissipation systems, and more.
  • Create a cooling system to keep the home appliances system, office equipments and other electronic equipments running at the ideal temperature and the optimal speed.



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.




Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.



Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
