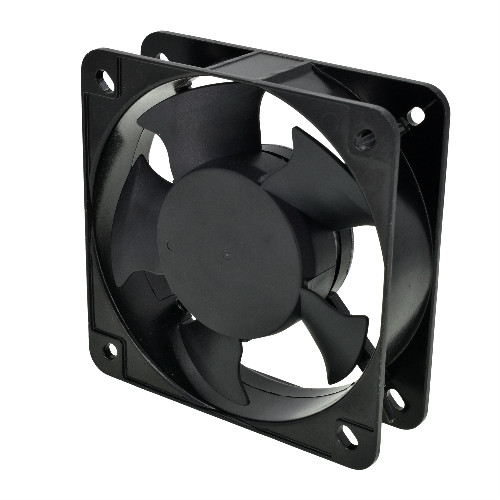

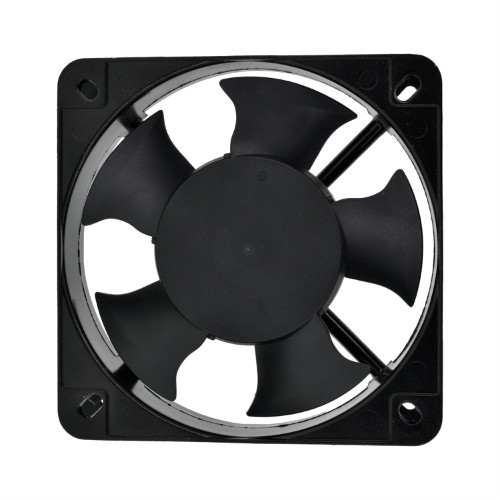

Electric Products Air Ventilator Radiator Axial Fan 50/60Hz

AC fans feature aluminum construction frame with thermoplastic impeller for harsh environments. The AC axial fans are available in frequencies of 50Hz and 60Hz, as well as varying rated voltages 110V, 220V.

  • Item NO.:

    A13538
  • Order(MOQ):

    1000
  • Payment:

    T/T, L/C, Paypal, Western Union
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Shenzhen
  • Lead Time:

    20 working days
  • Weight:

    480g
  • Product Detail


Industrial Sleeve/Ball Bearing Axial Exhaust Fan with RD Function. When the cooling fan is running, the signal pin outputs a low level, and when the rotor is blocked, it outputs a high level. By monitoring the RD signal level, it can be judged whether the cooling fan is running normally or locked.


About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

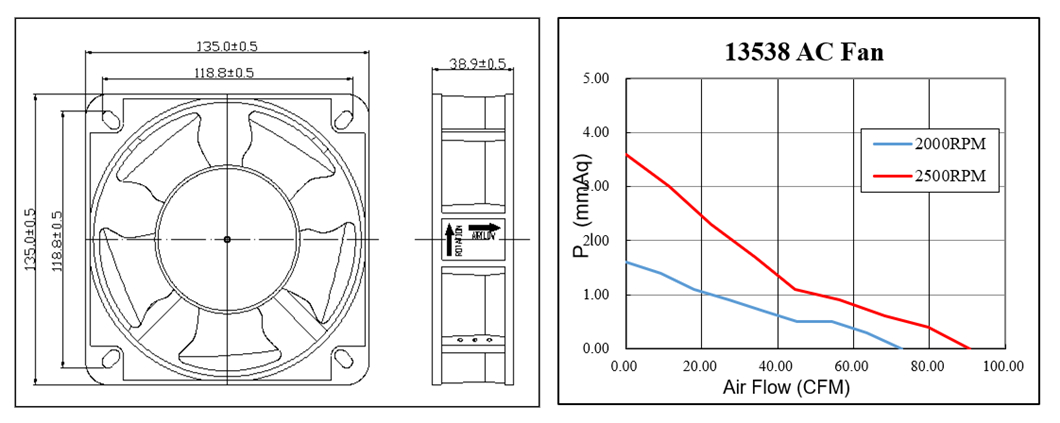

  • Dimension of outer the frame is 135 mm(L) x 135 mm(W) x 38 mm(H) / The size of fan in inch is 5.31 in(L) x 5.31 in(W) x 1.49 in(H); The center to center distance beween the mountiong holes is 118.8 ± 0.5 mm / 4.67 in.

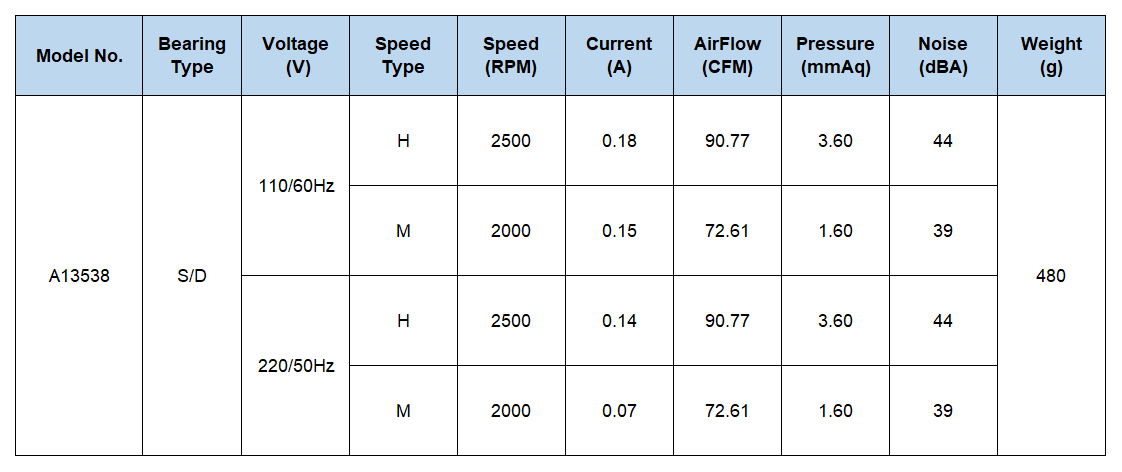

  • Operating Voltage Range: AC 110/60Hz; 220/50Hz | Current: 0.07 ~ 0.18 Amp | Speed: 2000 ~ 2500 RPM | Airflow: 72.61 ~ 90.77 CFM | Noise: 39 ~ 44 dBA | Pressure: 1.60 ~ 3.60 mmAq.
  • High Speed: This model is designed to maximize airflow and can be too loud for some applications.
  • Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing ; Life: working up to 50,000h at 25 degrees.
  • Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

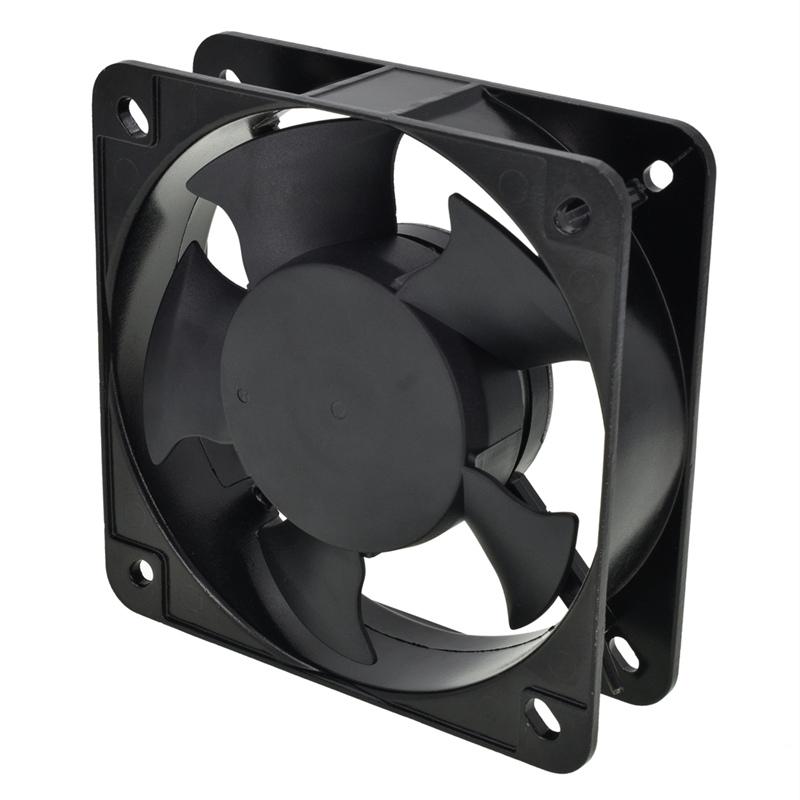

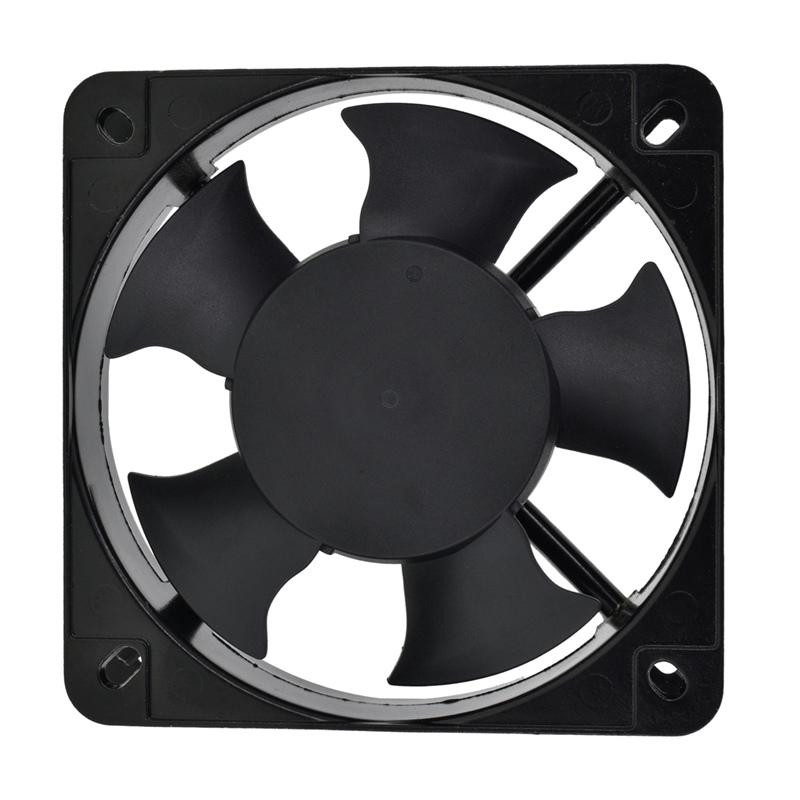

AC AXIAL FAN 135x135x38mm(5.31"x5.31"x1.49")



110v 220v electric cooling fan Industrial Axial Flow Cooling Fan


General Specification:
Frame: Aluminum Alloy
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing


AC Waterproof Cooling Fan

ac 110v 220v cooling fan



·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.



Feature

  • Aluminum Alloy metal frame, the fan is not easy to break ordeform;
  • Our products are customized accroding to customer's requirements;
  • Fan features Pure Copper Motor ,which is high temperature resistance;
  • Excellent performance and impeccable quality for AC cooling system fan;
  • The winding of our fan motors is 100% made by copper. Using good quality wire bring longer life expectancy to all series of fans.



More Models

These fans are available in several sizes to accommodate diverse applications—such as those found in tight spaces or difficult to reach areas.

Type Model Size Type Model Size
AC Axial Fan A08025 80x80x25mm(3.15"x3.15"x0.98") AC Axial Fan A13538 135x135x38mm(5.31"x5.31"x1.49")
A09225 92x92x25mm(3.62"x3.62"x0.98") A15050 150x150x50mm(5.90"x5.90"x1.97")
A11025 110x110x25mm(4.33"x4.33"x0.98") A17051A 170x150x51mm(6.69"x5.90"x2.0")
A12025A 120x120x25mm(4.72"x4.72"x0.98") A17051B
A12025B A18060 180x180x60mm(7.08"x7.08"x2.36")
A12038A 120x120x38mm(4.72"x4.72"x1.49") A20060 200x200x60mm(7.87"x7.87"x2.36")
A12038B A22060 220x220x60mm(8.65"x8.65"x2.36")


Application

Electromagnetic oven, Humidifier, Smart toilet, Intelligent household lampblack machine, Air purifier, Car GPS, Car LED lamp, Aromatherapy machine, CPU cooler, Case.

ac axial cooling fans for household appliances


silen 50/60Hz ac axial cooling fan

  • Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven, Outdoor telecom cabinet cooling systems, and more.
  • Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.



Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.



Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
