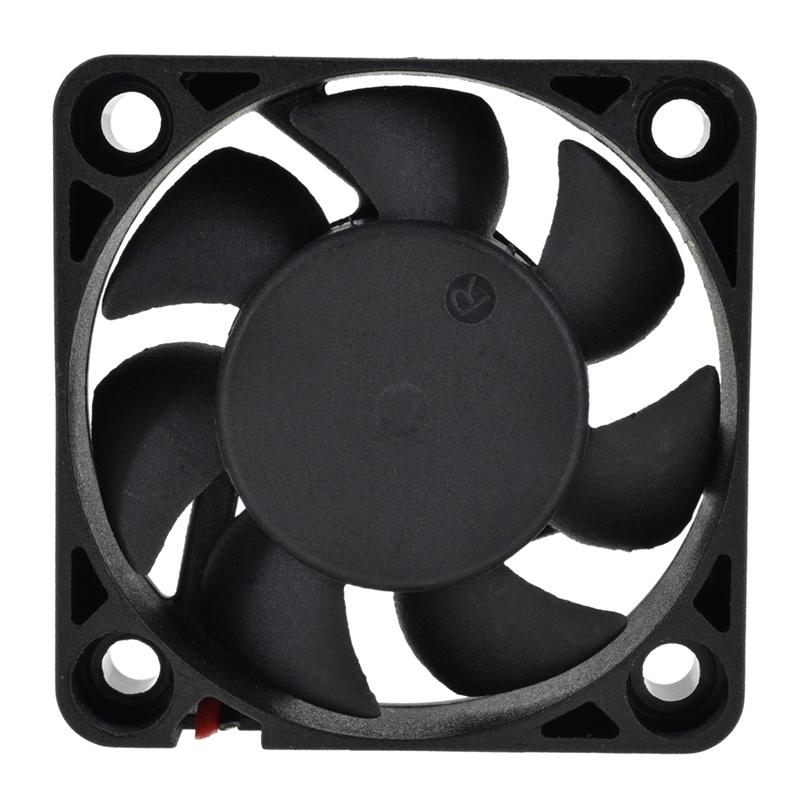

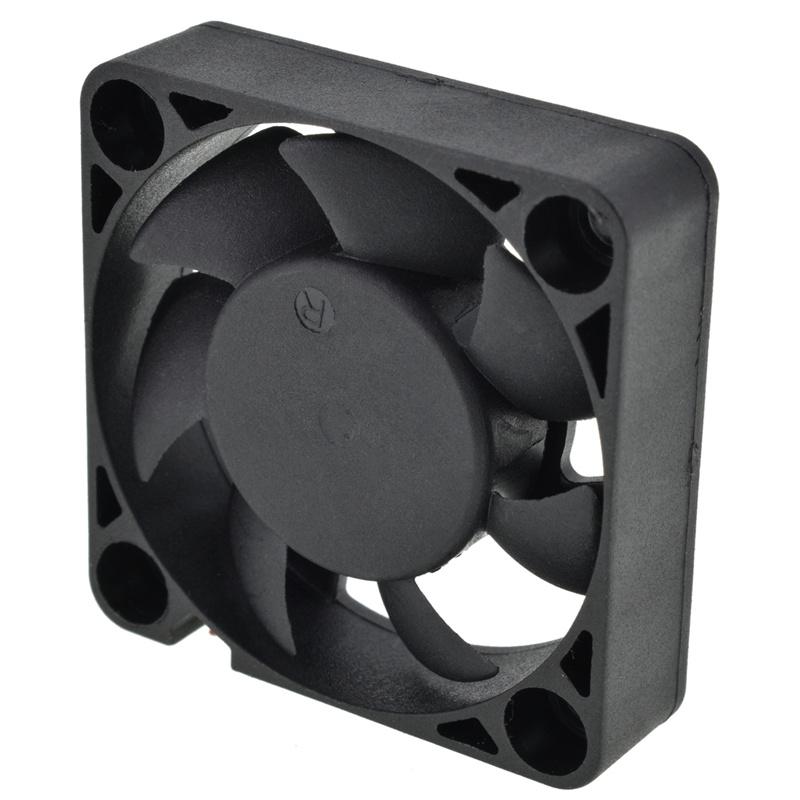

Ultrasonic Cleaner Air Ventilator Exhaust Axial Fan Waterproof

The axial ventilator fan is designed with 7 blades to provide high airflow and good cooling capacity. It can be applied to ultrasonic cleaning machine and has good waterproof function.

  • Item NO.:

    D04010C
  • Order(MOQ):

    1000
  • Payment:

    T/T, L/C, Paypal, Western Union
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Shenzhen
  • Lead Time:

    20 working days
  • Weight:

    13g
  • Product Detail

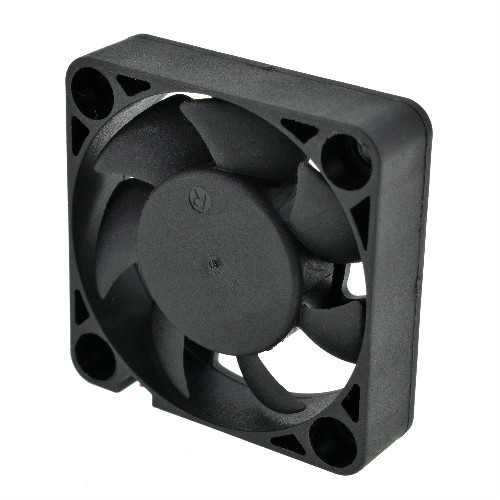

High Speed 8000RPM, DC Brushless 40x40x10MM Energy-Efficient Cooling System Fan has passed CE Certificate. The fan blade is made of environmental protection and fireproof PBT material.


About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

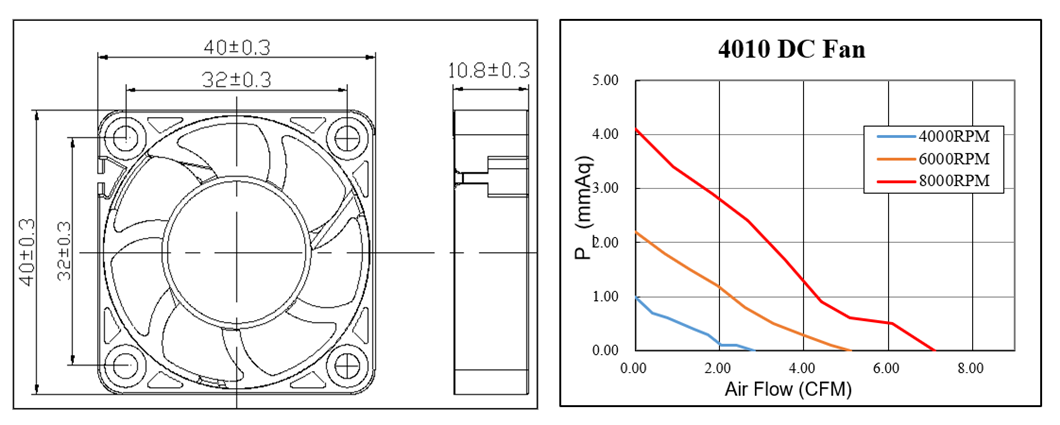

  • Dimension of outer the frame is 40 mm(L) x 40 mm(W) x 10 mm(H) / The size of fan in inch is 1.57 in(L) x 1.57 in(W) x 0.39 in(H); The center to center distance beween the mountiong holes is 32.0 ± 0.3 mm / 1.25 in.

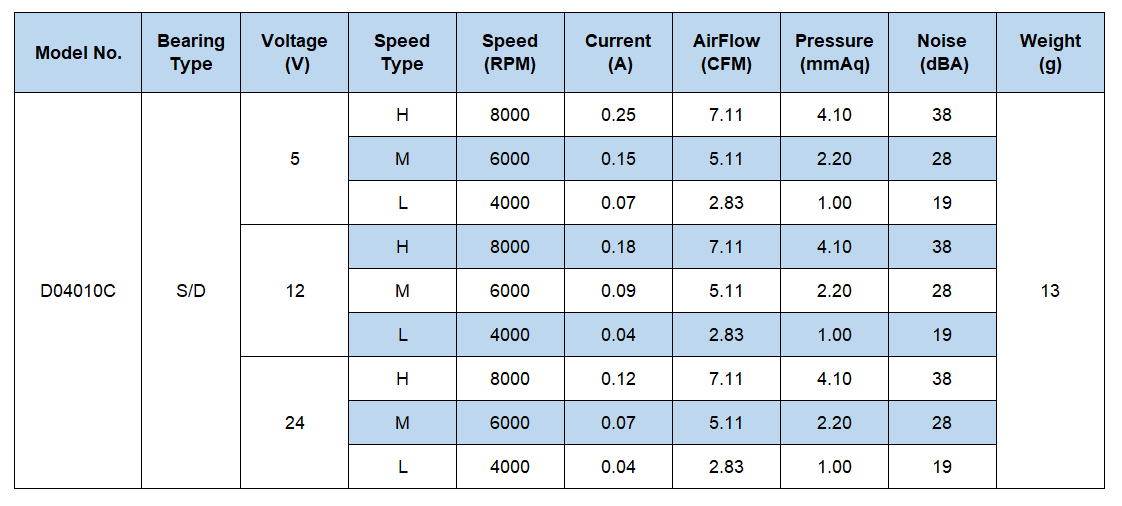

  • Operating Voltage Range: DC 5V/12V/24V | Current: 0.04 ~ 0.25 Amp | Speed: 4000 ~ 8000 RPM | Airflow: 2.83 ~ 7.11 CFM | Noise: 19 ~ 38 dBA | Pressure: 1.00 ~ 4.10 mmAq.
  • High Speed: This model is designed to maximize airflow and can be too loud for some applications.
  • Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing ; Life: working up to 50000h at 25 degrees.
  • Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

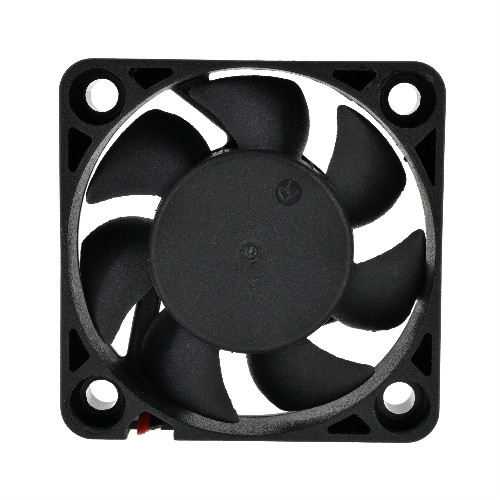

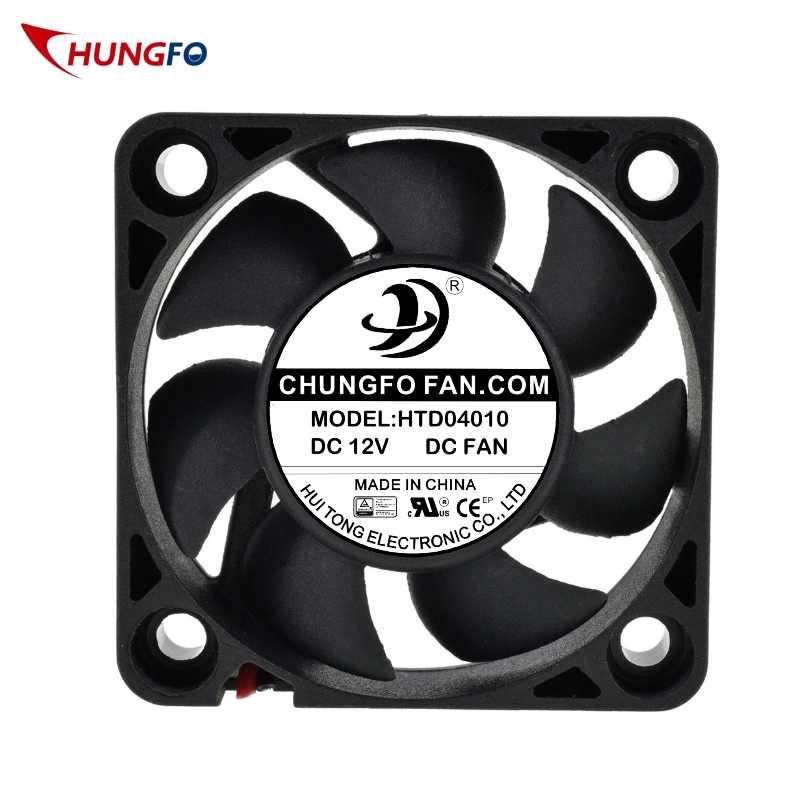

DC AXIAL FAN 40x40x10mm(1.57"x1.57"x0.39")


 Silent DC Brushless Fans 4010 Waterproof Ball Bearing Cooling Fan


General Specification:
Frame:PBT(Black)UL94V-0
Impeller:PBT(Black)UL94V-0
Operating Temperature:-10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing


Small DC Brushless Axial Fan 5V 12V 24V

    Small Axial Flow DC Brushless Fan

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.


Video



Feature

  • Provide systematic products and customized service;
  • Size of the fan is 40mm x 40mm x 10mm, can be mounted in any direction;
  • The square design of the fan frame providing highly efficient ventilation for Cabinet;
  • Engineered for optimum performance, they have a long service life and excellent energy efficiency;
  • DC brushless fan with ball bearing that can reach 8000 RPM and provides an enormous amount of airflow;
  • Wide speed regulation range, controllability, reliability, light weight, environmental protection and energy saving.



More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Type

Model

Size

Type

Model

Size

DC Axial Fan

D02507

25x25x7mm(0.98"x0.98"x0.27")

DC Axial Fan

D06025

60x60x25mm(2.36"x2.36"x0.98")

D02510

25x25x10mm(0.98"x0.98"x0.39")

D07015

70x70x15mm(2.75"x2.75"x0.59")

D03007

30x30x7mm(1.18"x1.18"x0.27")

D07025

70x70x25mm(2.75"x2.75"x0.98")

D03010

30x30x10mm(1.18"x1.18"x0.39")

D08010A

80x80x10mm(3.15"x3.15"x0.39")

D03015

30x30x15mm(1.18"x1.18"x0.59")

D08010B

D03510

35x35x10mm(1.37"x1.37"x0.39")

D08015

80x80x15mm(3.15"x3.15"x0.59")

D04007

40x40x7mm(1.57"x1.57"x0.27")

D08020

80x80x20mm(3.15"x3.15"x0.78")

D04010A

40x40x10mm(1.57"x1.57"x0.39")

D08025A

80x80x25mm(3.15"x3.15"x0.98")

D04010B

D08025B

D04010C

D08025C

D04015

40x40x15mm(1.57"x1.57"x0.59")

D08038

80x80x38mm(3.15"x3.15"x1.5")

D04020

40x40x20mm(1.57"x1.57"x0.78")

D09025A

92x92x25mm(3.62"x3.62"x0.98")

D04028

40x40x28mm(1.57"x1.57"x1.10")

D09025B

D05010A

50x50x10mm(1.96"x1.96"x0.39")

D09025C

D05010B

50x50x15mm(1.96"x1.96"x0.59")

D09232

92x92x32mm(3.62"x3.62"x1.26")

D05015

50x50x15mm(1.96"x1.96"x0.59")

D09238

92x92x38mm(3.62"x3.62"x1.5")

D05020

50x50x20mm(1.96"x1.96"x0.78")

D11335

113x113x35mm(4.46"x4.46"x1.38")

D05025

50x50x25mm(1.96"x1.96"x0.98")

D12025A

120x120x25mm(4.72"x4.72"x0.98")

D06010

60x60x10mm(2.36"x2.36"x0.39")

D12025C

D06015

60x60x15mm(2.36"x2.36"x0.59")

D12038

120x120x38mm(4.72"x4.72"x1.5")

D06020

60x60x20mm(2.36"x2.36"x0.78")

D12539

125x125x39mm(4.93"x4.93"x1.54")

D06025

60x60x25mm(2.36"x2.36"x0.98")

D13538

135x135x38mm(5.31"x5.31"x1.49")



Application

Axial fans are used in more general applications, and can be widely used in  frequency converter, UPS power supply, stage lighting equipment, audio equipment, welding equipment, personal computers for central processing units and power cooling, etc.

High Speed 5V/12V/24V DC Axial Fans


DC Cooling Fan for Humidifier

  • Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven, Outdoor telecom cabinet cooling systems, and more.
  • Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.




Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.



Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.







Want to know about this product?

SEND A MESSAGE
Leave A Message

We value your support very much, please fill out the inquiry box below and you will have the opportunity to receive free samples and professional services.

Related Products
Electric Air Cooling System Fan with Auto Restart dc brushless fan 24v
With high-efficiency inlet designs, lubricated maintenance-free ball bearings, and vibration-free operation, the cooling system axial fan has stable performance, lower operating noise and long service life.
ReadMore+
DC Brushless 5V/12V Sleeve Bearing Mini Exhaust Fan exhaust fan price

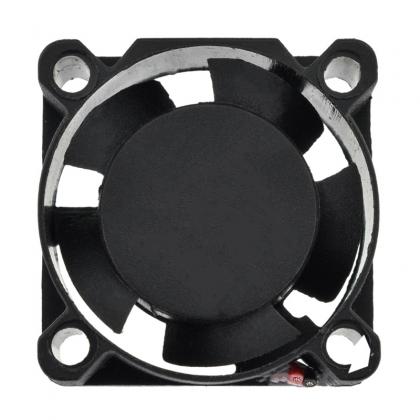

Chungfo BLDC small axial cooling fan D02507, with sleeve bearing motor has a lifespan of over 40,000 hours and allows the fans to be laid flat or stand upright., and has multiple alarm functions with CE/UL Certificates.
ReadMore+
Small Ventilation 12000rpm DC Axial Cooling Fan small exhaust fan

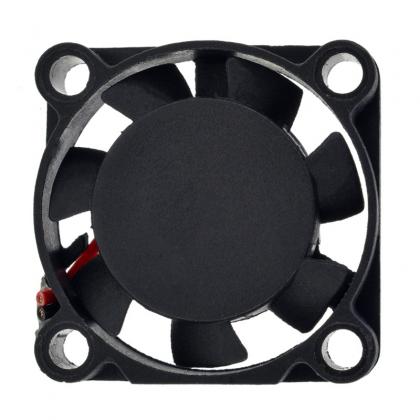

25*25*10 mm air cooler axial mini fan has stable performance, high rotating speed and relatively low noise. The 5 blades design, improve the air flow performance
ReadMore+
Square Housing Air Cooling 5V/12V/24V Axial Radiator Fan electric radiator fan

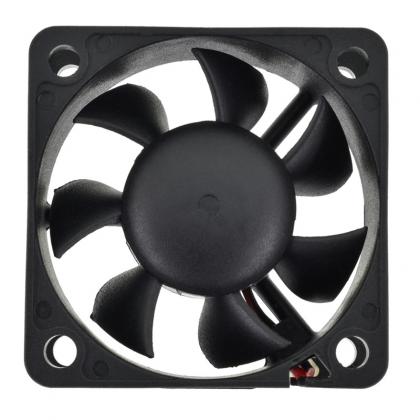

UL-certified air cooling fan with ball bearings system has a lifespan of 67,000 hours. Size of the fan is 50mm x 50mm x 20mm, can be mounted in any direction.
ReadMore+
BLDC Ventilation System Radiator Axial Cooling Flow Fan air flow cooling fan
5V/12V/24V brushless ventilation fans, they are available to customers in various voltages, and are fabricated in accordance with international standards. The axial fan is easy to maintain, in addition, it is self-cleaning, which makes daily maintenance easier.
ReadMore+
Lower Noise Air Cooler Micro Axial Ventilation Fan dc brushless fan 12v
Small air cooler fan D03007 is quiet, efficient, the 7 blades design, improve the air flow performance and its square Housing is easy to install. Provide systematic products and customized service.
ReadMore+
High Quality Manufacture of Radiator Axial Exhaust Fan axial radiator fan
Standard square axial fans are used in dry locations to cool equipment within an enclosure. These equipment-cooling fans have a square housing that can mount over a round cutout or fit into a square cutout for installation.
ReadMore+

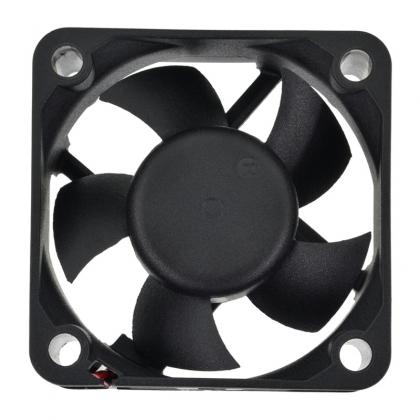

50X50X15mm Sleeve/Ball Bearing Axial Fan with CE Approved axial fan ce certificate
