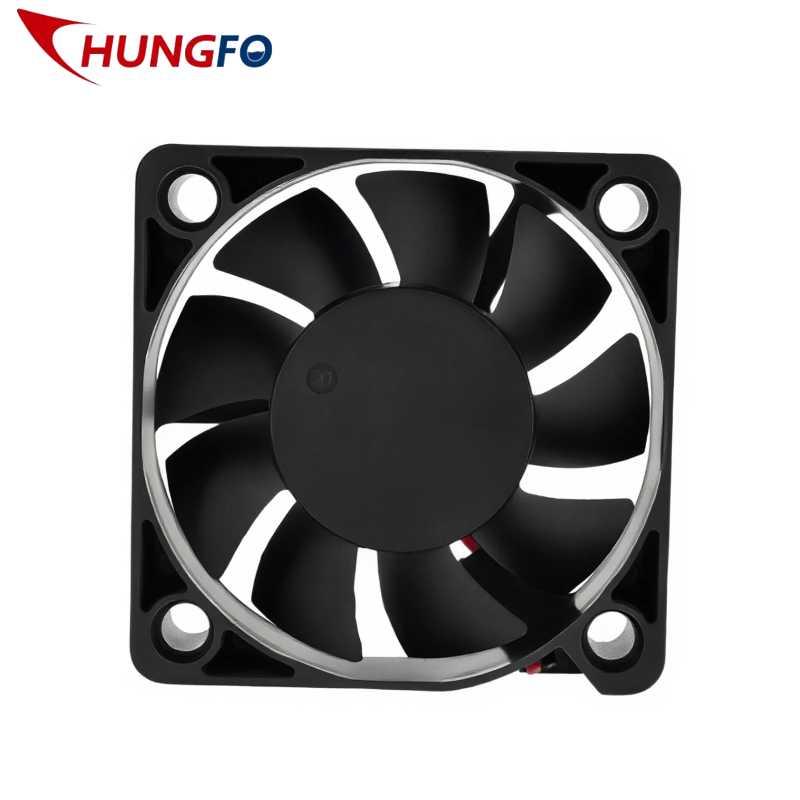

The DC5015 50mm DC Cooling Fan is a compact 50 × 50 × 15 mm brushless fan designed for efficient cooling and ventilation in electronic equipment and small appliances. Available in 5V, 12V, and 24V options, it delivers reliable airflow in a space-saving design.
Item NO.:
D05015Order(MOQ):
1000Payment:
T/T, L/C, Paypal, Western UnionProduct Origin:
ChinaColor:
BlackShipping Port:
ShenzhenLead Time：
20 working daysWeight：

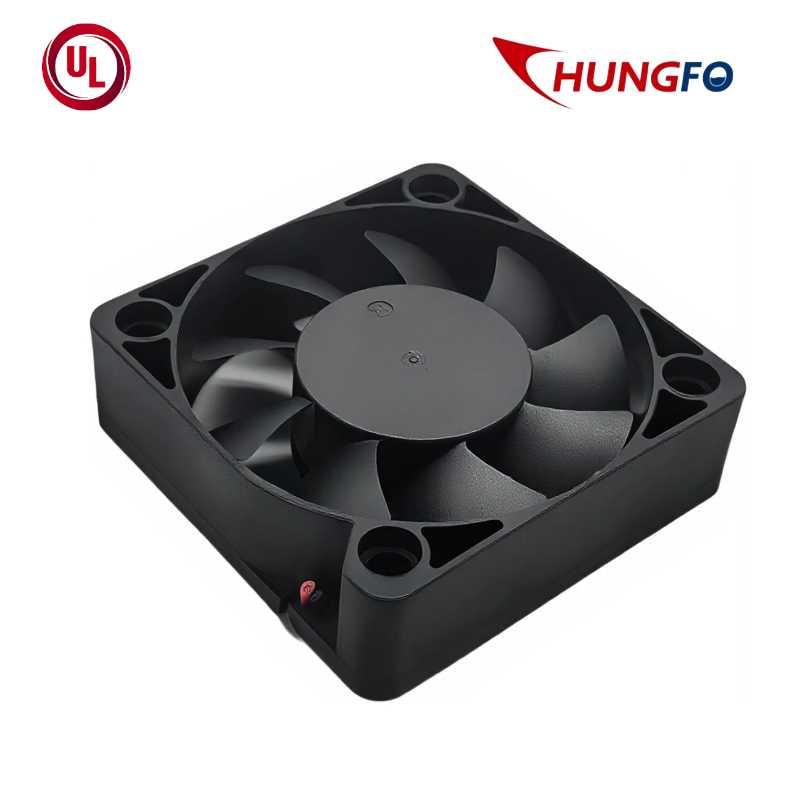

25gThe DC5015 is a compact 50mm DC brushless cooling fan designed for electronic cooling, equipment ventilation, and thermal management applications. With a frame size of 50 × 50 × 15 mm, it provides a practical cooling solution for devices with limited installation space.
Available in DC 5V, 12V, and 24V versions, this small cooling fan features a nine-blade impeller designed to support airflow generation in compact equipment. Different speed, airflow, noise, bearing, and electrical configurations are available depending on the selected model.
Key Features and Advantages
Compact 50mm Design: A 50 × 50 × 15 mm frame fits space-constrained electronic equipment and cooling assemblies.
Multiple Voltage Options: Available in DC 5V, 12V, and 24V configurations for different power supply requirements.
Brushless DC Motor: Designed for consistent operation in electronic cooling and ventilation applications.
CE, UL and RoHS Documentation: Applicable certification, recognition, and compliance documents can be provided according to the exact model and configuration.
Flame-Retardant Material Option: Black PBT frame and impeller with UL 94 V-0 material rating, subject to the selected material specification.
Flexible Bearing Options: Sleeve bearing or double ball bearing configurations are available depending on the model.
General Specification:
Frame:PBT(Black)UL94V-0
Impeller:PBT(Black)UL94V-0
Operating Temperature:-10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

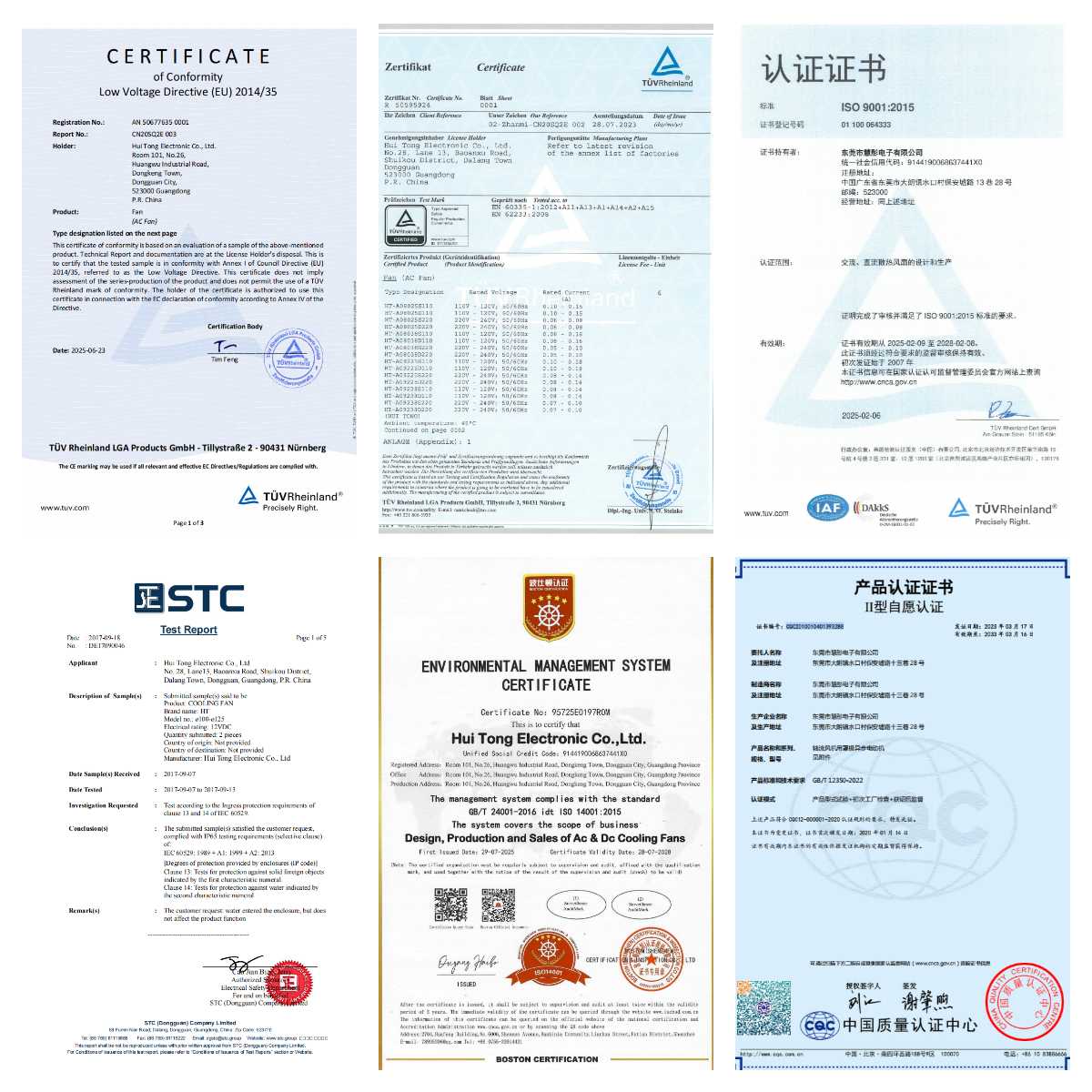

Certifications and Compliance
For international equipment manufacturers and distributors, product compliance documentation is an important part of supplier evaluation. China Chungfo Fan supports customers with applicable certification and compliance information for relevant fan models.
UL: Relevant UL certification or recognition information can be checked against the applicable product model and UL file.
CE: Applicable conformity documentation can be supplied for the relevant product configuration and intended market.
RoHS: Material compliance documentation is available for applicable models.
REACH: Supporting documentation can be discussed according to customer requirements.
Other Requirements: Additional testing reports or compliance documents may be reviewed according to the project specification.
For purchasing and engineering teams, we recommend confirming the exact model, rated voltage, material grade, and certification scope before placing an order. Certification coverage should not be assumed to apply automatically to every voltage or configuration.
More Models
These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.
|
Type |
Model |
Size |
Type |
Model |
Size |
|
DC Axial Fan |
D02507 |
25x25x7mm(0.98"x0.98"x0.27") |
DC Axial Fan |
D06025 |
60x60x25mm(2.36"x2.36"x0.98") |
|
D02510 |
25x25x10mm(0.98"x0.98"x0.39") |
D07015 |
70x70x15mm(2.75"x2.75"x0.59") |
||
|
D03007 |
30x30x7mm(1.18"x1.18"x0.27") |
D07025 |
70x70x25mm(2.75"x2.75"x0.98") |
||
|
D03010 |
30x30x10mm(1.18"x1.18"x0.39") |
D08010A |
80x80x10mm(3.15"x3.15"x0.39") |
||
|
D03015 |
30x30x15mm(1.18"x1.18"x0.59") |
D08010B |
|||
|
D03510 |
35x35x10mm(1.37"x1.37"x0.39") |
D08015 |
80x80x15mm(3.15"x3.15"x0.59") |
||
|
D04007 |
40x40x7mm(1.57"x1.57"x0.27") |
D08020 |
80x80x20mm(3.15"x3.15"x0.78") |
||
|
D04010A |
40x40x10mm(1.57"x1.57"x0.39") |
D08025A |
80x80x25mm(3.15"x3.15"x0.98") |
||
|
D04010B |
D08025B |
||||
|
D04010C |
D08025C |
||||
|
D04015 |
40x40x15mm(1.57"x1.57"x0.59") |
D08038 |
80x80x38mm(3.15"x3.15"x1.5") |
||
|
D04020 |
40x40x20mm(1.57"x1.57"x0.78") |
D09025A |
92x92x25mm(3.62"x3.62"x0.98") |
||
|
D04028 |
40x40x28mm(1.57"x1.57"x1.10") |
D09025B |
|||
|
D05010A |
50x50x10mm(1.96"x1.96"x0.39") |
D09025C |
|||
|
D05010B |
50x50x15mm(1.96"x1.96"x0.59") |
D09232 |
92x92x32mm(3.62"x3.62"x1.26") |
||
|
D05015 |
50x50x15mm(1.96"x1.96"x0.59") |
D09238 |
92x92x38mm(3.62"x3.62"x1.5") |
||
|
D05020 |
50x50x20mm(1.96"x1.96"x0.78") |
D11335 |
113x113x35mm(4.46"x4.46"x1.38") |
||
|
D05025 |
50x50x25mm(1.96"x1.96"x0.98") |
D12025A |
120x120x25mm(4.72"x4.72"x0.98") |
||
|
D06010 |
60x60x10mm(2.36"x2.36"x0.39") |
D12025C |
|||
|
D06015 |
60x60x15mm(2.36"x2.36"x0.59") |
D12038 |
120x120x38mm(4.72"x4.72"x1.5") |
||
|
D06020 |
60x60x20mm(2.36"x2.36"x0.78") |
D12539 |
125x125x39mm(4.93"x4.93"x1.54") |
||
|
D06025 |
60x60x25mm(2.36"x2.36"x0.98") |
D13538 |
135x135x38mm(5.31"x5.31"x1.49") |
Application
The DC5015 50mm cooling fan can be considered for a wide range of compact cooling and ventilation applications, including:
Electronic control units and embedded systems
Small electronic enclosures
Communication and networking equipment
Instrumentation and measurement devices
Small household appliances
Compact power and control equipment
Final suitability depends on the required airflow, static pressure, ambient temperature, mounting arrangement, and acoustic requirements of the application.
Quality Control
CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.
In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.
Frequently Asked Questions
1. What voltages are available for the DC5015 cooling fan?
The DC5015 series is available in DC 5V, 12V, and 24V versions. Current consumption, rotational speed, airflow, and noise depend on the specific voltage and model.
2. Does the DC5015 fan support UL, CE, and RoHS requirements?
Applicable certification and compliance documents depend on the exact model, material, and configuration. Please contact our team to confirm the relevant documentation before ordering.
3. What is the size of the DC5015 fan?
The frame measures 50 × 50 × 15 mm, with a mounting-hole center distance of 40.0 ± 0.3 mm. Please verify the mounting dimensions against your equipment design.
4. Which bearing types are available?
Sleeve bearing and double ball bearing versions may be available. Bearing selection affects service life, noise characteristics, installation orientation considerations, and operating suitability.
5. Can China Chungfo Fan provide OEM cooling fan solutions?
Yes. OEM requirements such as voltage, lead wire, connector, bearing type, and airflow performance can be discussed with our team. Please provide your application details and technical requirements for model selection.
Contact China Chungfo Fan
Looking for a compact 50mm DC cooling fan for your equipment or OEM project? Contact China Chungfo Fan to confirm the DC5015 specifications, applicable certification documents, and customization options for your application.
