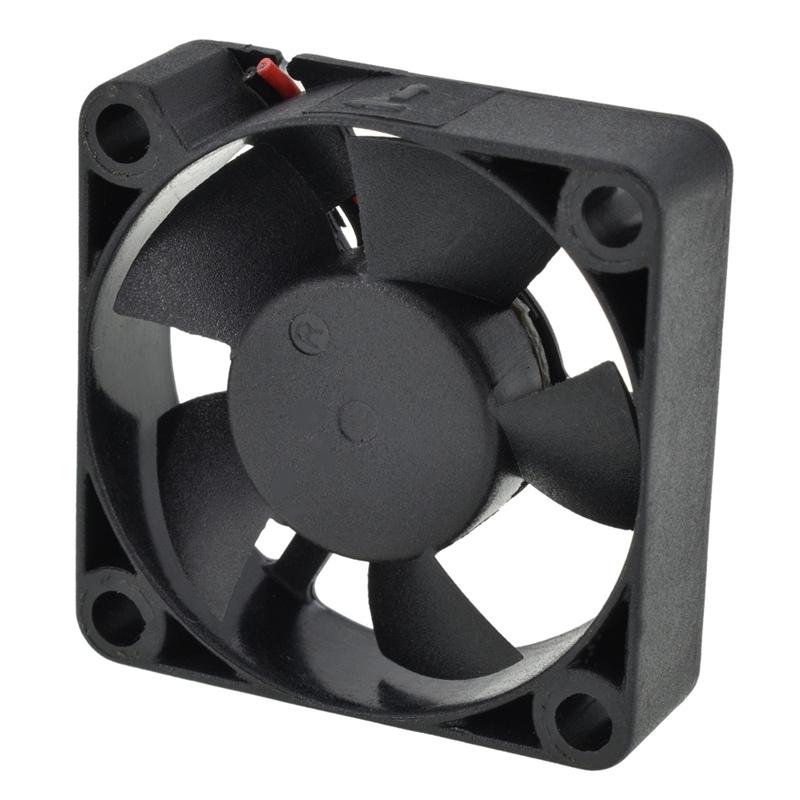

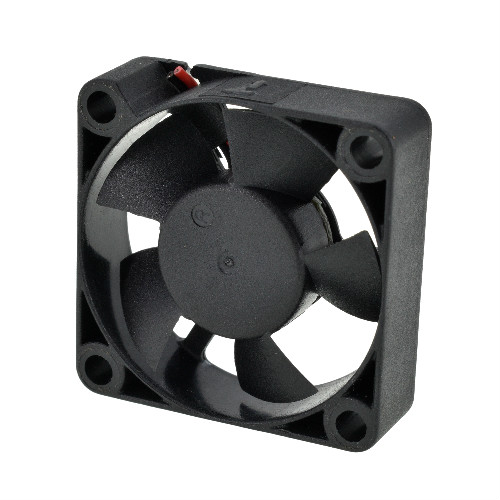

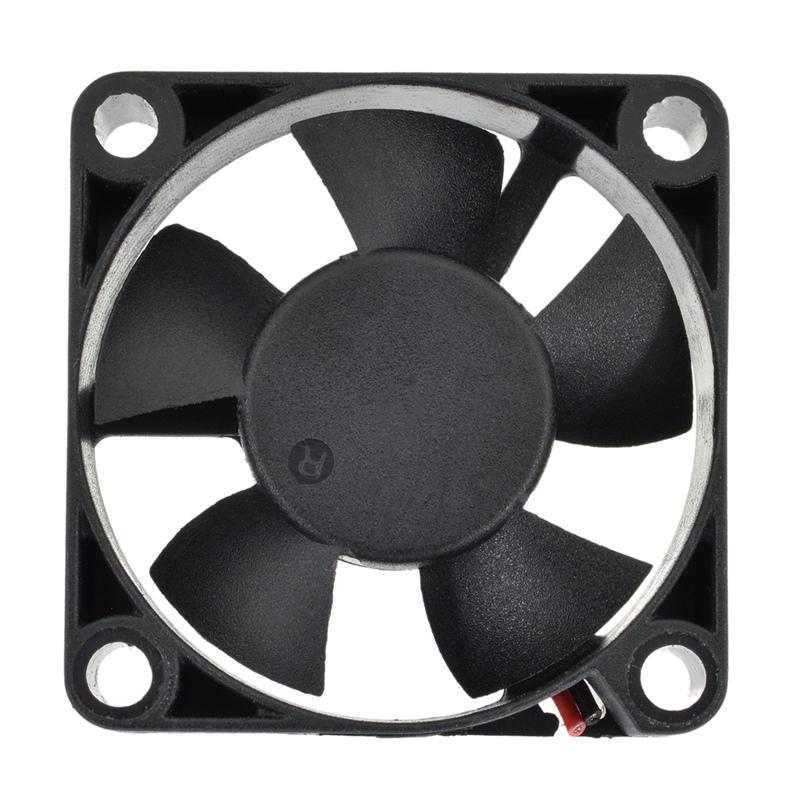

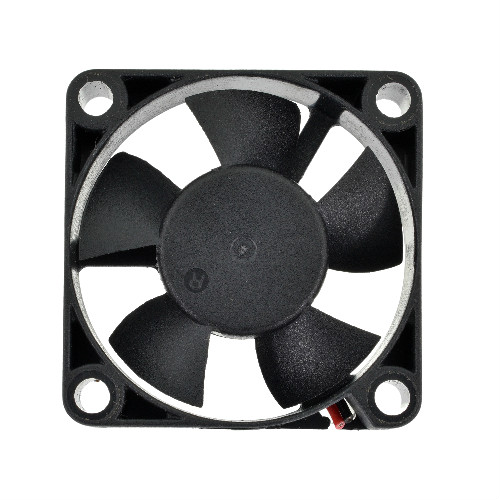

Energy Saving Air Cooled DC Axial Ventilation Fan

Quiet Cooling Fan System 35mm with Speed Control, and adopts the compact structure design of sleeve/ball bearing motor. And it has passed CE, UL and RoHS certification.

About this item

Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.

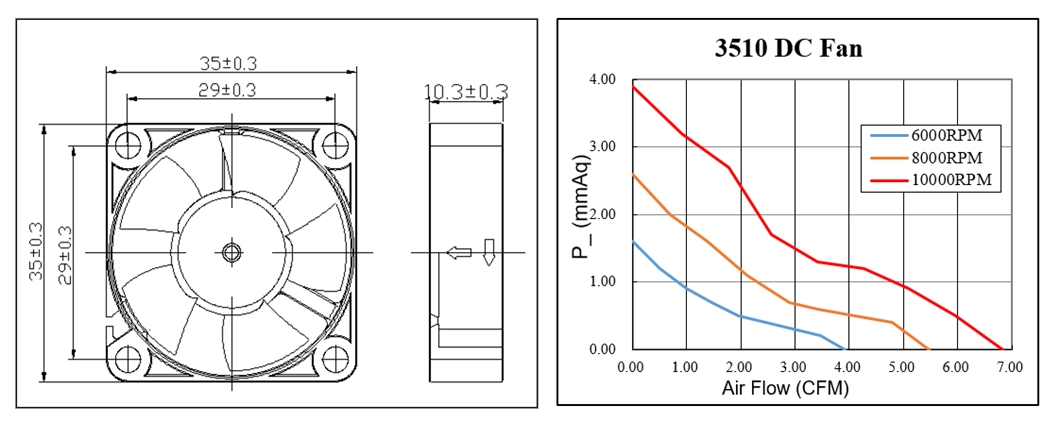

Dimension of outer the frame is 35 mm(L) x 35 mm(W) x 10 mm(H) / The size of fan in inch is 1.37 in(L) x 1.37 in(W) x 0.39 in(H); The center to center distance beween the mountiong holes is 29.0 ± 0.3 mm / 1.14 in.

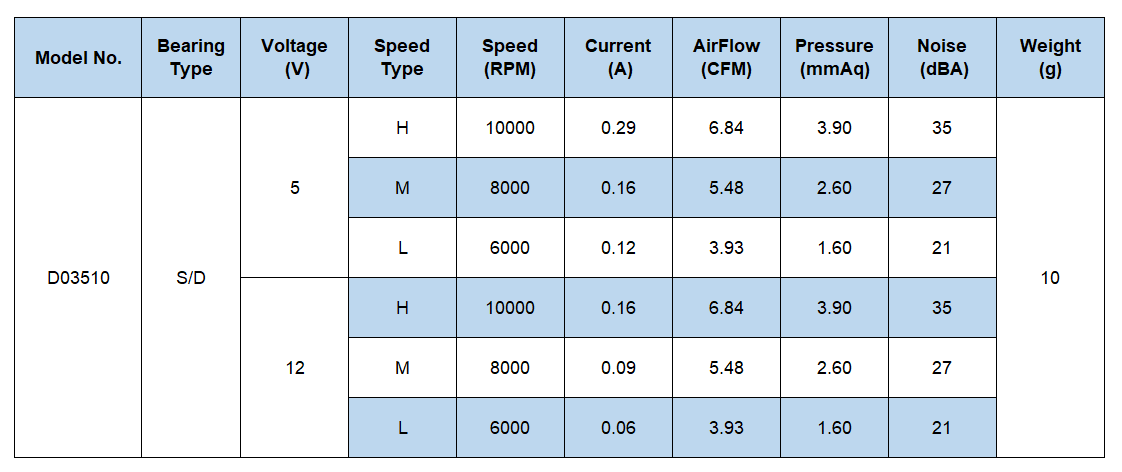

Operating Voltage Range: DC 5V/12V | Current: 0.06 ~ 0.29 Amp | Speed: 6000 ~ 10000 RPM | Airflow: 3.93 ~6.84 CFM | Noise: 21 ~ 35 dBA | Pressure: 1.6 ~ 3.9 mmAq.

High Speed: This model is designed to maximize airflow and can be too loud for some applications.

Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing ; Life: working up to 50000h at 25 degrees.

Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

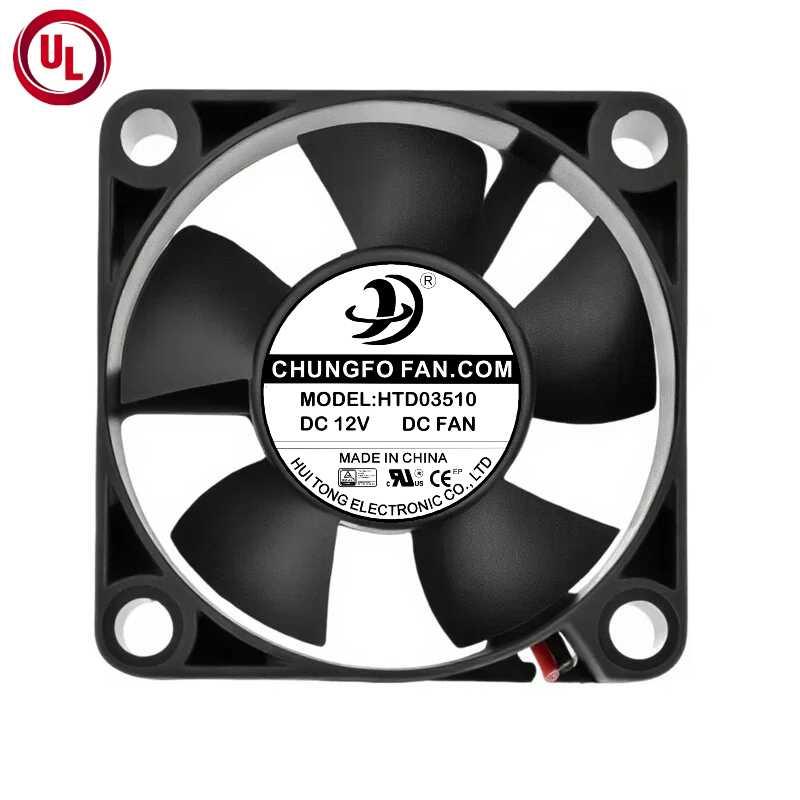

DC AXIAL FAN 35x35x10mm(1.37"x1.37"x0.39")

General Specification:
Frame: PBT(Black)UL94V-0
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• PBT fan outer frame, corrosion resistance, stable, durable, not easy to break;
• Can work normally in the low temperature environment of -10℃~70℃;
• Each item will be tested carefully and packed well by professional;
• Adopts DC motor, which has the ability to limit overload and ensure that the motor will not be overloaded when it exceeds its capacity;
• It can be first choice when you need a fan replacment.

More Models

These fans are available in several sizes to accommodate diverse applications—such as those found in tight spaces or difficult to reach areas.

Video

Application

Compact axial fans are equipment-cooling fans with blades that circulate air to regulate temperatures in machinery and equipment enclosures.

Sometimes called computer-cooling fans, compact axial fans are often used for cooling computers, copy machines, electronic instruments, machine tool equipment, and refrigeration systems.

• Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven ,Outdoor telecom cabinet cooling systems, and more.
• Creates cooling systems to keep home entertainment systems,computers, and other electronics running at their ideal temperature and optimal speed.

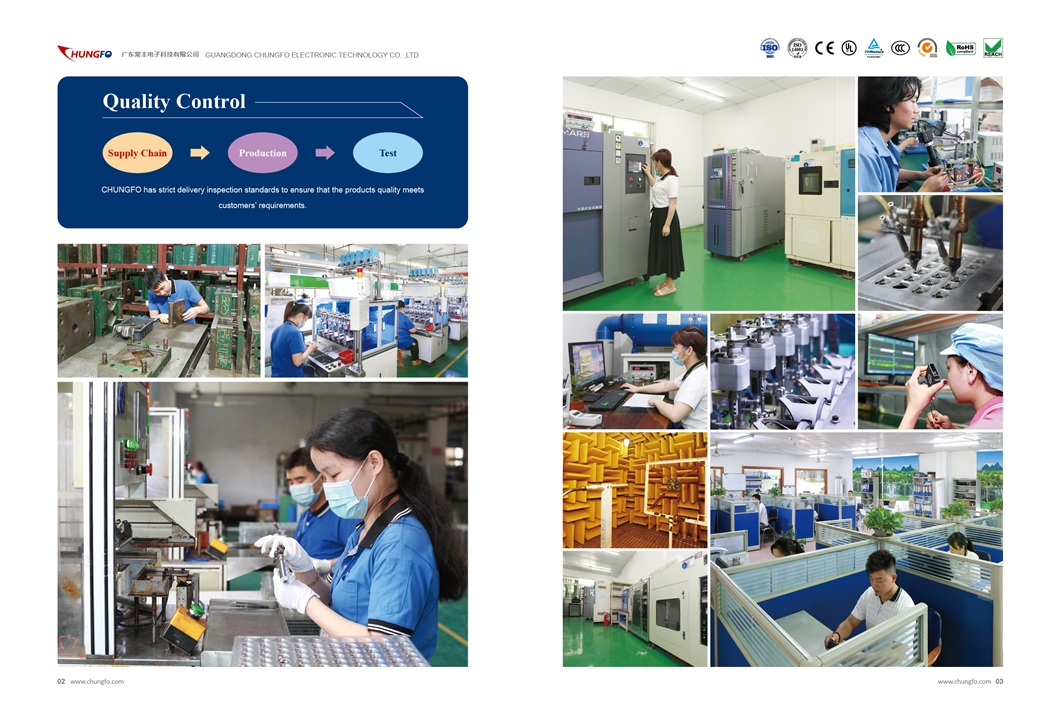

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
