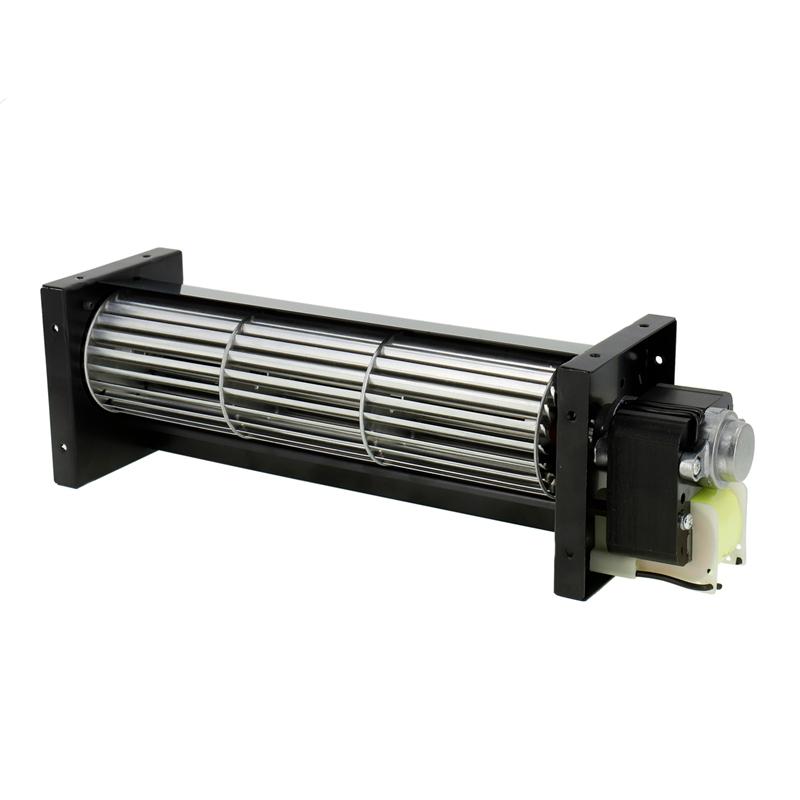

Industrial AC Motor Cooling System Cross Flow Fan

Metal blades, metal frame cross flow fan with AC motor, enhances the heating efficiency. The fan can withstand harsh weather, extreme environments, as well as dust and moisture.

  • Item NO.:

    AC-F60240
  • Order(MOQ):

    1000
  • Payment:

    T/T, L/C, Paypal, Western Union
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Shenzhen
  • Lead Time:

    20 working days
  • Weight:

    1430g
  • Product Detail


High Speed 110V 220V Radiator Ventilation System Cross Flow Fan with Shaded Pole Motor. The impellers diameter of cross flow fan with AC shaded pole motor ranges from 30mm to 60mm. It can choose different axial lengths and customize the length and diameter of the impeller according to the needs of customers.


Our advantage


Our company provides a rich variety of packaging product lines, can meet your different packaging needs, to provide a full range of services, we can provide you with suitable packaging solutions.


About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
  • Dimension of outer the frame is 210 mm x 190 mm x 30 mm / The size of fan in inch is 8.26 in x 7.48 in x 1.18 in; The center to center distance beween the mountiong holes is 210 ± 1 mm / 8.26 in.
  • Operating Voltage Range: AC 110/60Hz; 220/50Hz | Current: 0.10 Amp | Speed: 2500 RPM | Airflow: 24.83 CFM | Noise: 39 dBA | Pressure: 0.60 mmAq.
  • High Speed: This model is designed to maximize airflow and can be too loud for some applications.
  • Lead wire: (+): Red wire ; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
  • Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

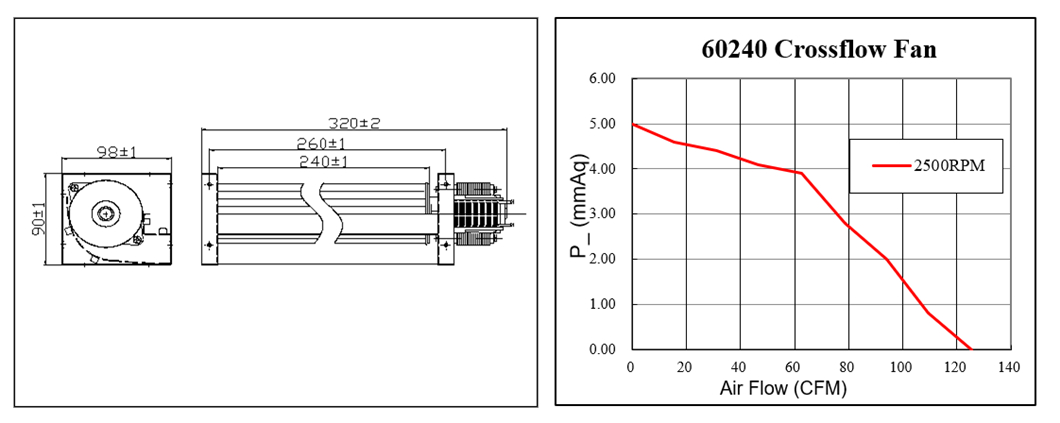

AC Cross Flow Fan 260x240x60mm

 60240 cross flow fan for air curtain

General Specification:
Frame: Cold Rolled Steel
Impeller: Aluminum Alloy
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing


2500rpm tangential cross flow fan

    220V AC air conditioner cross flow fan

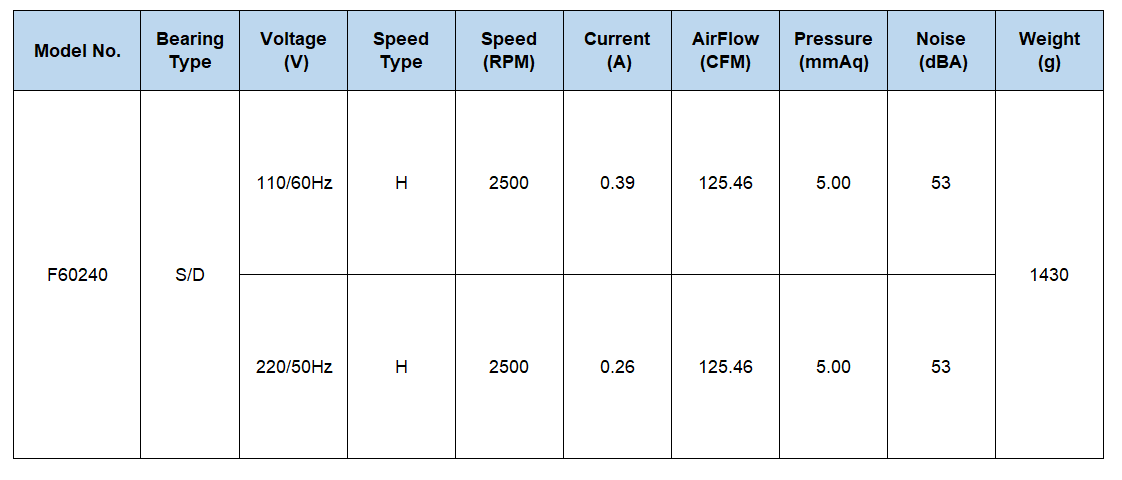

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.



Feature

  • Unique multi-blade designs increase airflow;
  • Impedance protection ensures safe operation at high temperatures;
  • Can work normally in the low temperature environment of -10℃~70℃;
  • All our cross flow fan models are RoHS compliant and impedance protected;
  • Produce air flow in right angles, which helps ensure uniform cooling or drying of areas;
  • Satisfy customized need for various functions of Auto-start, FG, RD, PWM, Dust-proof, Waterproof product.



More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Type Model Size Type Model Size
DC Crossflow Fan F25090 109x90x25mm AC Crossflow Fan F30190 210x190x30mm
F30090 108x90x30mm F30290 310x290x30mm
F30090(PBT) 108x90x30mm F60180 200x180x60mm
F30150 168x150x30mm F60240 260x240x60mm
F30190 210x190x30mm F60300 320x300x60mm
F30250 270x250x30mm

F30290 310x290x30mm

F40150 170x150x40mm

F40300 320x300x40mm

F50100 132x90x50mm

F50200 263x200x50mm



Application

Popular used in Air Handlers, Cabinet Cooling, Commercial Refrigeration, HVAC, Copiers & Projectors, Air Cleaners & Heaters, Server/Storage Devices, Vending Machines, Mobile Devices, Purifiers, and other electronics and components.

custom tangential cross flow fan

  • Custom projects related to Air Conditioners, Refrigeration and display cabinets, Dehumidifiers, Sports equipments, and many other industrials.
  • Create a good cooling and ventilation systems to keep household appliances and other electronic equipments running at the ideal temperature and at the best speed.



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.




Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.



Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.







Want to know about this product?

SEND A MESSAGE
Leave A Message

We value your support very much, please fill out the inquiry box below and you will have the opportunity to receive free samples and professional services.

Related Products
DC/AC Motor Treadmill Radiator Air Ventilation Crossflow Fan ac cross flow fan
110/60Hz or 220/50Hz air ventilation cross flow fan are usually used for cooling and heat dissipation on sports equipment such as treadmills. Innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation.
ReadMore+
Electric Motor Air Cooler 2500rpm Crossflow Metal Fan cross flow fan design
The AC cross flow fan consists of AC motor with external rotor and metal impeller, and has the following features: compact construction, light weight, high speed, high air flow, low noise & vibration and easy mounting etc.
ReadMore+
110V/220V Air Circulation Exhaust Cross Flow Tangential Fan tangential cross flow fan
The ventilation cross flow fan has a strong power motor, and the metal fan blades have large air volume, uniform inlet and outlet air, wear resistance, high temperature resistance.
ReadMore+
Waterproof Cross Flow Radiator Fan for Advertising Displays cross flow fan blade
The air radiator cross flow fan has an operating temp of  -10℃ ~ 70℃ super high temperature range. Aluminum construction with great waterproof function, making it ideal for most outdoor environments, and can be used for heat dissipation of display screens.
ReadMore+
High Quality Ventilation 5000rpm Cross Flow Tangential Fan mini cross flow fan
Lightweight and compact design allows installation in tight fitting spaces. Ball bearings design icreasing the fan’s operation stability and life span, more than 50,000 hours of operation.
ReadMore+

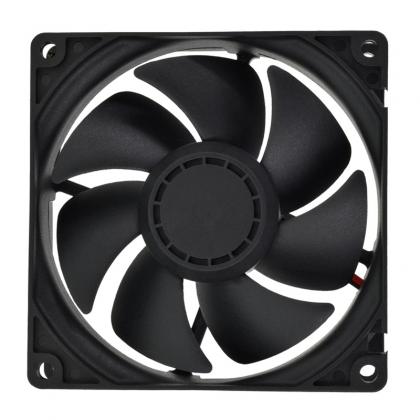

Large Airflow Exhaust Axial Fan for Ventilation System axial fan for ventilation
