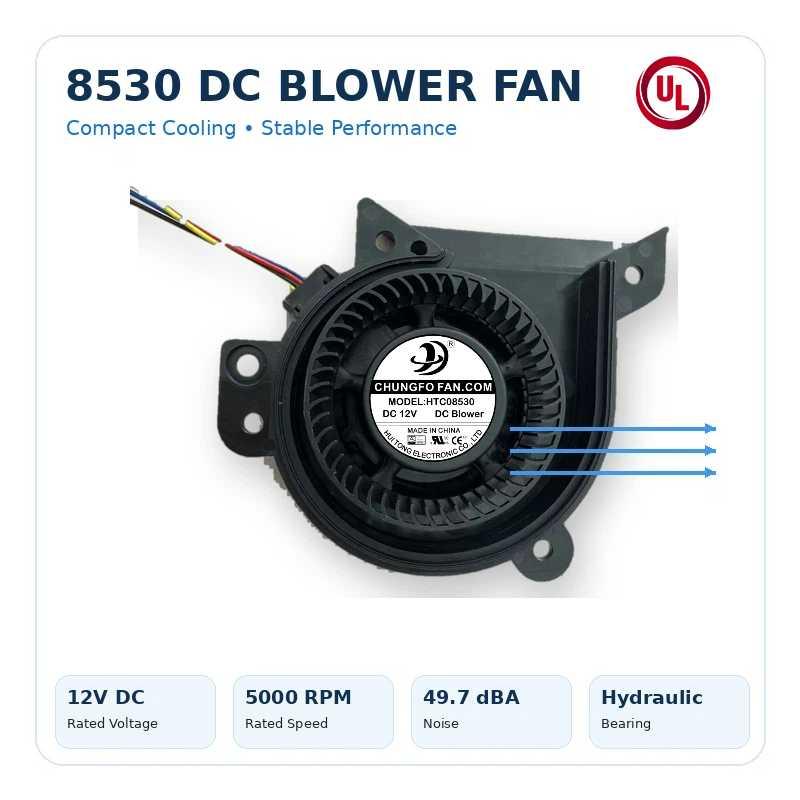

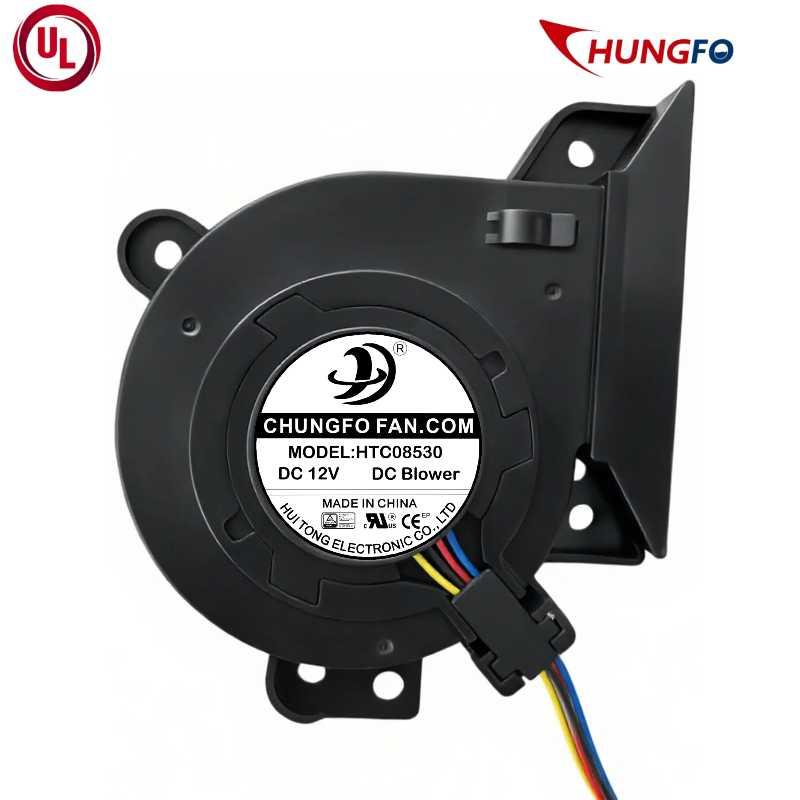

The 8530 DC EC Blower Fan is a compact centrifugal cooling solution designed for electronic equipment, control systems, power supplies, industrial equipment, medical devices and other space-constrained applications.
Item NO.:
C08530Payment:
T/T, L/C, Paypal, Western UnionProduct Origin:
ChinaColor:
BlackShipping Port:
ShenzhenLead Time：
20 working daysWeight：
83g ±10%Operating at DC 12V with a rated speed of 5000 RPM ±10%, this DC blower fan provides stable and directional airflow in compact equipment. Its PBT + fiberglass construction, stainless steel shaft and hydraulic bearing system provide a durable structure for continuous equipment cooling.
With a rated current of only 0.36A ±15%, a wide operating voltage range of 7–13V DC and an average noise level of 49.7 dBA, the 8530 is suitable for applications requiring a balance between compact installation, reliable airflow and controlled operating noise.
Key Features
Compact Centrifugal Blower Design
The 8530 uses a compact centrifugal blower structure that directs air through the side outlet. Compared with conventional axial fans, this configuration is particularly useful when the equipment requires directional airflow or when the available installation space is limited.
12V DC Operation
The fan is designed for DC 12V systems and supports an operating voltage range of 7–13V DC. Its 6V starting voltage provides flexibility for low-voltage equipment and power management systems.
5000 RPM Rated Speed
With a rated speed of 5000 RPM ±10%, the 8530 is designed to provide stable high-speed operation for compact cooling applications.
Controlled Operating Noise
The average noise level is 49.7 dBA under the specified test conditions. This makes the fan suitable for equipment where cooling performance needs to be balanced with acoustic requirements.
Hydraulic Bearing System
The hydraulic bearing system supports smooth rotation and is suitable for applications requiring stable long-term operation. Combined with a stainless steel shaft and PBT + fiberglass structural components, the fan is designed for reliable operation in equipment cooling systems.
Durable PBT + Fiberglass Construction
Both the frame and impeller use PBT + fiberglass material. This material combination provides a rigid and durable structure for applications exposed to continuous motor operation and elevated operating temperatures.
Wide Operating Temperature Range
The 8530 supports an operating temperature range of -10°C to +70°C and a storage temperature range of -20°C to +75°C, allowing it to be integrated into a variety of electronic and industrial environments.
Multiple Motor Protection Functions
The motor incorporates locked-rotor protection and polarity protection. According to the product specification, the motor is designed to withstand a locked condition at rated voltage for 72 hours without fire or burning, and the circuit can withstand reverse polarity connection without damage.
Product Specifications

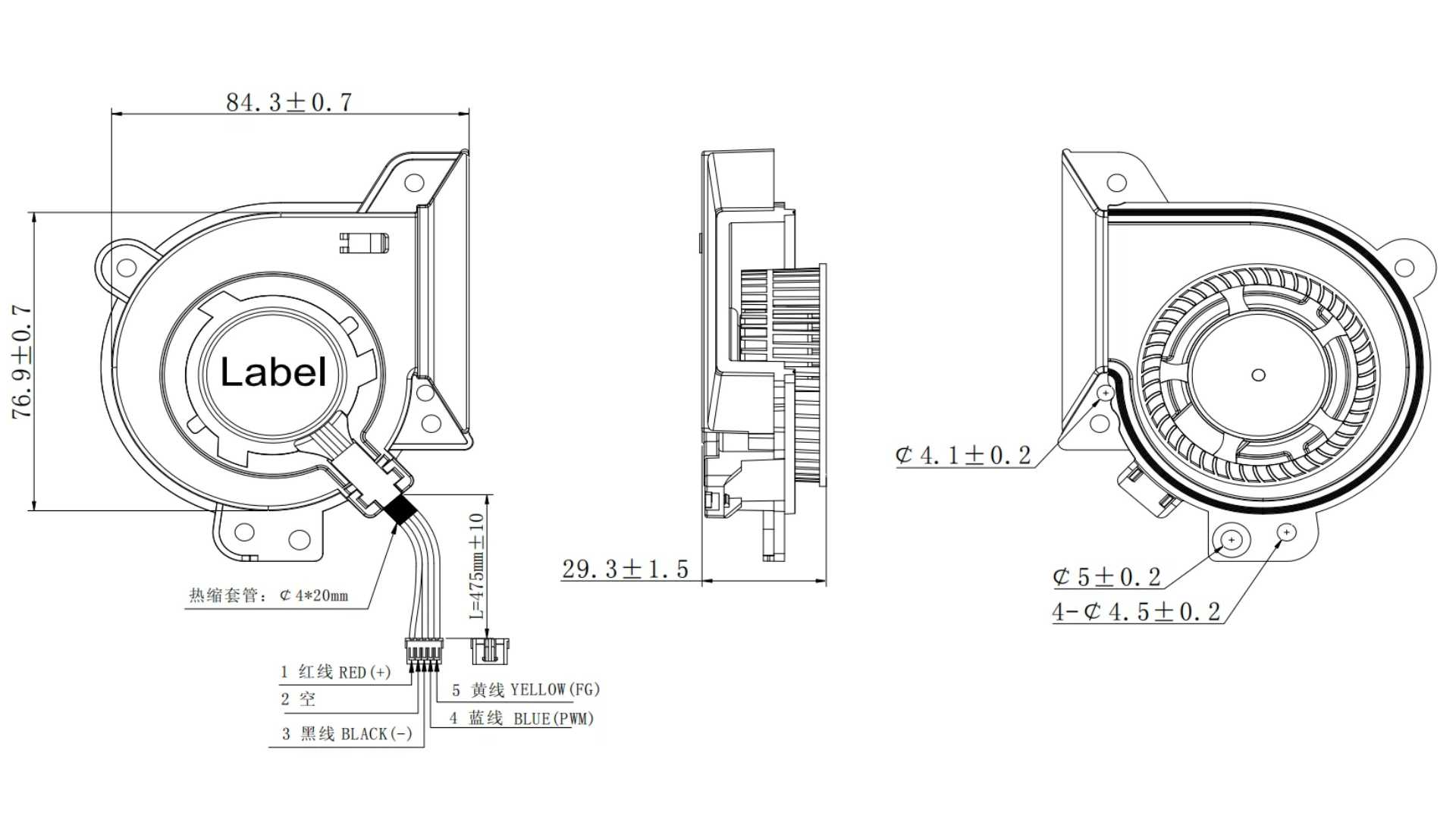

Model: 8530 DC Blower Fan
Rated Voltage: DC 12V
Rated Current: 0.36A ±15%
Label Current: 0.45A
Locked Current: ≤2.4A
Starting Voltage: 6V
Operating Voltage: 7–13V DC
Rated Speed: 5000 RPM ±10%
Airflow: To be confirmed according to test report
Static Pressure: To be confirmed according to test report
Noise: 49.7 dBA AVG.
Rotation Direction Clockwise, viewed from label side
Frame Material: PBT + Fiberglass
Impeller Material: PBT + Fiberglass
Shaft Stainless Steel
Bearing System: Hydraulic Bearing
Silicon Steel Strip: H23
Lead Wire: UL10368 24AWG
Net Weight: 83g ±10%
Operating Temperature: -10°C to +70°C
Storage Temperature: -20°C to +75°C
Operating Humidity: 10%–80% RH
Storage Humidity: 10%–80% RH
Insulation Resistance: ≥10MΩ at 500VDC
Insulation: Class Class B, 135°C
Protection and Reliability
The 8530 DC Blower Fan is manufactured with multiple protection and quality-control measures for reliable integration into commercial and industrial equipment.
The motor is tested for locked-rotor protection and reverse-polarity protection. The product specification also requires the motor to withstand a 30 cm drop test under minimum packaging conditions.
For electrical safety, the insulation resistance between the frame and lead wire is specified at a minimum of 10MΩ under 500VDC, with Class B insulation rated at 135°C.
These characteristics make the 8530 suitable for OEM equipment where stable operation, electrical protection and production consistency are important.
Typical Applications
The 8530 DC Blower Fan can be integrated into compact equipment requiring directional cooling airflow.
Electronics and PCB Cooling
The compact centrifugal structure can be used to direct cooling air toward PCBs, processors, power components and other heat-generating electronic components.
Industrial Control Equipment
The 8530 can be integrated into control cabinets, industrial controllers, automation equipment and compact electrical systems where localized cooling is required.
Power Supplies and Inverters
Compact power supplies, converters and inverter equipment may require forced airflow around heat-generating electronic components. The 12V DC configuration allows the blower to be integrated into low-voltage internal cooling systems.
3D Printers
Small blowers are commonly used in 3D printing equipment for electronics cooling, localized airflow and thermal management. The compact centrifugal format is suitable for enclosed equipment where installation space is limited.
Medical and Laboratory Equipment
The 8530 can be considered for cooling electronic modules, control boards and internal components in laboratory and medical equipment where compact size and controlled operating noise are important.
Communication and Network Equipment
Compact communication equipment, electronic enclosures and network devices may require forced airflow around internal electronic components. The directional outlet of a centrifugal blower can help route air toward specific heat sources.
Why Choose a DC Blower Instead of a Conventional Axial Fan?
Axial fans generally move air along the same axis as the impeller, while centrifugal blowers draw air into the impeller and discharge it through a different direction.
For equipment with restricted installation space, air ducts, localized heat sources or directional cooling requirements, a centrifugal blower can provide greater flexibility in airflow routing.
The 8530 is therefore particularly suitable for compact equipment where the fan cannot simply be installed directly in front of the cooling target.
Engineering and OEM Customization
As a professional cooling fan manufacturer, Chungfo Fan supports OEM and customized cooling solutions for different equipment requirements.
About Us

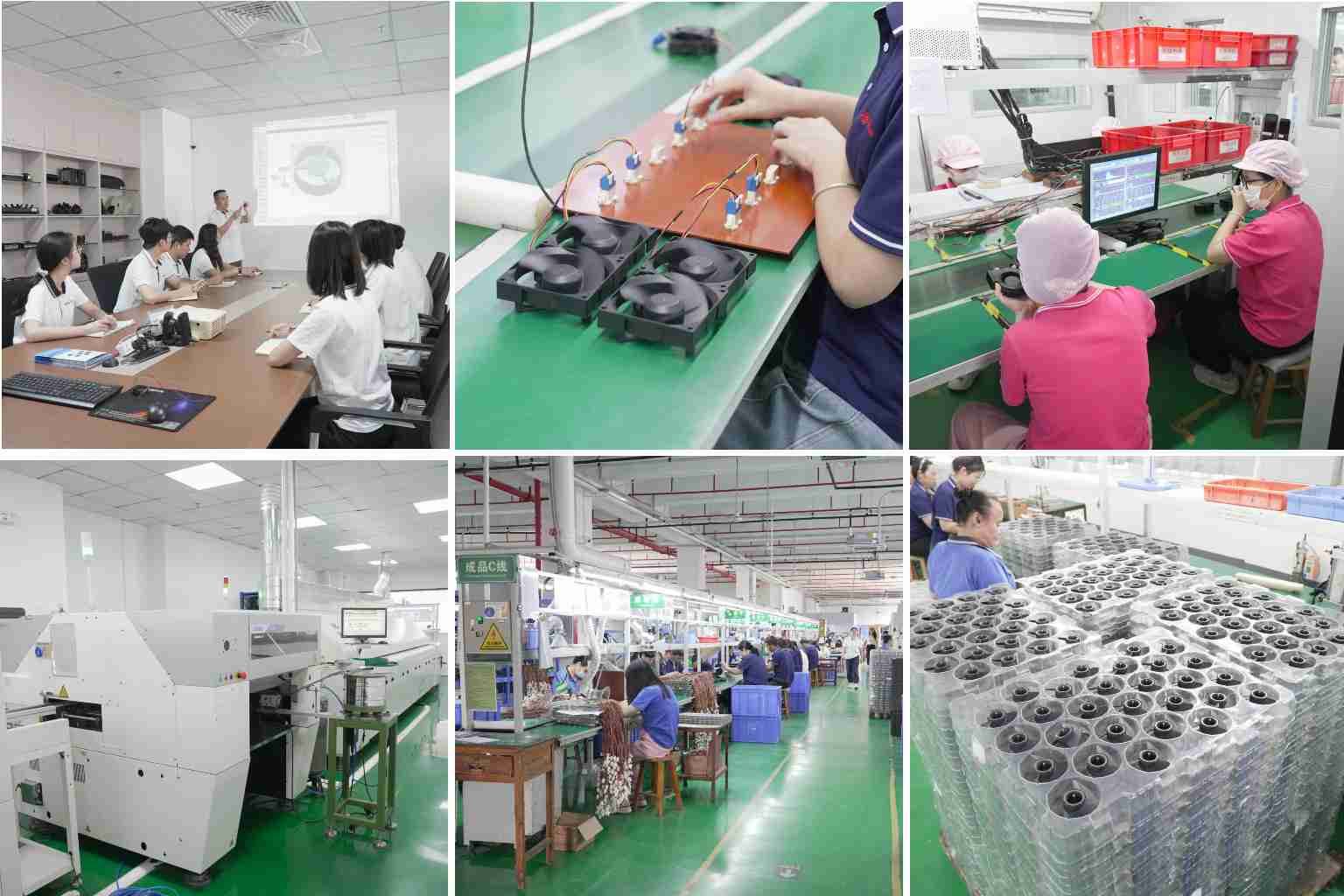

Guangdong Chungfo Electronic Technology Co., Ltd. has a number of high-quality management and technical personnel.
We strictly implement the IS09001 quality management system and have perfect testing equipment, such as wind tunnel pressure meter, constant temperature and humidity tester, RoHS tester, salt spray tester, Gauss meter, noise tester, etc.
According to the needs of customers, we can design and produce products that satisfy customers.
Our products are widely used in household appliances, ventilation equipment, medical equipment and communication equipment, sports equipment and other industries.
The products have obtained many safety certifications such as CE, UL, CUL, TUV, CCC, IATF16949,SGS, REACH, etC.
We have cooperated with many well-known enterprises at home and abroad, such as Midea, Chigo, Konka, Skyworth, Fenda, Electrolux, Samsung, Hitachi,etc.
FAQ
What voltage does the 8530 DC Blower Fan use?
The 8530 is designed for DC 12V operation, with an operating voltage range of 7–13V DC.
What is the rated speed of the 8530 blower fan?
The rated speed is 5000 RPM ±10%.
What is the noise level of the 8530?
The average noise level is 49.7 dBA under the specified test conditions.
What bearing does the 8530 use?
The 8530 uses a hydraulic bearing system.
Can the 8530 be used for PCB cooling?
Yes. Its compact centrifugal structure is suitable for directing cooling airflow toward PCBs and other heat-generating electronic components.
Can this blower fan be customized?
Yes. Chungfo Fan supports OEM and customized cooling fan projects, including electrical specifications, wiring, connectors, structure and application-specific requirements.
What is the operating temperature range?
The specified operating temperature range is -10°C to +70°C.
Does the 8530 have polarity protection?
Yes. The specification states that the motor circuit can withstand reverse connection of positive and negative polarity without damage.
Does the 8530 have locked-rotor protection?
Yes. The specification states that the motor can withstand a locked condition under rated voltage for 72 hours without fire or burning.
Request a 8530 DC Blower Fan Sample
Looking for a compact 12V DC blower fan for your next equipment cooling project?
Send us your required voltage, airflow, static pressure, installation space and application conditions. Chungfo Fan can help evaluate the appropriate blower configuration and provide OEM cooling solutions for your equipment.
