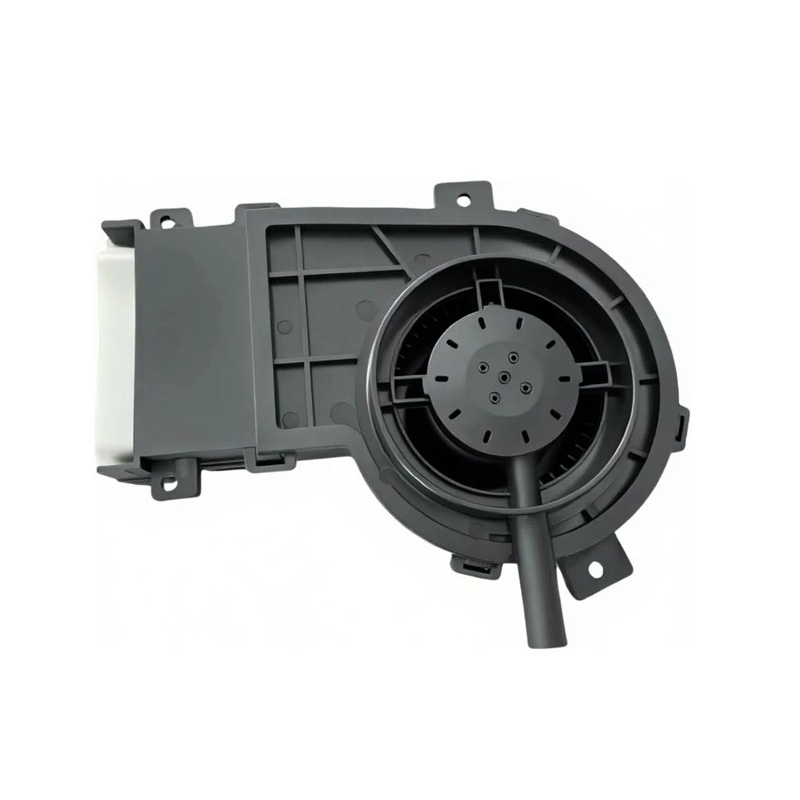

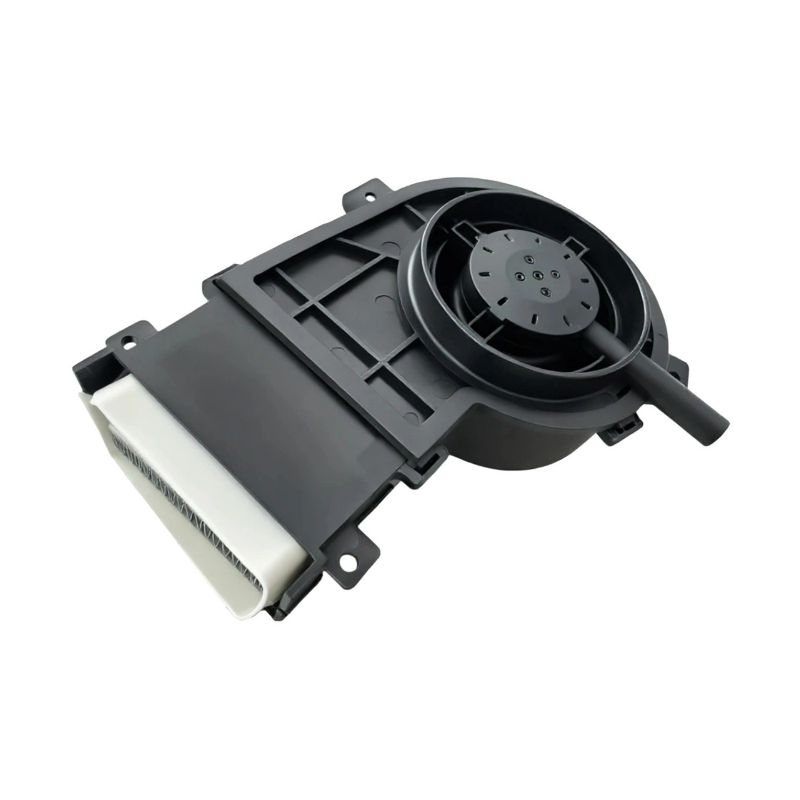

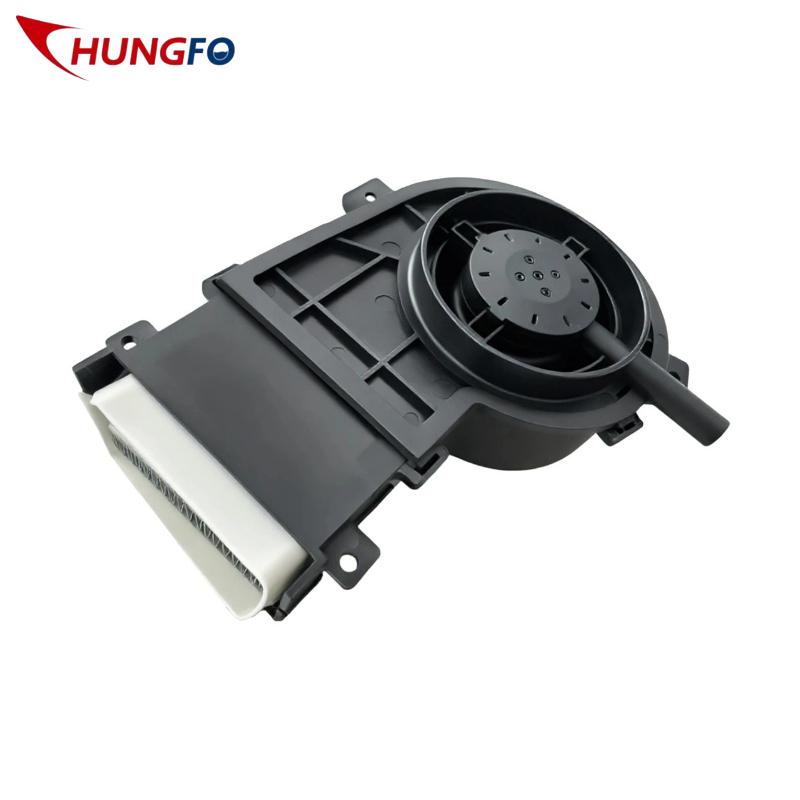

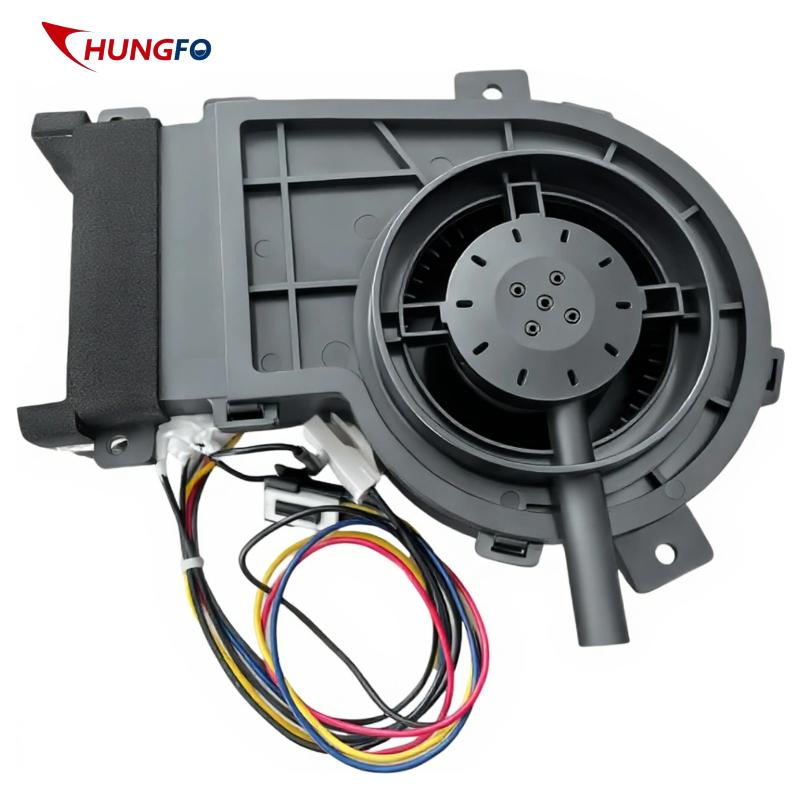

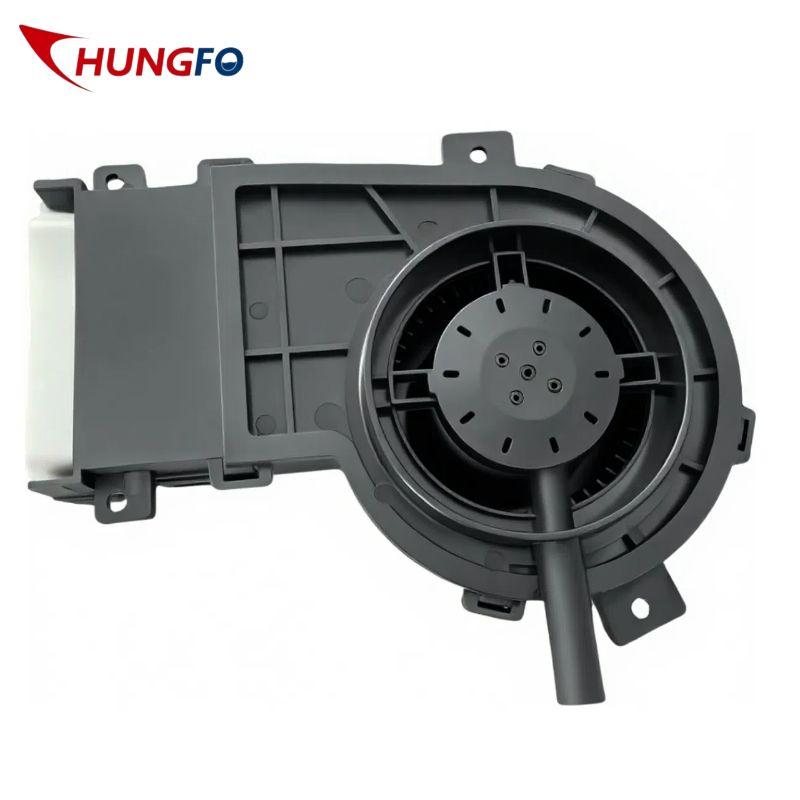

DC Brushless Ec Centrifugal Axial Cooling Fans 12v Blower

High pressure Air Cooling Exhaust Centrifugal Blower Fan with DC Motor, which has the ability to limit overload and ensure that the motor will not be overloaded when it exceeds its capacity.

Our advantage

Factory direct sales can reduce transportation, warehousing, logistics and other related distribution costs. These cost reductions are ultimately reflected in product prices.

About this item

• Material specification:

        FrameMaterial:PBT+Fiberglass

        Impeller Material:PBT+Fiberglass

        Shaft:Stainless Steel

        Bearing System:Sleeve Bearing

• Environment condition:

        Operating Temperature ------------------------------ -10℃-70℃

         Storage Temperature -------------------------------- -20℃-75℃

         Operating Humidity --------------------------------- 10%-80%RH

         Storage Humidity ------------------------------------- 10%-80%RH

• Protective Performance:

        Drop Test:In min packing, fan should withstand the force generated when dropping from 30cm high onto

        a 10mm wood board with any side facing down.

• Locked Protection:

        Locking the fan to stop it from running under rated voltage, the fan should keep this

        condition for 72hours without firing.

• Polarity Protection:

        Be capable of withstanding if reverse connection for positive

• Insulation Resistance:

        Min 10Mohm between fame and lead wire at 500VDC.

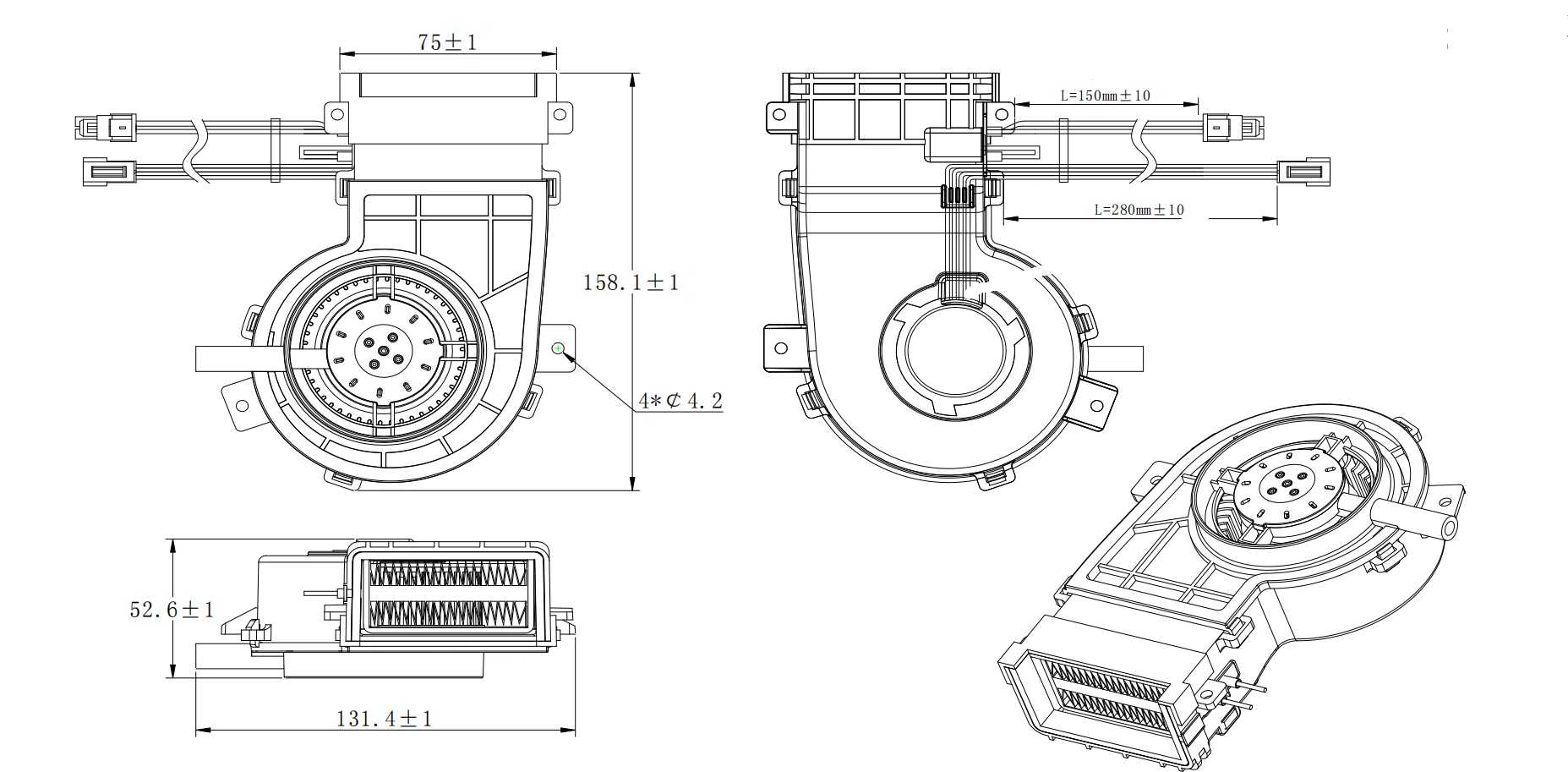

DC BLOWER FAN 150x75x35mm(4.92"x2.46"x1.15")

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• Long Life Cycle / Low Noise / High Efficiency;
• Offer a multi-speed controller to adjust voltage from 5V - 24V;
• Both the fan frame and the air blade are injection molded from PBT material;
• Have passed UL,CE certification, production of the products meet the ROHS requirements;
• Products smaller, lightweight, have low power consumption, and reduce heat generation.

More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Application

Washing and drying machines, air purifiers, clothes dryers

Control cabinet ventilation, duct-assisted air supply

Industrial heating/cooling systems

Internal cooling of medical equipment and laboratory instruments

Other electronic equipment that requires uniform air supply

• Customized projects related to Medical equipment, Air purifiers, 3D printers, cooling, ventilation and heat dissipation systems, and more.
• Create a cooling system to keep the home appliances system, office equipments and other electronic equipments running at the ideal temperature and the optimal speed.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
