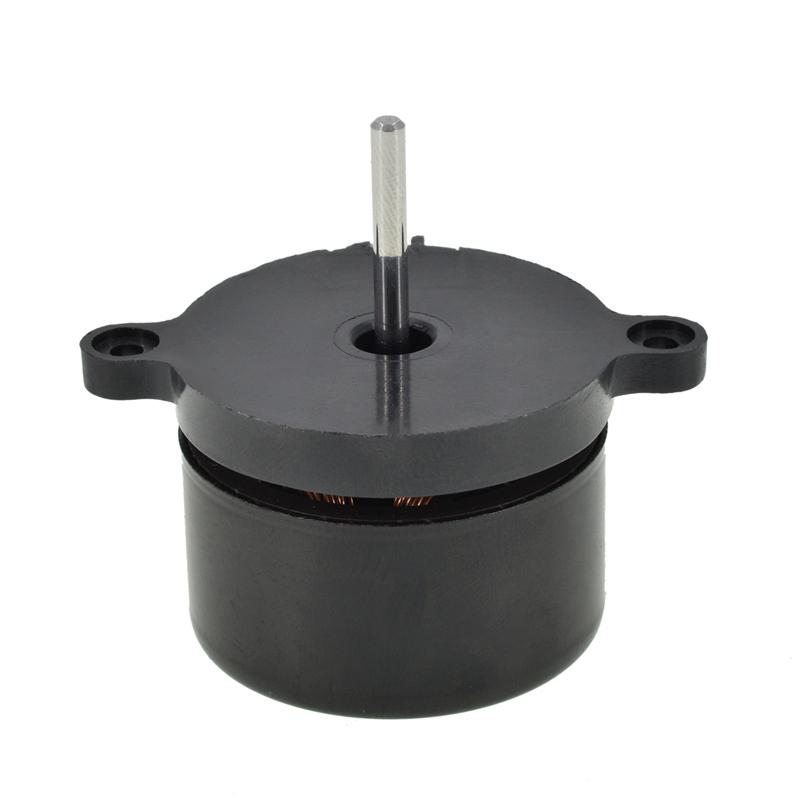

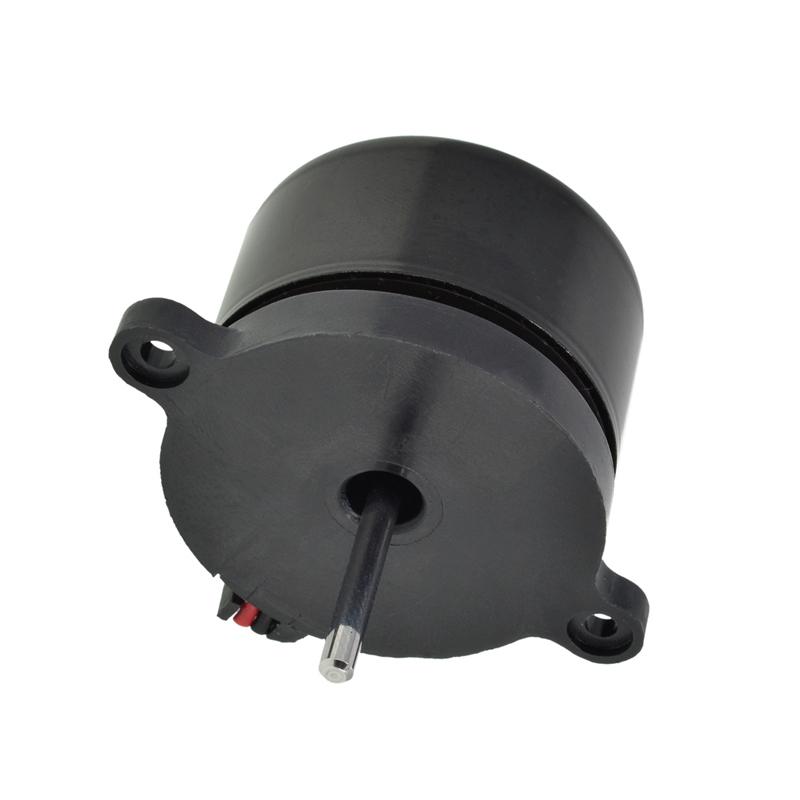

Electrical DC Cross Flow Ventilation Fan Motor

It replaces the mechanical commutator in general DC motor with semiconductor inverter to form DC motor without commutator.

  • Item NO.:

    M38-20
  • Order(MOQ):

    1000
  • Payment:

    T/T, L/C, Paypal, Western Union
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Shenzhen
  • Lead Time:

    20 working days
  • Weight:

    50g
  • Product Detail


Brushless DC Motor for Fan, Low Noise Brushless Motor Customizable. BLDC motor's superior torque-to-size ratio makes it more suitable for applications that are sensitive to the weight and size of the motor itself.


About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan motor for various products.

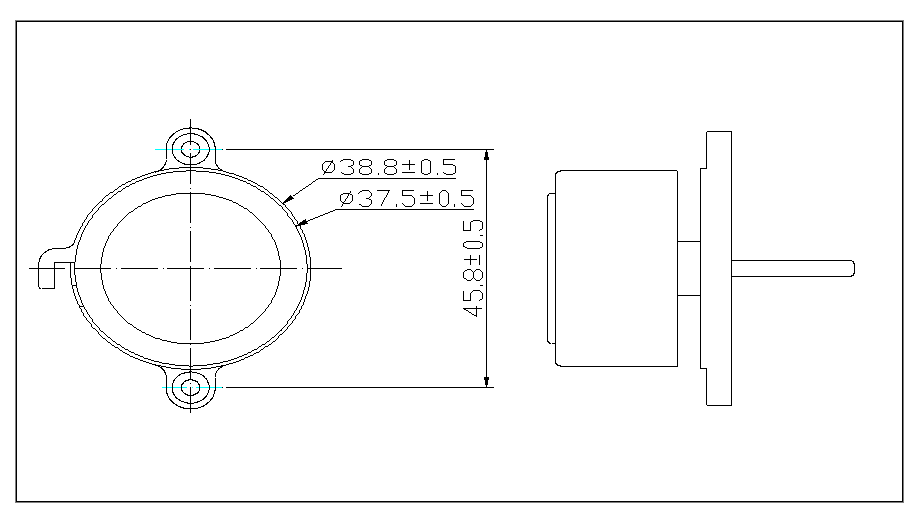

  • Dimension of the motor is 38 mm x 20 mm / The size of fan in inch is 1.49 in x 0.78 in.
  • Operating Voltage Range: DC 5 ~ 24V | Current / Speed / Shaft Diameter / Shaft Length: according to customer requirements.
  • Lead wire: (+): Red wire; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing; Life: working up to 50,000h at 25 degrees.
  • Please Comfirm the Motor Size, Voltage, Connector and other parameters before purchase.

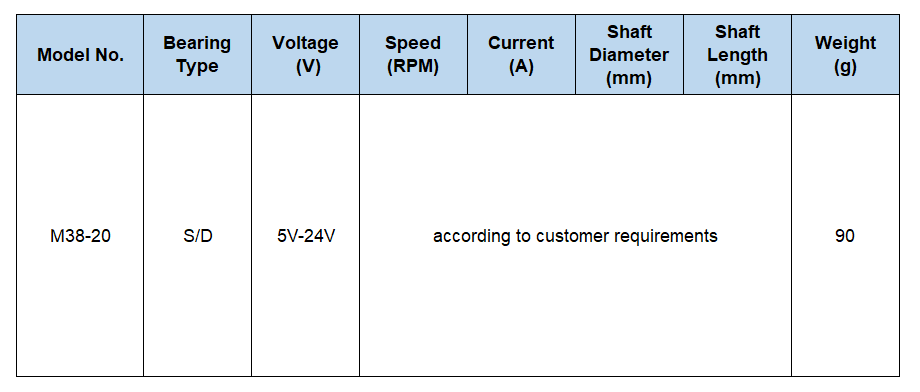

DC Brushless Motor M38-20





General Specification:

Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing






·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.



Feature

  • More electromagnets could be used on the stator for more precise control;
  • To use corrosion resistant material, to withstand higher or lower temperatures;
  • It is high performance motor that provides large torque per cubic inch over a vast sped rang;
  • There is no ionizing sparks from the commutator, and electromagnetic interference is also get reduced;
  • BLDC motors do not have brushes which make it more reliable, high life expectancies, and maintenance free operation.



More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Type Model Type Model
AC Shaded Pole Motor Z4815 DC Brushless Motor M25-20
Z6110 M38-20
Z6120 M6830
Z6130
Z8213
Z8220


Application

Brushless DC motor (BLDC) is widely used in daily life appliances, automobile industry, aviation, consumer electronics, medical electronics, industrial automation and other devices and instruments.

  • Customized projects related to air conditioning, printers, copiers, sports equipment and many other fields.
  • Create a good cooling and ventilation system to keep household appliances and other electronic equipment running at the ideal temperature and the best speed.



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.




Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.



Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.







Want to know about this product?

SEND A MESSAGE
Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products
Brushless Cross Flow Cooling System Fan DC Motor brushless dc motor
Brushless DC motor consists of synchronous motor and driver, which is a typical mechatronics product. Brushless motors have much less friction than brushed DC motors so they can operate at much higher speeds.
ReadMore+
DC Brushless Cross Flow Fan Electric Motor shaded pole motor
A low power dc motor with electronic commutation. Also known as commutatorless motor, DC motor without commutator. Compared with other types of motors, brushless motors have a very efficient operation, meaning lower power consumption at the same power output compared with brushed DC motors.
ReadMore+
Electric Air Ventilation Radiator Fan with CE Certificate axial cooling fan
Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.  The 7 fan blades designed to focus airflow and reduce noise, creating a torrent of air without creating excess noise.
ReadMore+
BLDC Ventilation System Radiator Axial Cooling Flow Fan air flow cooling fan
5V/12V/24V brushless ventilation fans, they are available to customers in various voltages, and are fabricated in accordance with international standards. The axial fan is easy to maintain, in addition, it is self-cleaning, which makes daily maintenance easier.
ReadMore+
Metal Air Cooler Ventilator Cross Flow Fan Industrial cross flow fan radiator
Low profile cross flow design provides generous air flow. The 12-volt high speed 3700rpm(max) and low energy consumption DC motor with excellent balance of performance and quietness.
ReadMore+
Refrigerator Air Cooler Exhaust Axial Fan with Fg/Rd/PWM axial exhaust fans industrial
120x120x25mm high performance compact axial fans are often used for cooling computers, copy machines, electronic instruments, machine tool equipment, and refrigeration systems.
ReadMore+
Electric Air Radiator 2500rpm Frameless Bracket Fan 92mm frameless fan
The innovative design of the fan blades improves the air flow and facilitates a highly efficient ventilation, the impeller was designed with a focus on minimzing the noise level. Soft material silicone feet provide better shock absorption.
ReadMore+

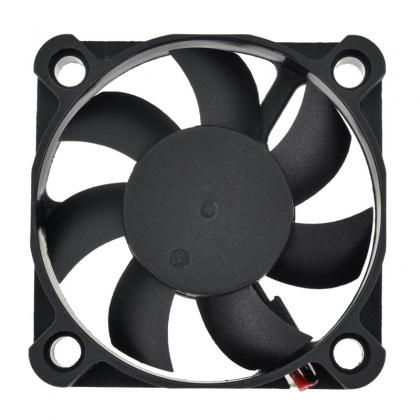

50X50X15mm Sleeve/Ball Bearing Axial Fan with CE Approved axial fan ce certificate
