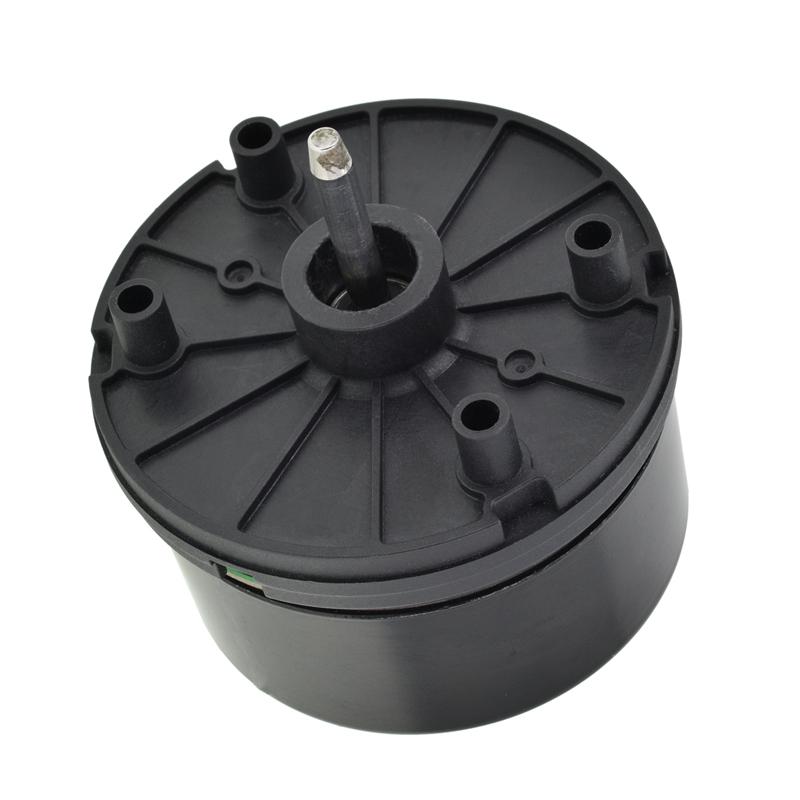

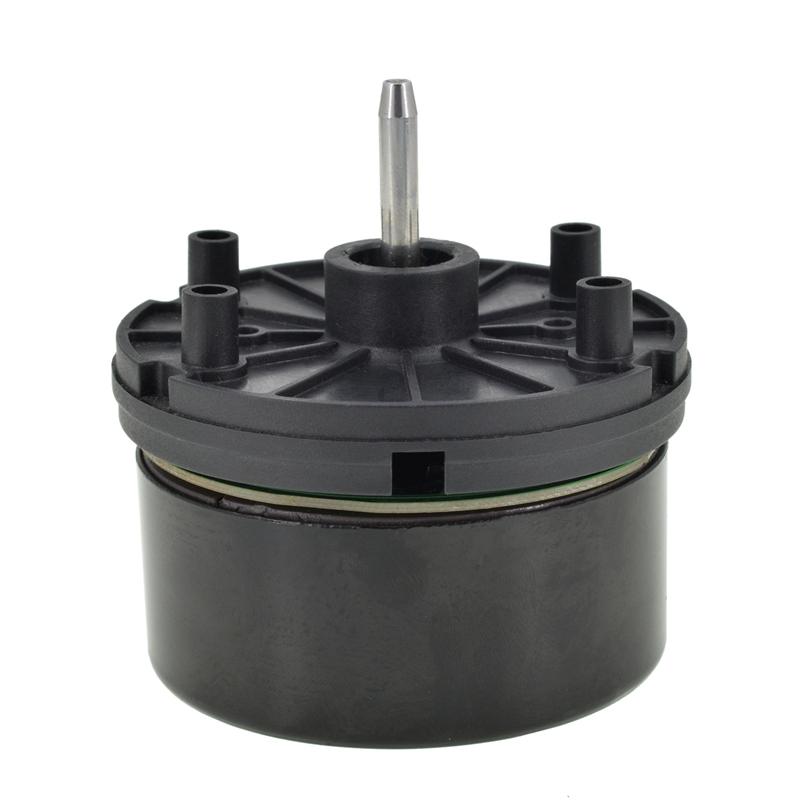

Brushless Cross Flow Cooling System Fan DC Motor

High rpm BLDC Outrunner Brushless Motor. Without brushes, brushless motors wear much less quickly than brushed DC motors, they operate with far less audible and electrical noise, and they are capable of much higher speeds.

Our advantage

Because we are a manufacturer, we can better control the entire supply chain process, from raw material procurement to product manufacturing and quality control, and more strictly manage and control quality. So we can provide better quality assurance.

About this item

• Designed for projects that requires cooling or ventilation; or as a replacement fan motor for various products.

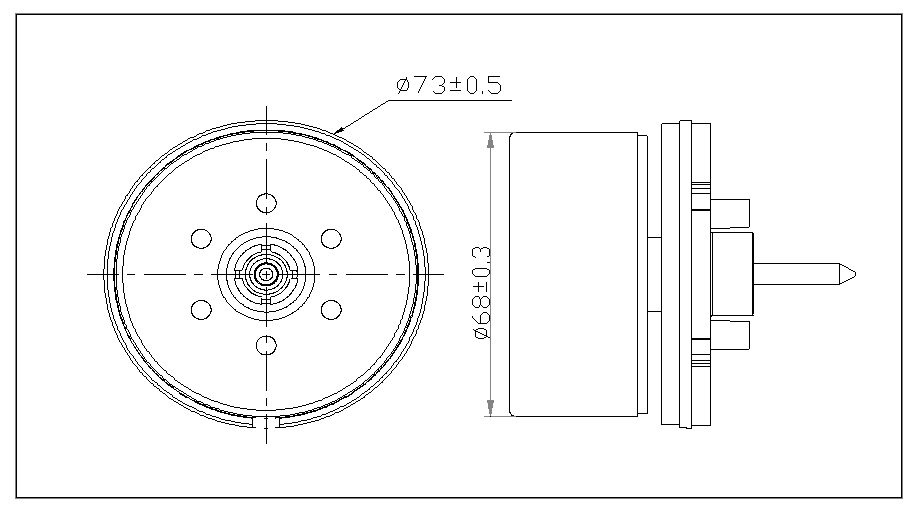

• Dimension of the motor is 68 mm x 30 mm / The size of fan in inch is 2.67 in x 1.18 in.
• Operating Voltage Range: DC 5 ~ 24V | Current / Speed / Shaft Diameter / Shaft Length: according to customer requirements.
• Lead wire: (+): Red wire; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing; Life: working up to 50,000h at 25 degrees.
• Please Comfirm the Motor Size, Voltage, Connector and other parameters before purchase.

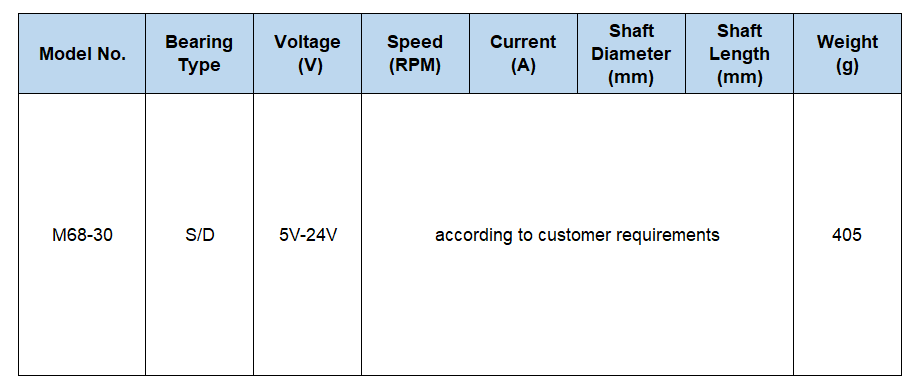

DC Brushless Motor M68-30

General Specification:

Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing

·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.

Feature

• There is no sparking and much less noise during operation;
• BLDC motor can operate at high-speed under any condition;
• Such motors cooled by conduction and no air flow are required for inside cooling;
• Its speed is determined by the frequency of current supply, not voltage, which is more efficient;
• As brushes are absent, the mechanical energy loss due to friction is less which enhanced efficiency.

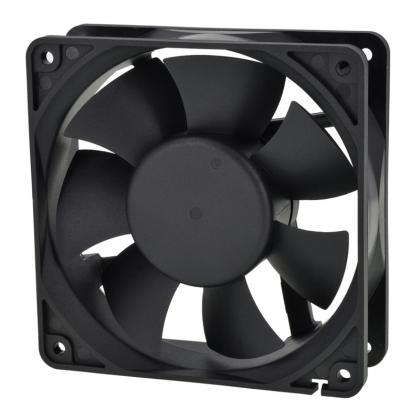

More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Application

Brushless DC motors are widely used. Such as printers, fax machines, copiers, hard disk drives, floppy disk drives, movie cameras, tape recorders, etc.

• Customized projects related to air conditioning, printers, copiers, sports equipment and many other fields.
• Create a good cooling and ventilation system to keep household appliances and other electronic equipment running at the ideal temperature and the best speed.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our motors are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.

Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.

Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
