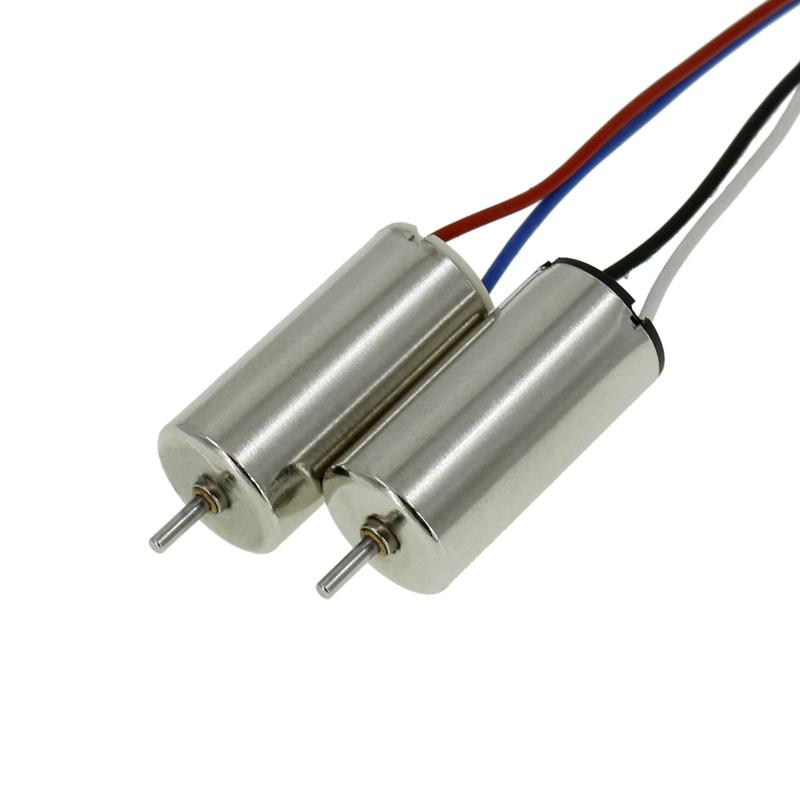

Electric Coreless Brush 7.4V PMDC Micro Spindle Motor

10x20mm length small brushes coreless motor, this type of motors are mostly used for Drones / Quadcopters / RC Helicopter Aircraft or Micro RC Planes.

  • Item NO.:

    10D1020
  • Order(MOQ):

    1000
  • Payment:

    T/T, L/C, Paypal, Western Union
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    20 working days
  • Weight:

    7.5g
  • Product Detail

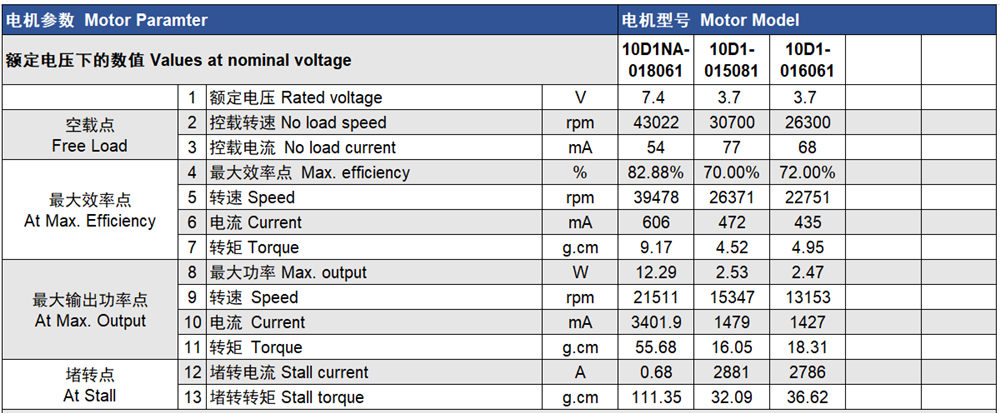

The output shaft length and performance parameters of the dc micro motor, EMC countermeasures (can be customized according to customer requirements) Performance characteristics.


About this item

  • Dimension of the motor is 10 mm(D) x 20 mm(L) / 0.39" (D) x 0.78" (L).

  • Shaft Diameter: 1.2 mm / 0.047" | Motor Diameter: 10 mm / 0.39" | Motor Length: 20 mm / 0.78".
  • Rated Voltage Range: DC 3.7V ~ 7.4V | Speed: 26000 ~ 43000 RPM (the actual speed may be high or low).
  • Weight: 7.5 g/pcs;  Lead wire: (+): Red wire; (-): Black wire.
  • Please Comfirm the Motor Size, Voltage, Current and other parameters before purchase.





DC Brushes Micro Motor 10D1020





    1.2mm axis brush spindle motor                   miniature dc vibration brush motor




 high performance coreless dc mini motor


permanent magnet coreless dc motor

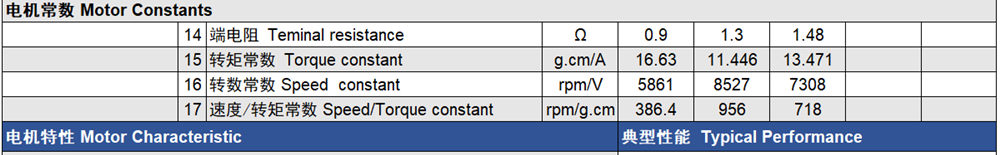

Coreless Motor Constants

electric drive coreless metal motor

614 dc micro brushed motor

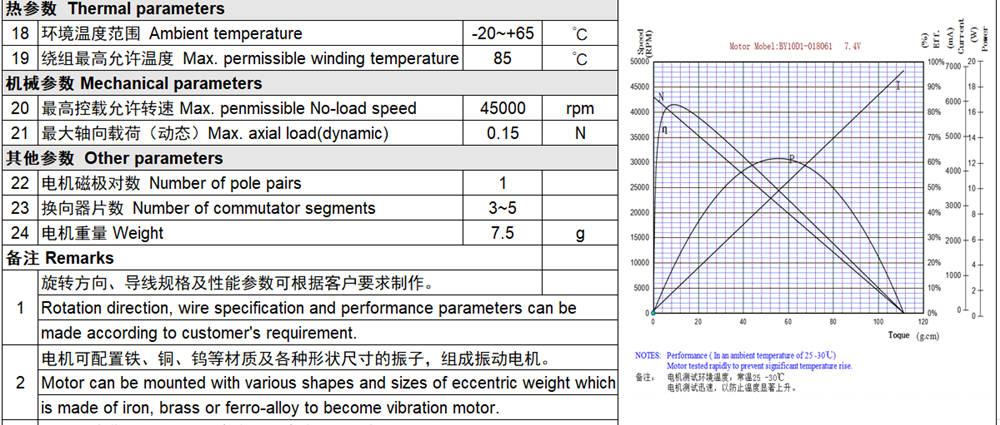

  • Rotation direction, wire specification and performance performance parameters can be made according to customer's requirement.

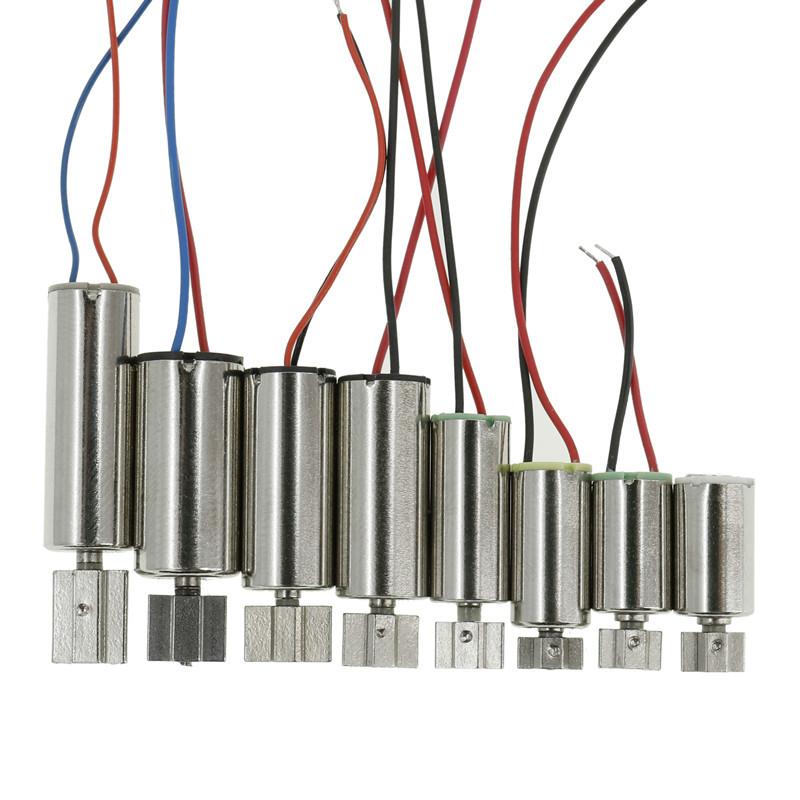

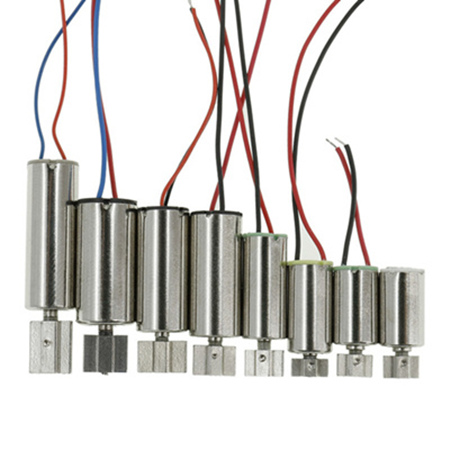

  • Motor can be mounted with various shapes and sizes of eccentric weight which is made of iron, brass or ferro-alloy to become vibration motor.

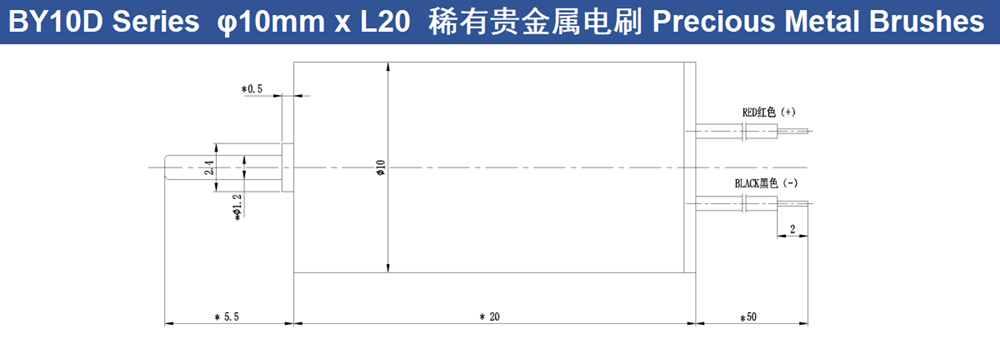

  • Dimension with " * " in the drawing can be adjusted according to customer's requirement.




Feature

  • Coreless rotor design;
  • Stable performance, run smoothly, low faulty rate;
  • Deliver high efficiency and constant power for a stable flight;
  • Wide selection range of output speed, strong universality and high efficiency of 95%;
  • Less electromagnetic interference, adopting high-quality brush and commutator structure, the commutation spark is small, and the additional anti-interference device can be omitted.




More Models

These micro motors come in a variety of different sizes and can be adapted to various applications to meet customer needs.

Type

Model

Size

Type

Model

Size

DC Brushes Micro Motor

6A610

6x10mm(0.24"x0.39")

DC Brushes Micro Motor

8A816

8x16mm(0.31"x0.63")

6B612

6x12mm(0.24"x0.47")

8D820

8x20mm(0.31"x0.79")

6C614

6x14mm(0.24"x0.55")

8G8520

8.5x20mm(0.33"x0.79")

6D614

6x14mm(0.24"x0.55")

8F8523

8.5x23mm(0.33"x0.91")

6F615

6x15mm(0.24"x0.59")

10A1013

10x13mm(0.39"x0.51")

7A716

7x16mm(0.27"x0.63")

10B1015

10x15mm(0.39"x0.59")

7B720

7x20mm(0.27"x0.79")

10D1020

10x20mm(0.39"x0.79")




Application

Can be widely used in electric toothbrushes, medical appliances, small household appliances, aviation models, mobile phone motors, drones, robots and electric toys.

Small Brush Motor for Helicopter Model Aircraft Toys



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our motors are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.

China Micro Coreless Motor Suppliers/Factory



Want to know about this product?

SEND A MESSAGE
Leave A Message

We value your support very much, please fill out the inquiry box below and you will have the opportunity to receive free samples and professional services.
