High Speed 50000RPM Coreless Brushes DC Magnetic Motor

PMDC motor design is based on permanent magnets in place of a wound field to enable a lighter, more compact and efficient motor with wider speed range.

  • Item NO.:

    6F615
  • Order(MOQ):

    1000
  • Payment:

    T/T, L/C, Paypal, Western Union
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    20 working days
  • Weight:

    1.9g
  • Product Detail


Brush DC motor technology offers the distinct advantages of low friction, low starting voltages, absence of iron losses, high efficiency, good thermal dissipation and linear torque-speed function.


About this item

  • Dimension of the motor is 6 mm(D) x 15 mm(L) / 0.24" (D) x 0.59" (L).

  • Shaft Diameter: 0.8 mm / 0.03" | Motor Diameter: 6 mm / 0.24" | Motor Length: 15 mm / 0.59".

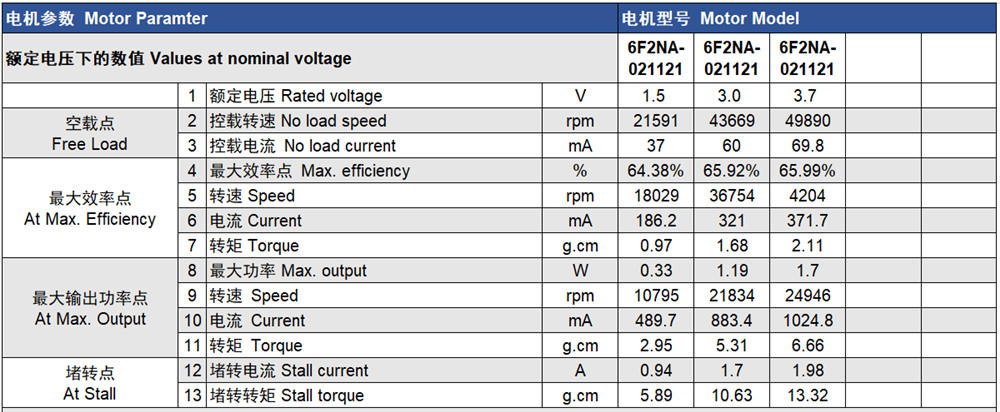

  • Rated Voltage Range: DC 1.5 ~ 3.7V | Speed: 20000 ~ 50000 RPM (the actual speed may be high or low).
  • Weight: 1.9 g/pcs;  Lead wire: (+): Red wire; (-): Black wire.
  • Please Comfirm the Motor Size, Voltage, Current and other parameters before purchase.

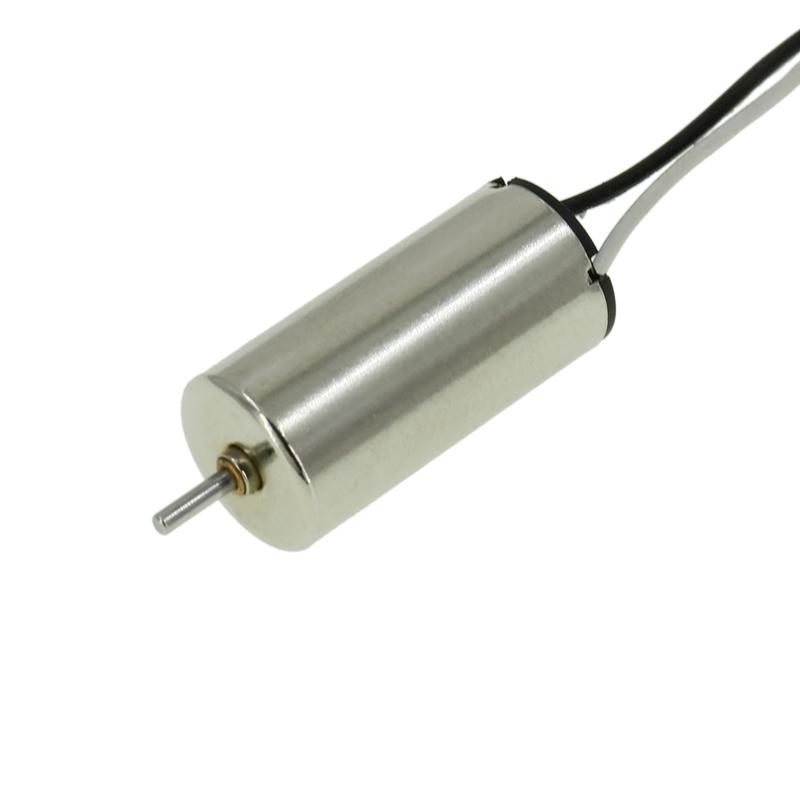

DC Brushes Micro Motor 6F615





    Metal Brush Coreless DC Motor for Precision Instruments                   3.7 Volt Micro Coreless Brushed Motor for Electric Toys




 6mm dc brush coreless vibrater motor


High Speed Electric Coreless DC Brush Micro Motor

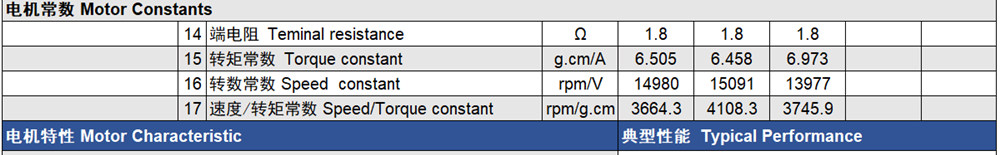

Coreless Motor Constants

Micro Vibration Motor for Robot Drone

614 dc micro brushed motor

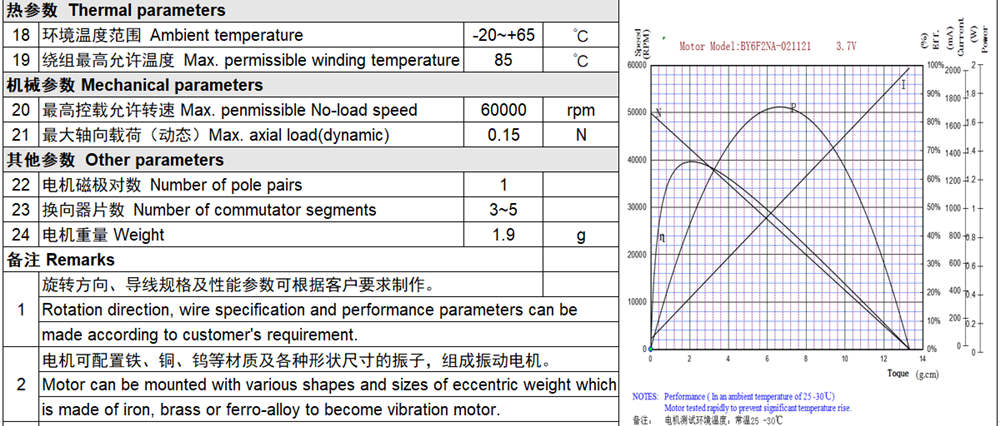

  • Rotation direction, wire specification and performance performance parameters can be made according to customer's requirement.
  • Motor can be mounted with various shapes and sizes of eccentric weight which is made of iron, brass or ferro-alloy to become vibration motor.

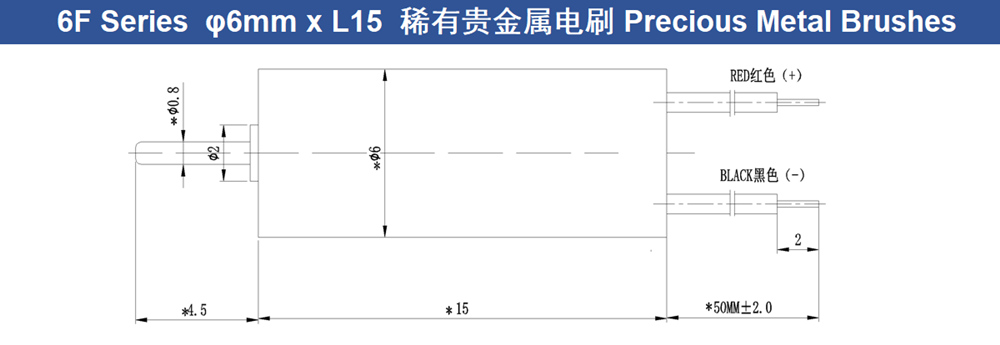

  • Dimension with " * " in the drawing can be adjusted according to customer's requirement.




Feature

  • High motion efficiency;
  • Low noise, low power consumption, sensitive startup;
  • With High speed running achieves greater output torque;
  • Simple, compact and practical design provides better using experience;
  • Our Motor was made of high quality material, stable and durable, professional manufacturing, high reliability.

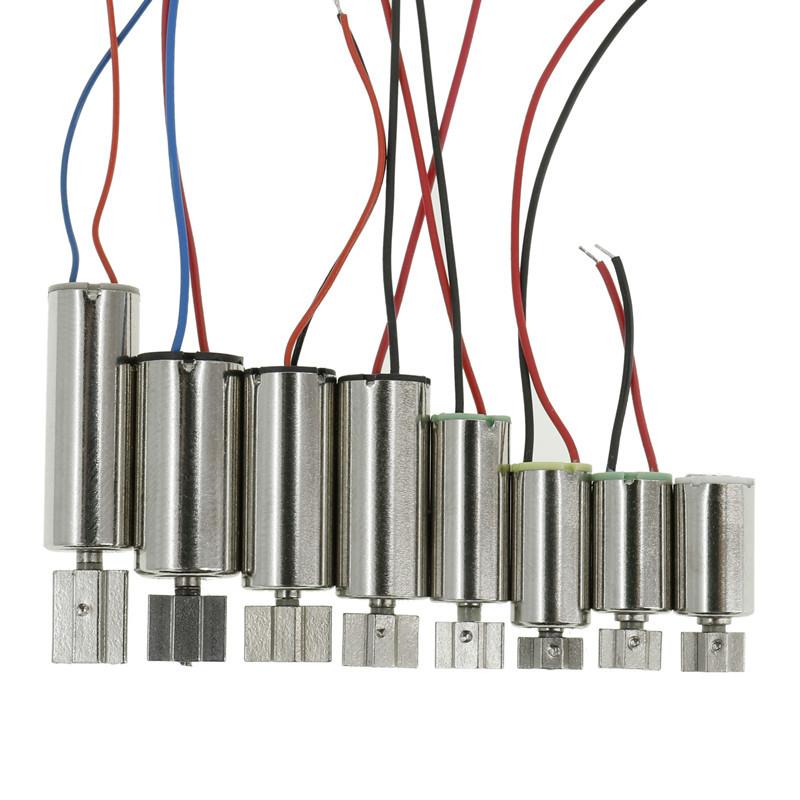

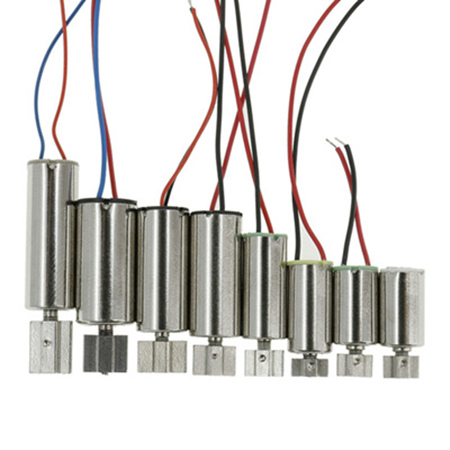

More Models

These micro motors come in a variety of different sizes and can be adapted to various applications to meet customer needs.

Type

Model

Size

Type

Model

Size

DC Brushes Micro Motor

6A610

6x10mm(0.24"x0.39")

DC Brushes Micro Motor

8A816

8x16mm(0.31"x0.63")

6B612

6x12mm(0.24"x0.47")

8D820

8x20mm(0.31"x0.79")

6C614

6x14mm(0.24"x0.55")

8G8520

8.5x20mm(0.33"x0.79")

6D614

6x14mm(0.24"x0.55")

8F8523

8.5x23mm(0.33"x0.91")

6F615

6x15mm(0.24"x0.59")

10A1013

10x13mm(0.39"x0.51")

7A716

7x16mm(0.27"x0.63")

10B1015

10x15mm(0.39"x0.59")

7B720

7x20mm(0.27"x0.79")

10D1020

10x20mm(0.39"x0.79")




Application

Brushed micro motors are mainly used in repeaters, cameras, vacuum cleaners, frequency converters, electric toys, remote control airplanes, smart toys, razors, electric toothbrushes, electronic appliances and so on.

Coreless Brush Motor for RC Quadcopter



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our motors are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.
