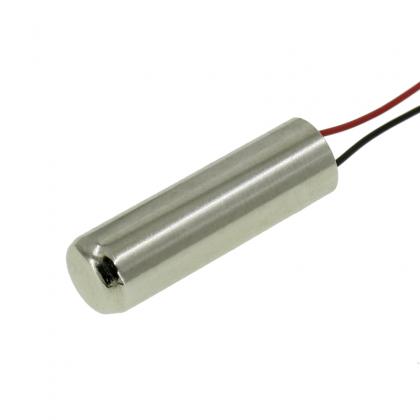

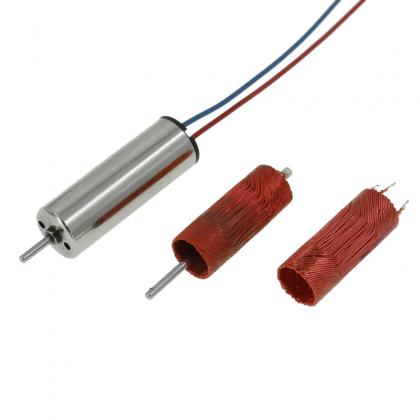

Micro 6mm Brushes Vibration Coreless PMDC Toy Motor

DC brushed torque motors (consisting of a rotor, stator, and brush ring assembly) are designed in as an integral part of a system thus saving weight and space.

  • Item NO.:

    6A610
  • Order(MOQ):

    1000
  • Payment:

    T/T, L/C, Paypal, Western Union
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    20 working days
  • Weight:

    1.2g
  • Product Detail


Brushed DC Motor has accumulated 20 years of technical advantages, has a mature motor customization platform, customization period is short, reasonable cost.


About this item

  • Dimension of the motor is 6 mm(D) x 10 mm(L) / 0.24" (D) x 0.40" (L).

  • Shaft Diameter: 0.8 mm / 0.03" | Motor Diameter: 6 mm / 0.24" | Motor Length: 10.3 mm / 0.40".
  • Rated Voltage Range: DC 3.0 ~ 4.5V | Speed: 24000 ~ 53000 RPM (the actual speed may be high or low).
  • Weight: 1.2 g/pcs;  Lead wire: (+): Red wire; (-): Black wire.
  • Please Comfirm the Motor Size, Voltage, Current and other parameters before purchase.





DC Brushes Micro Motor 6C614





    610 Coreless Micro DC Motor       DC Micro Motor Series




 4.5volt coreless brush dc micro motor

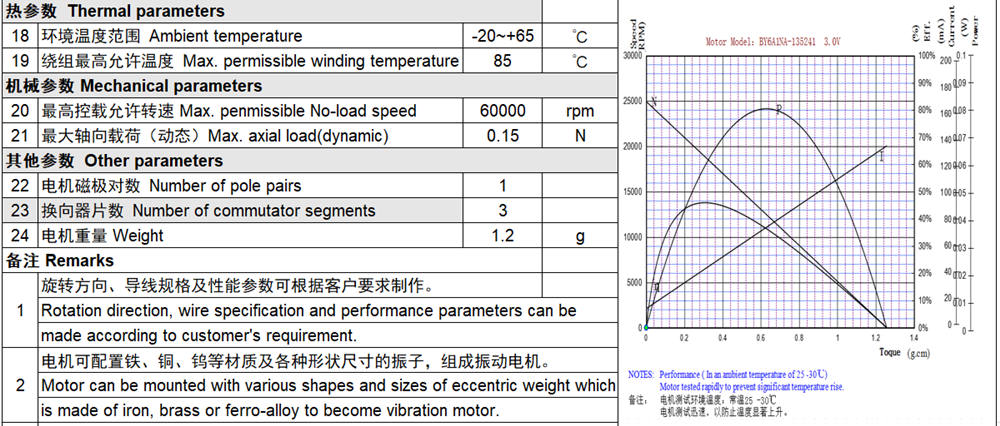

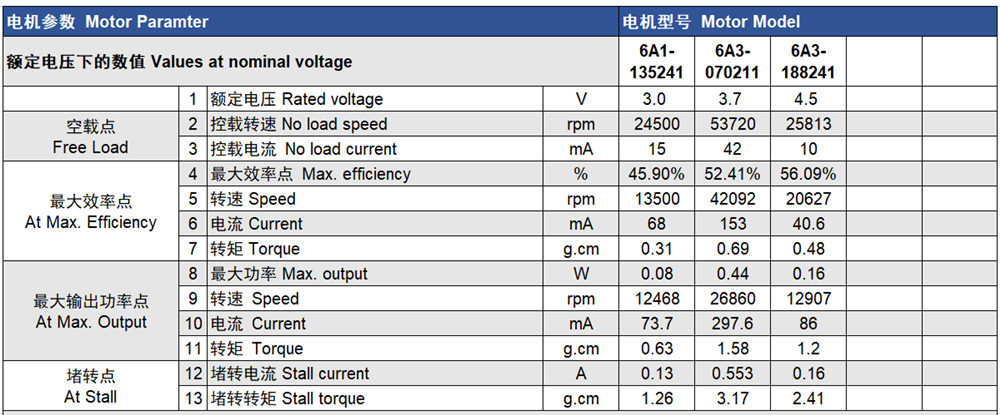

610 DC Motor Paramter

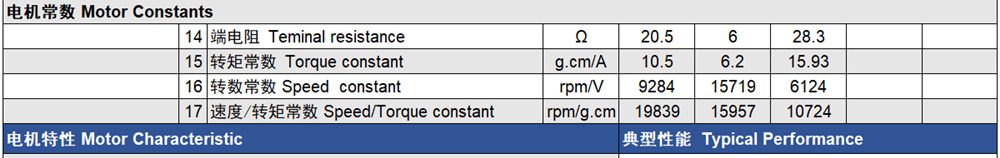

DC Motor Constants

high rpm electric miniature dc motor


  • Rotation direction, wire specification and performance performance parameters can be made according to customer's requirement.
  • Motor can be mounted with various shapes and sizes of eccentric weight which is made of iron, brass or ferro-alloy to become vibration motor.

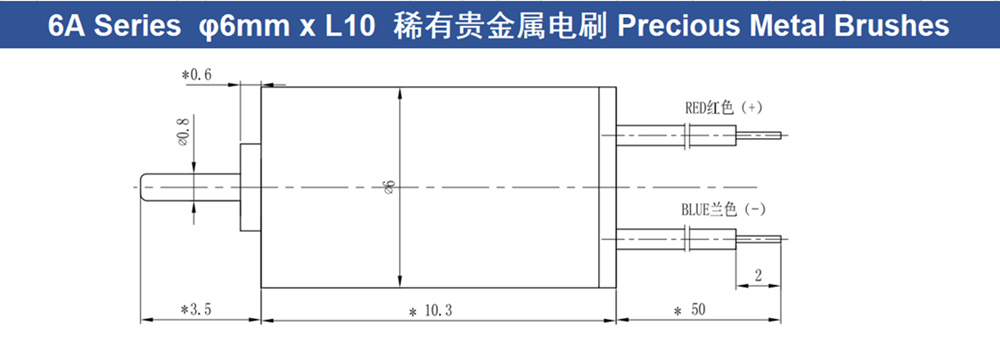

  • Dimension with " * " in the drawing can be adjusted according to customer's requirement.




Feature

  • Low rotor inertia;
  • This motor uses pure copper wire coil, low heat and low loss;
  • Small size, light weight, simple installation and easy maintenance;
  • Our products use superb process technology, have good quality and low price, cost-effective;
  • High motion efficiency, that allows you to build a more compact, precise and energy-efficient solution.

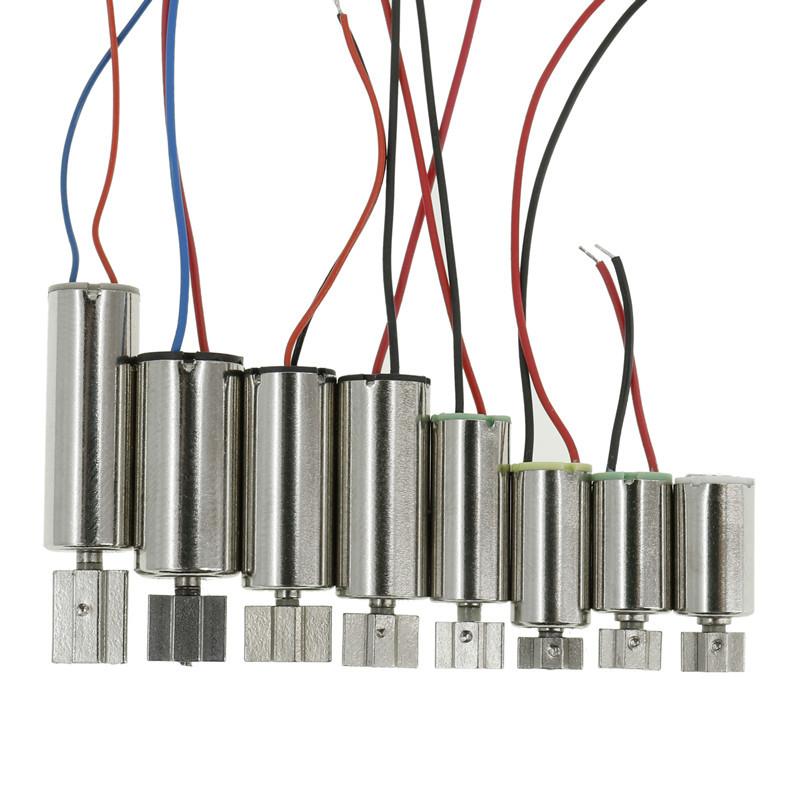

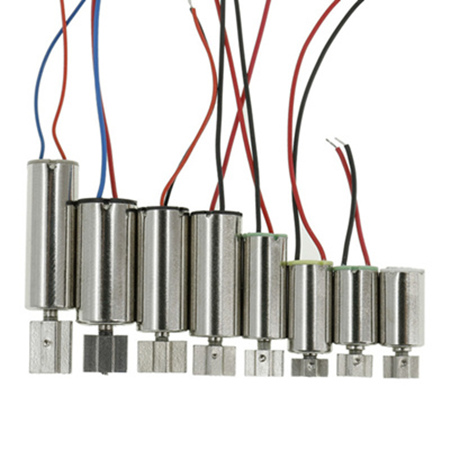

More Models

These micro motors come in a variety of different sizes and can be adapted to various applications to meet customer needs.

Type

Model

Size

Type

Model

Size

DC Brushes Micro Motor

6A610

6x10mm(0.24"x0.39")

DC Brushes Micro Motor

8A816

8x16mm(0.31"x0.63")

6B612

6x12mm(0.24"x0.47")

8D820

8x20mm(0.31"x0.79")

6C614

6x14mm(0.24"x0.55")

8G8520

8.5x20mm(0.33"x0.79")

6D614

6x14mm(0.24"x0.55")

8F8523

8.5x23mm(0.33"x0.91")

6F615

6x15mm(0.24"x0.59")

10A1013

10x13mm(0.39"x0.51")

7A716

7x16mm(0.27"x0.63")

10B1015

10x15mm(0.39"x0.59")

7B720

7x20mm(0.27"x0.79")

10D1020

10x20mm(0.39"x0.79")




Application

DC brushless coreless motor is suitable for beauty products, remote control toys, electric toothbrushes, USB fans, intelligent electronic products, etc.

Coreless Micro Motor for RC Quadcopter



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our motors are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.
