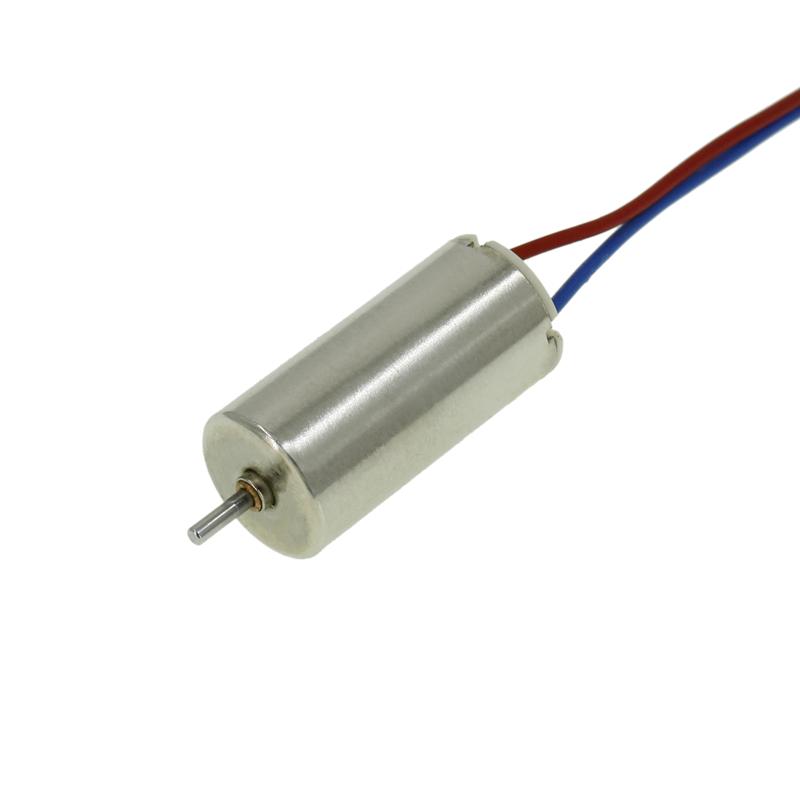

3.7V DC Brushed Coreless Motor for Model Aircraft

High Speed 40,000rpm brushes DC coreless motor consists of a rotating armature, and a stationary stator.

  • Item NO.:

    6D614
  • Order(MOQ):

    1000
  • Payment:

    T/T, L/C, Paypal, Western Union
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    20 working days
  • Weight:

    1.8g
  • Product Detail


DC brushed motors for toys are designed for high starting torque in continuous movement. Starting, stopping and accelerating are done quickly.

Our advantage


We are committed to the use of the highest quality materials and the most advanced technology to ensure that our packaging protects the product while exhibiting outstanding appearance and texture.

About this item

  • Dimension of the motor is 6 mm(D) x 14 mm(L) / 0.24" (D) x 0.55" (L).

  • Shaft Diameter: 0.8 mm / 0.03" | Motor Diameter: 6 mm / 0.24" | Motor Length: 14.2 mm / 0.55".
  • Rated Voltage Range: DC 3.7V | Speed: 40000 RPM (the actual speed may be high or low).
  • Weight: 1.8 g/pcs;  Lead wire: (+): Red wire; (-): Black wire.
  • Please Comfirm the Motor Size, Voltage, Current and other parameters before purchase.





DC Brushes Micro Motor 6D614





    Factory Sale 40,000rpm Brush Drive Dc Motor       Micro brush motor for vibrating massage chair




 dc mini vibration coreless brushed motor


Micro 614 Coreless Motor

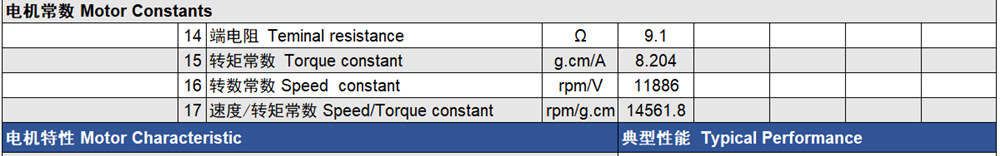

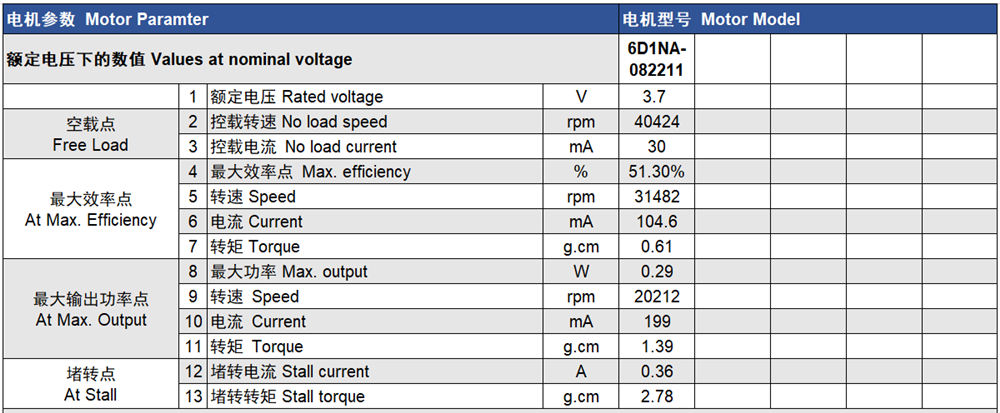

Coreless Motor Constants

Diameter 6mm 3.7V micro driving coreless brush motor

614 dc micro brushed motor

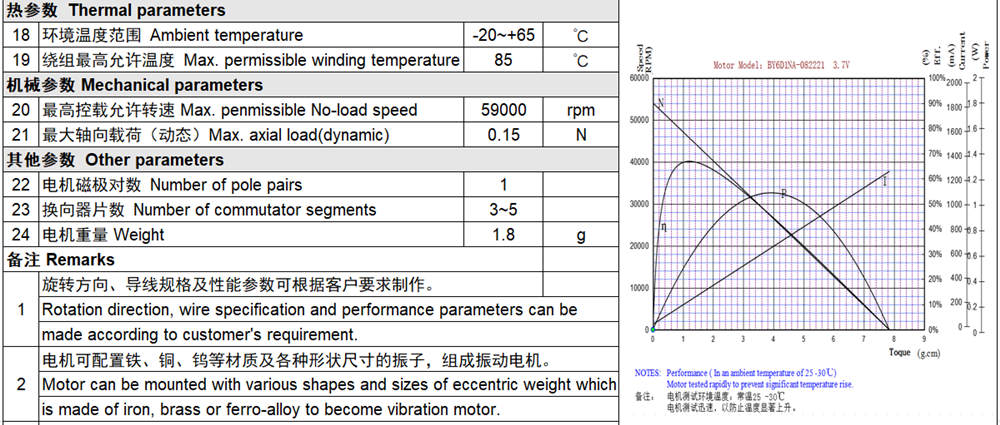

  • Rotation direction, wire specification and performance performance parameters can be made according to customer's requirement.
  • Motor can be mounted with various shapes and sizes of eccentric weight which is made of iron, brass or ferro-alloy to become vibration motor.

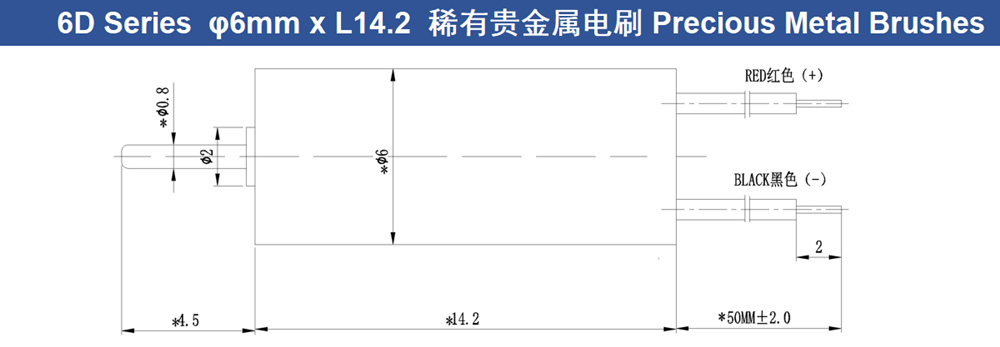

  • Dimension with " * " in the drawing can be adjusted according to customer's requirement.




Feature

  • Energy efficient coreless motor design;
  • Compact structure, ultra-low sound and stable operation;
  • Use a copper alloy housing with better electromagnetic interference protection;
  • Coreless Motor can be used in model aircraft helicopter and a variety of electric drive products;
  • Powerful motors perform great when speed up, quickly increase or decrease altitude, and stop immediately.

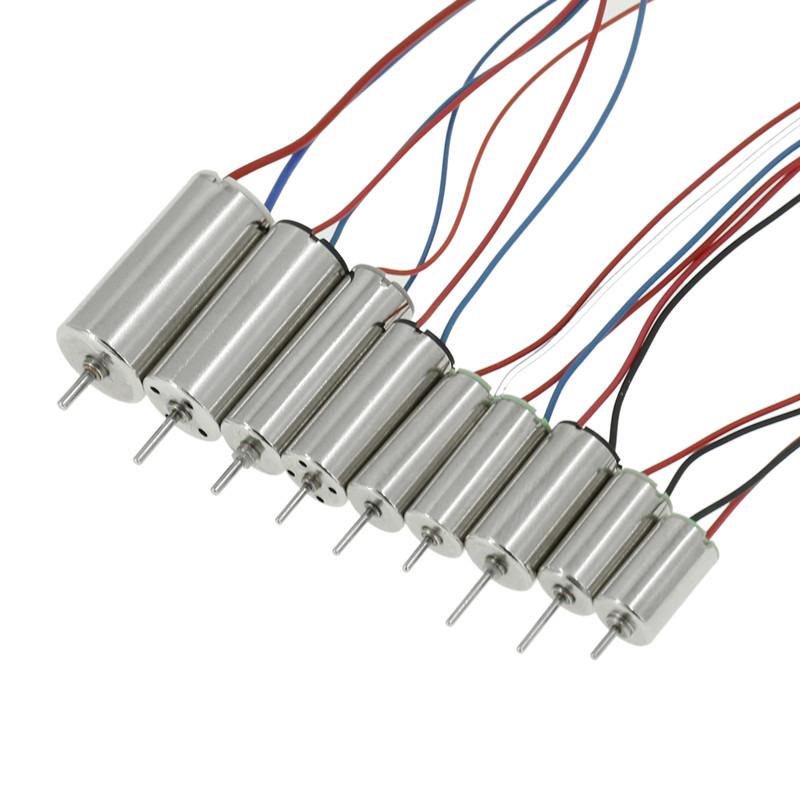

More Models

These micro motors come in a variety of different sizes and can be adapted to various applications to meet customer needs.

Type

Model

Size

Type

Model

Size

DC Brushes Micro Motor

6A610

6x10mm(0.24"x0.39")

DC Brushes Micro Motor

8A816

8x16mm(0.31"x0.63")

6B612

6x12mm(0.24"x0.47")

8D820

8x20mm(0.31"x0.79")

6C614

6x14mm(0.24"x0.55")

8G8520

8.5x20mm(0.33"x0.79")

6D614

6x14mm(0.24"x0.55")

8F8523

8.5x23mm(0.33"x0.91")

6F615

6x15mm(0.24"x0.59")

10A1013

10x13mm(0.39"x0.51")

7A716

7x16mm(0.27"x0.63")

10B1015

10x15mm(0.39"x0.59")

7B720

7x20mm(0.27"x0.79")

10D1020

10x20mm(0.39"x0.79")




Application

Brushes coreless DC micro motor can be mainly applied to various aircrafts, including aviation, aerospace and model airplanes.

driving coreless brush micro drone dc motor



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our motors are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.

Electric Micro DC Motor Manufacturer



Want to know about this product?

SEND A MESSAGE
Leave A Message

We value your support very much, please fill out the inquiry box below and you will have the opportunity to receive free samples and professional services.
