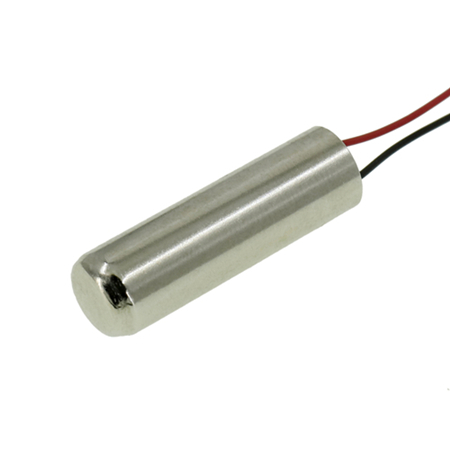

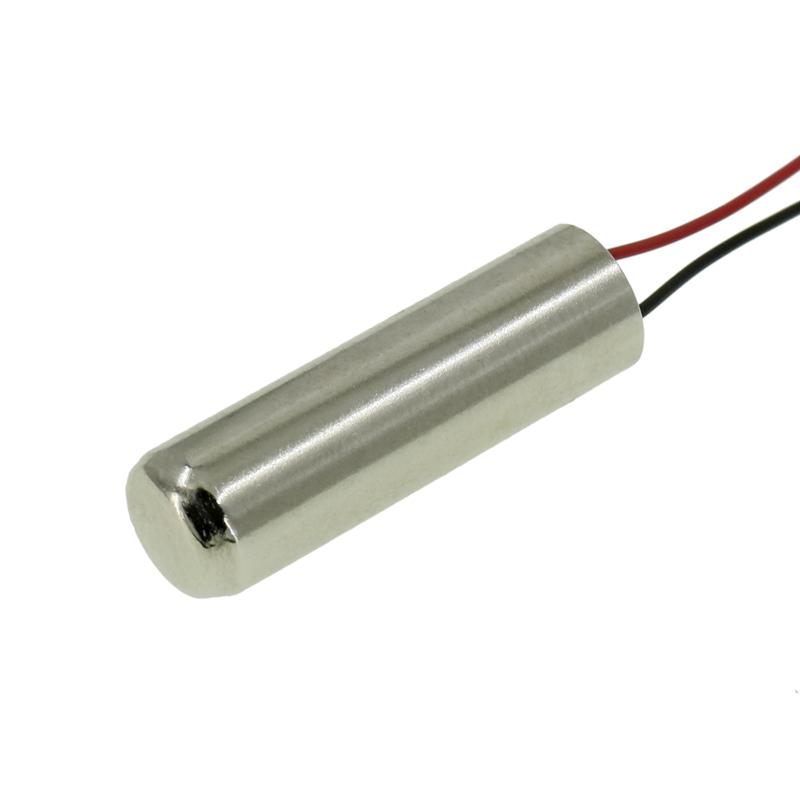

Low Noise Coreless Vibration Electric Toothbrush DC Motor

Depending on the connections of the field to the power supply, the speed and torque characteristics of a brushed motor can be altered to provide steady speed or speed inversely proportional to the mechanical load.

About this item

• Dimension of the motor is 7 mm(D) x 20 mm(L) / 0.27" (D) x 0.78" (L).

• Shaft Diameter: 1.0 mm / 0.04" | Motor Diameter: 7 mm / 0.27" | Motor Length: 20 mm / 0.78".
• Rated Voltage Range: DC 3.0V ~ 3.7V | Speed: 30000 ~ 42000 RPM (the actual speed may be high or low).
• Weight: 3.2 g/pcs;  Lead wire: (+): Red wire; (-): Black wire.
• Please Comfirm the Motor Size, Voltage, Current and other parameters before purchase.

DC Brushes Micro Motor 7B720

• Rotation direction, wire specification and performance performance parameters can be made according to customer's requirement.
• Motor can be mounted with various shapes and sizes of eccentric weight which is made of iron, brass or ferro-alloy to become vibration motor.

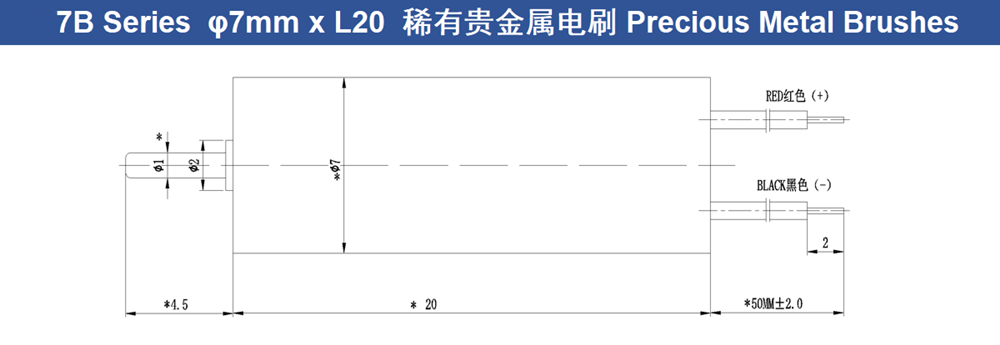

• Dimension with " * " in the drawing can be adjusted according to customer's requirement.

Feature

• Customizable, fast motor response;
• Very small electric consumption, strong vibration;
• High performance, strong power, long service time;
• Simple maintenance, high efficiency, strong reliability and low wear rate;
• Made of high-quality materials, with high hardness, reduced friction, make the motor run faster, greatly reduced consumption and saving energy.

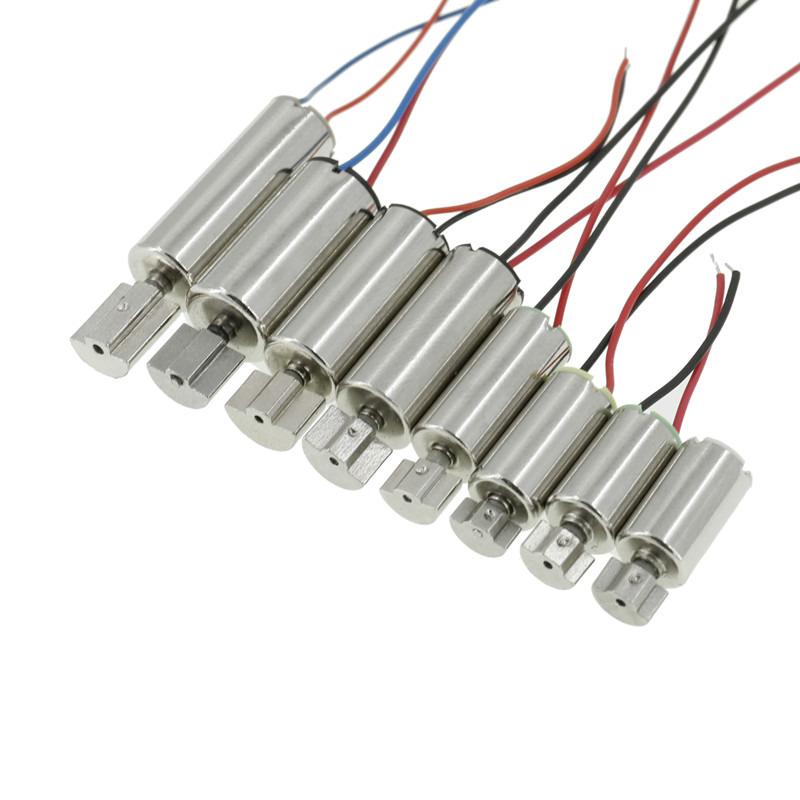

More Models

These micro motors come in a variety of different sizes and can be adapted to various applications to meet customer needs.

Application

It can be used in many fields such as electric toys, USB fans, beauty products, game machine handles, electric toothbrushes, hair dryers, massagers, household appliances and so on.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our motors are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.
