Massage Instrument Vibration Coreless Micro DC Electric Motor

Micro dc motor has the characteristics of remarkable energy saving, electricity saving, low noise, low voltage starting, strong vibration force and high efficiency, delicate appearance and light weight, which can be easily installed.

  • Item NO.:

    8A816
  • Order(MOQ):

    1000
  • Payment:

    T/T, L/C, Paypal, Western Union
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    20 working days
  • Weight:

    3.9g
  • Product Detail


Using high-quality pure copper coil, it has good conductivity, low starting voltage and less heat generation during operation, so that the motor can meet the requirements of high speed, with longer service life, economical price and competitiveness.


About this item

  • Dimension of the motor is 8 mm(D) x 16 mm(L) / 0.31" (D) x 0.62" (L).

  • Shaft Diameter: 1.0 mm / 0.04" | Motor Diameter: 8 mm / 0.31" | Motor Length: 16.8 mm / 0.66".
  • Rated Voltage Range: DC 3.0V  | Speed: 47000 ~ 51000 RPM (the actual speed may be high or low).
  • Weight: 3.9 g/pcs;  Lead wire: (+): Red wire; (-): Black wire.
  • Please Comfirm the Motor Size, Voltage, Current and other parameters before purchase.

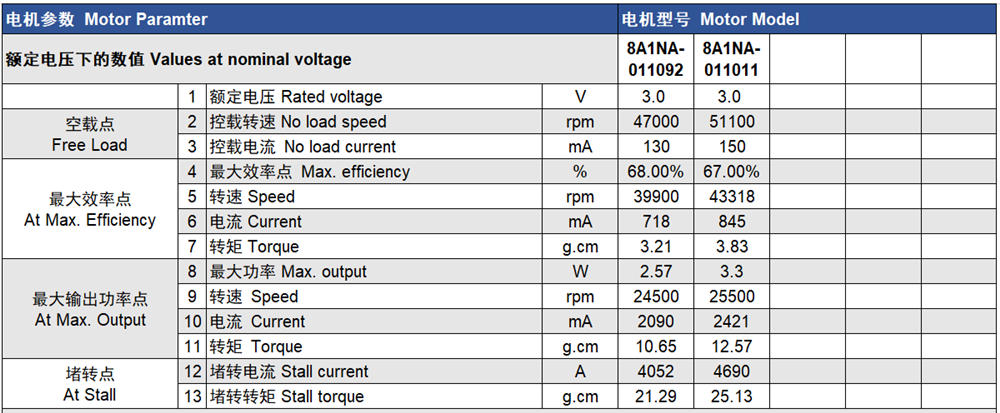

DC Brushes Micro Motor 8A816





    coreless brush motor with vibrator                   high quality DC motor for massager




 long torque brush miniature motor


3v vibration brushes motor

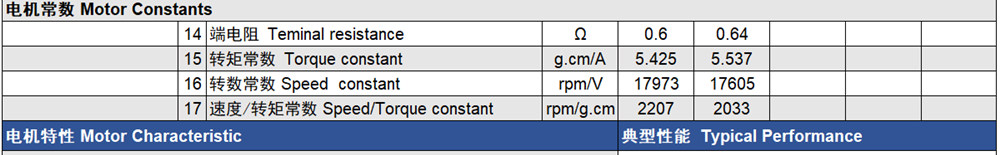

Coreless Motor Constants

direct curren coreless motor

614 dc micro brushed motor

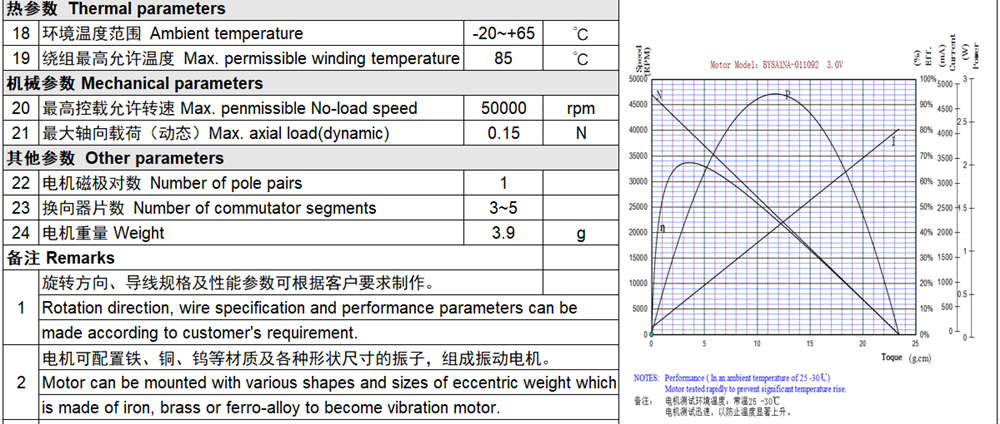

  • Rotation direction, wire specification and performance performance parameters can be made according to customer's requirement.

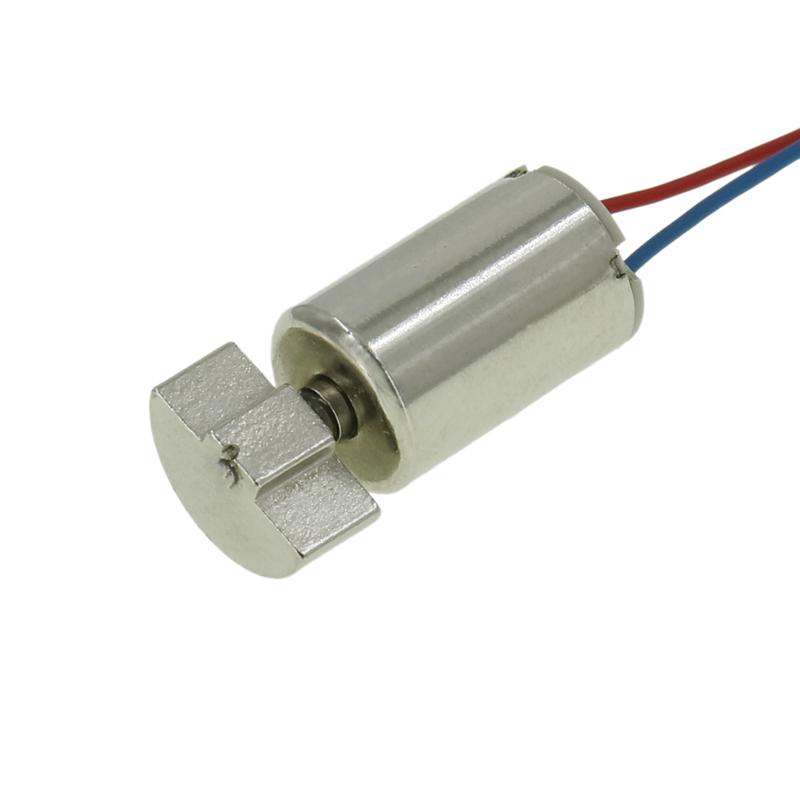

  • Motor can be mounted with various shapes and sizes of eccentric weight which is made of iron, brass or ferro-alloy to become vibration motor.

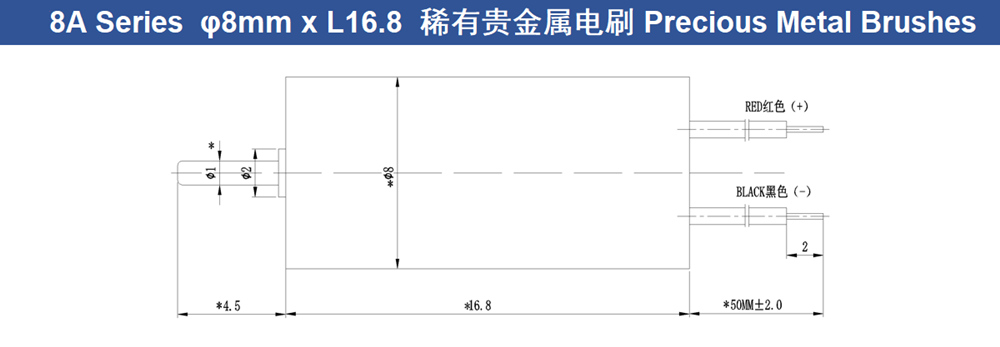

  • Dimension with " * " in the drawing can be adjusted according to customer's requirement.




Feature

  • Quality assurance, long service life;
  • High power density, high efficiency, smooth running;
  • DC coreless vibration motor, cylinder shape, magnetic, 2 wires connector;
  • The inertia is small, strong reliability and short response time which means a sensitive start.
  • Vibration motors can be used in a variety of medical applications. In handheld devices or instruments with touchscreen interfaces, they can enable vibration alerting or haptic feedback features.

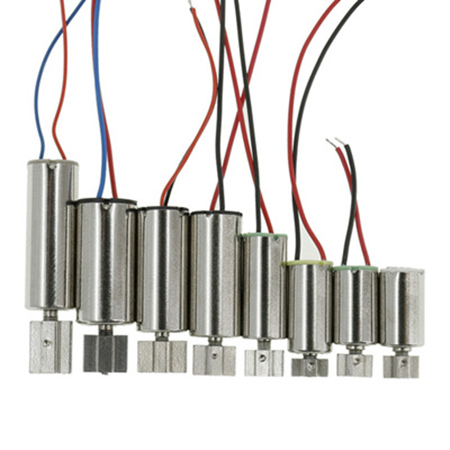

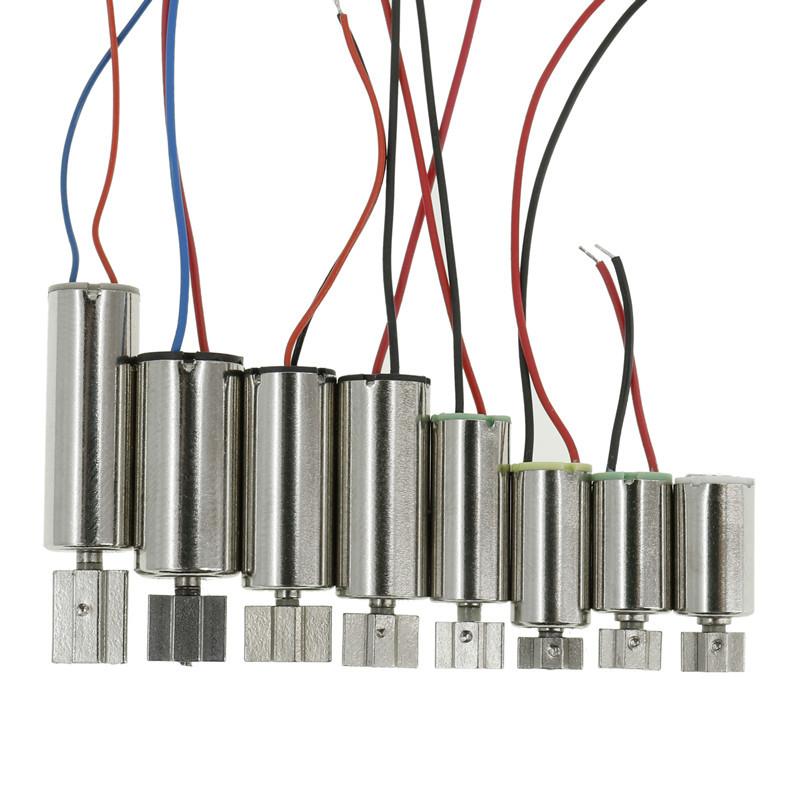

More Models

These micro motors come in a variety of different sizes and can be adapted to various applications to meet customer needs.

Type

Model

Size

Type

Model

Size

DC Brushes Micro Motor

6A610

6x10mm(0.24"x0.39")

DC Brushes Micro Motor

8A816

8x16mm(0.31"x0.63")

6B612

6x12mm(0.24"x0.47")

8D820

8x20mm(0.31"x0.79")

6C614

6x14mm(0.24"x0.55")

8G8520

8.5x20mm(0.33"x0.79")

6D614

6x14mm(0.24"x0.55")

8F8523

8.5x23mm(0.33"x0.91")

6F615

6x15mm(0.24"x0.59")

10A1013

10x13mm(0.39"x0.51")

7A716

7x16mm(0.27"x0.63")

10B1015

10x15mm(0.39"x0.59")

7B720

7x20mm(0.27"x0.79")

10D1020

10x20mm(0.39"x0.79")




Application

Widely used in vehicle electronic equipment, medical equipment, audio equipment, information and communication equipment, household appliances, aviation models, massage equipment, electric toothbrushes, electric razors, portable cameras, electric toys and precision instruments.

permanent magnet dc motor for beauty instrument



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our motors are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.
