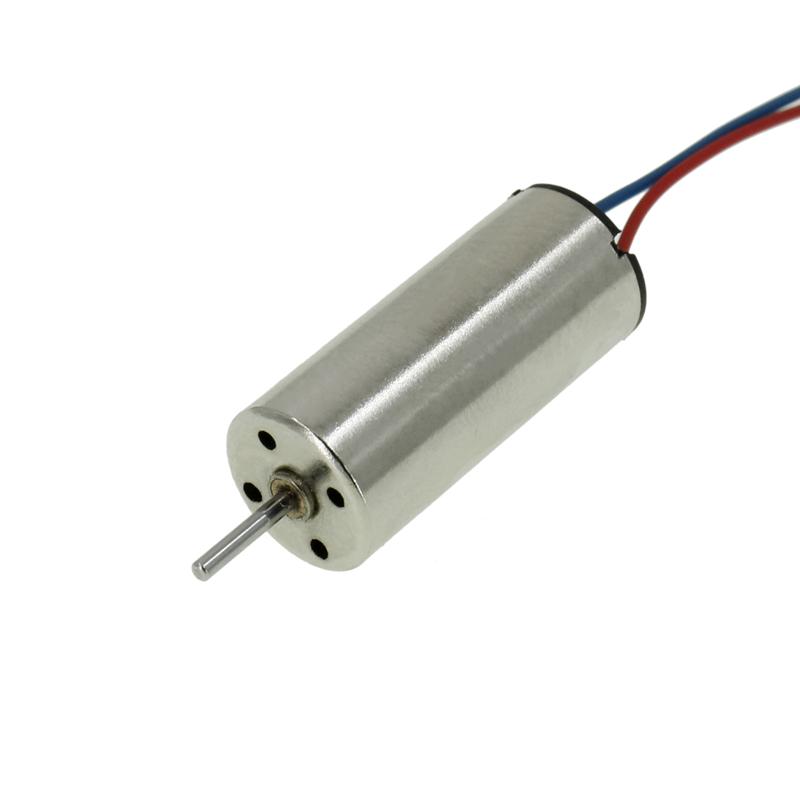

PMDC Brushed Coreless Drive Micro Motor for Quadcopters

Brushless motor with copper coil has low induction value and quick response of current to voltage fluctuation. The moment of inertia of the rotor is small, and the response speed of torque and current is equal, so the acceleration of the rotor can reach twice that of the traditional motor.

  • Item NO.:

    7A716
  • Order(MOQ):

    1000
  • Payment:

    T/T, L/C, Paypal, Western Union
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    20 working days
  • Weight:

    2.6g
  • Product Detail


A permanent magnet brush DC motor contains permanent magnets in the stator, eliminating the need for an external field current. This design is smaller, lighter, and more energy-efficient than other brush DC motor types; it is used extensively in low-power applications up to about 2 HP.


About this item

  • Dimension of the motor is 7 mm(D) x 16 mm(L) / 0.27" (D) x 0.62" (L).

  • Shaft Diameter: 0.8 mm / 0.03" | Motor Diameter: 7 mm / 0.27" | Motor Length: 16.6 mm / 0.65".

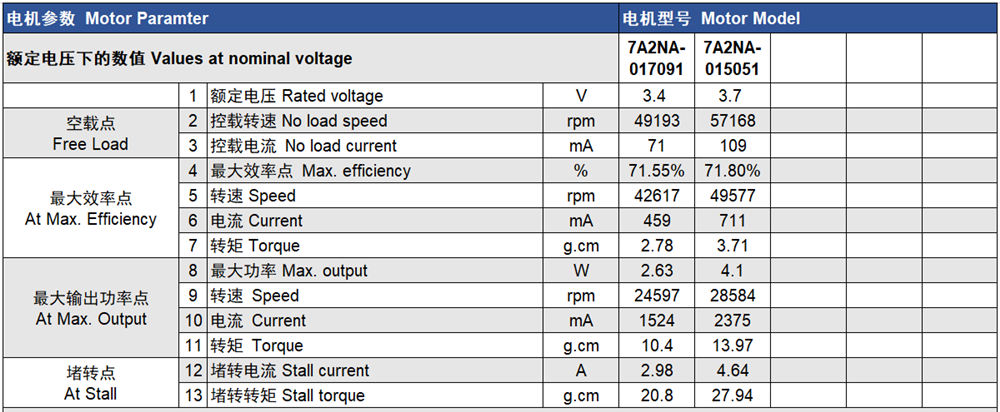

  • Rated Voltage Range: DC 3.4V ~ 3.7V | Speed: 50000 ~ 57000 RPM (the actual speed may be high or low).
  • Weight: 2.6 g/pcs;  Lead wire: (+): Red wire; (-): Black wire.
  • Please Comfirm the Motor Size, Voltage, Current and other parameters before purchase.





DC Brushes Micro Motor 7A716





    Metal Brush Coreless DC Motor for Precision Instruments                   3.7 Volt Micro Coreless Brushed Motor for Electric Toys




 6mm dc brush coreless vibrater motor


High Speed Electric Coreless DC Brush Micro Motor

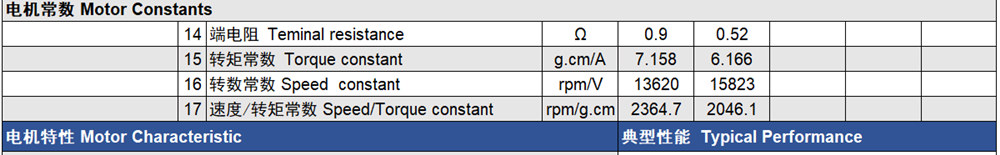

Coreless Motor Constants

Micro Vibration Motor for Robot Drone

614 dc micro brushed motor

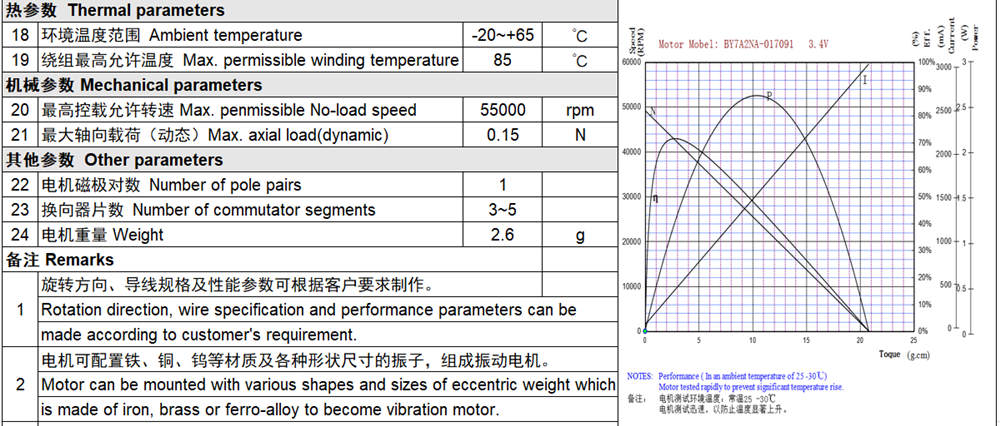

  • Rotation direction, wire specification and performance performance parameters can be made according to customer's requirement.
  • Motor can be mounted with various shapes and sizes of eccentric weight which is made of iron, brass or ferro-alloy to become vibration motor.

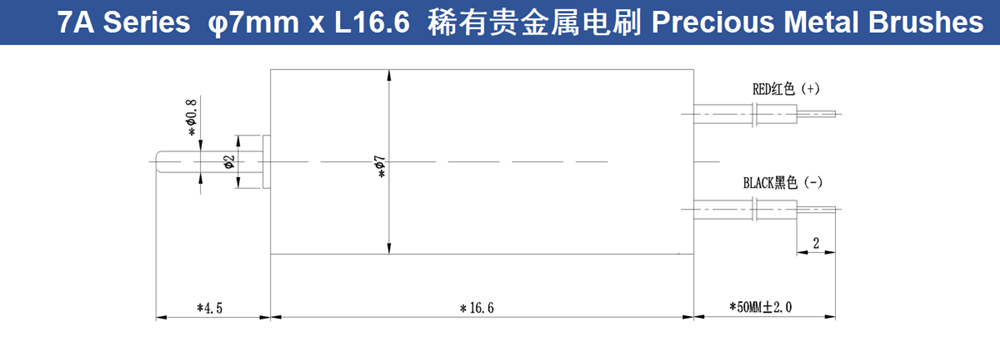

  • Dimension with " * " in the drawing can be adjusted according to customer's requirement.




Feature

  • Low noise, high speed, high durability;
  • Quick activation and braking, fast response;

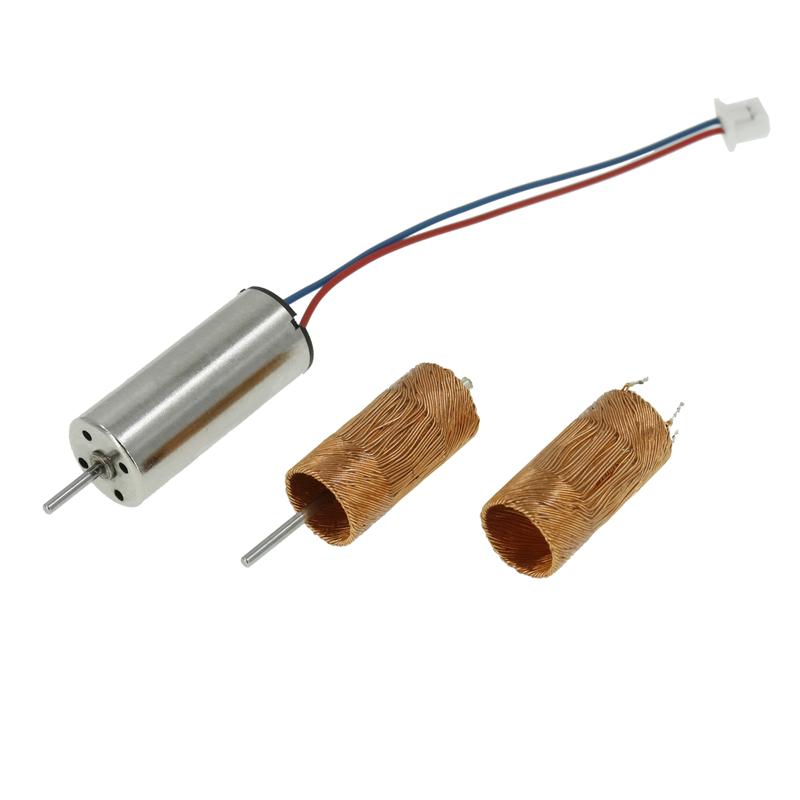

  • Pure copper winding with good conductivity and little heat generation;
  • Stable performance, strong power and high energy conversion efficiency;
  • Coreless brush motor is very powerful and durable, keep the quadcopter safe.




More Models

These micro motors come in a variety of different sizes and can be adapted to various applications to meet customer needs.

Type

Model

Size

Type

Model

Size

DC Brushes Micro Motor

6A610

6x10mm(0.24"x0.39")

DC Brushes Micro Motor

8A816

8x16mm(0.31"x0.63")

6B612

6x12mm(0.24"x0.47")

8D820

8x20mm(0.31"x0.79")

6C614

6x14mm(0.24"x0.55")

8G8520

8.5x20mm(0.33"x0.79")

6D614

6x14mm(0.24"x0.55")

8F8523

8.5x23mm(0.33"x0.91")

6F615

6x15mm(0.24"x0.59")

10A1013

10x13mm(0.39"x0.51")

7A716

7x16mm(0.27"x0.63")

10B1015

10x15mm(0.39"x0.59")

7B720

7x20mm(0.27"x0.79")

10D1020

10x20mm(0.39"x0.79")




Application

Widely used in household appliances, electronic products, massage health care, electric toys, aviation models, shavers, electric toothbrushes, hand chargers, electronic door locks, electric tools, USB fans, massage chairs and other fields.

Coreless Brush Motor for RC Quadcopter



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our motors are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.
