612 Waterproof Vibration DC Brush Coreless Miniature Motor

Brushed DC electric motor is an internally commutated electric motor designed to be run from a direct current power source.

  • Item NO.:

    6B612
  • Order(MOQ):

    1000
  • Payment:

    T/T, L/C, Paypal, Western Union
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    20 working days
  • Weight:

    1.4g
  • Product Detail


DC coreless motors are inexpensive and reliable and have a high ratio of torque to inertia. Because they need few or no external components, they are also suitable for operation under rugged conditions.


About this item

  • Dimension of the motor is 6 mm(D) x 12 mm(L) / 0.24" (D) x 0.47" (L).

  • Shaft Diameter: 0.8 mm / 0.03" | Motor Diameter: 6 mm / 0.24" | Motor Length: 12.2 mm / 0.48".
  • Rated Voltage Range: DC 1.3 ~ 3.7V | Speed: 13000 ~ 34500 RPM (the actual speed may be high or low).
  • Weight: 1.4 g/pcs;  Lead wire: (+): Red wire; (-): Black wire.
  • Please Comfirm the Motor Size, Voltage, Current and other parameters before purchase.





DC Brushes Micro Motor 6B612

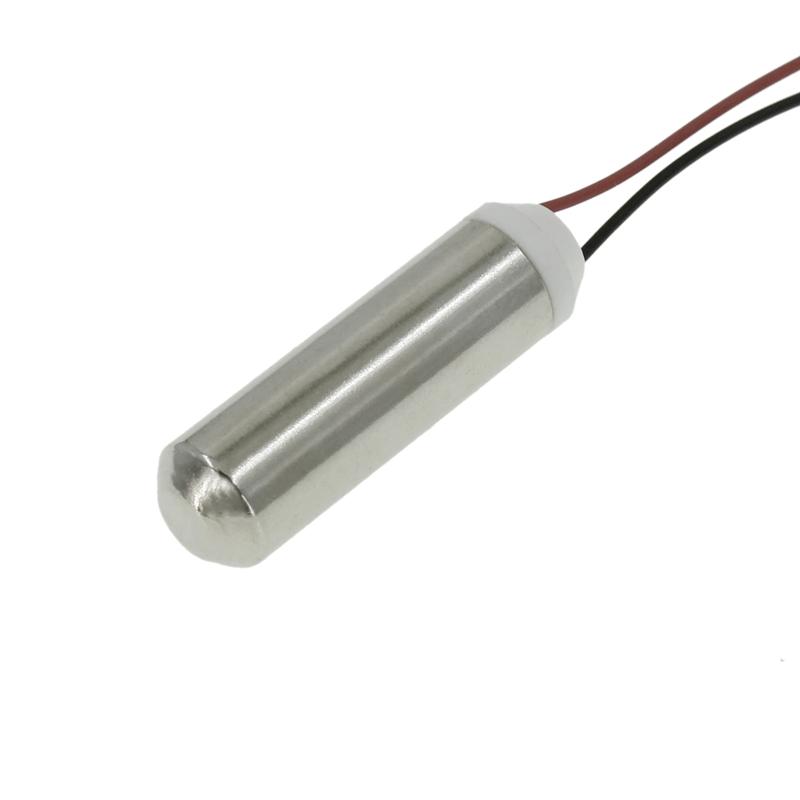

    Waterproof Vibration Micro Motor       High RPM Micro DC Motor




 612 Brush Micro Motor


612 electric micro dc motor

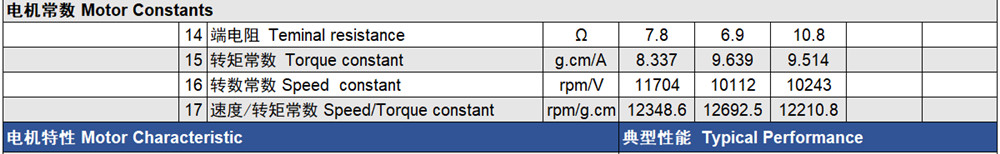

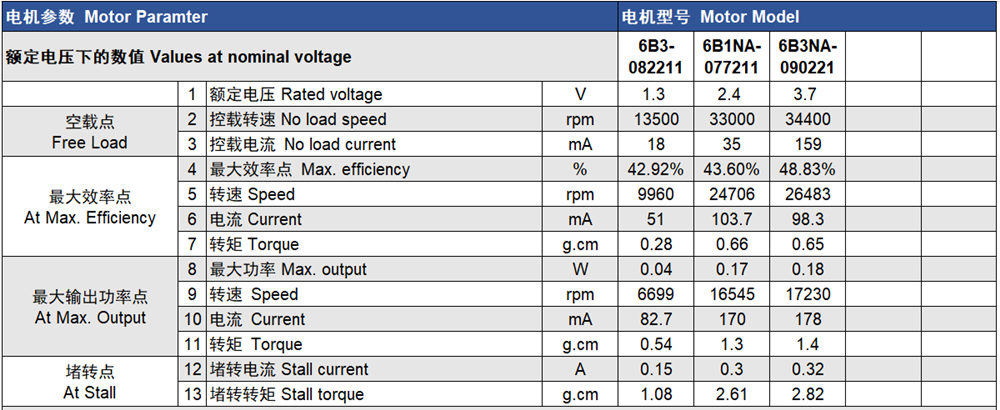

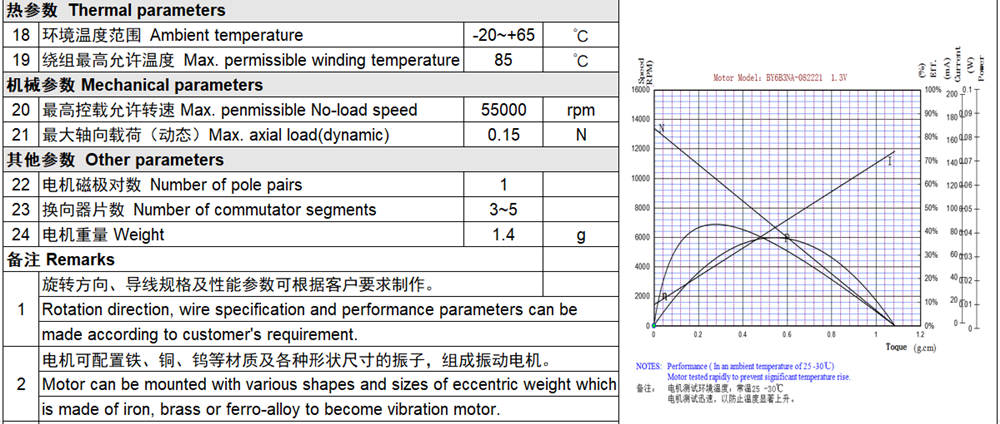

Coreless Motor Constants

Precious Metal Brushed DC Micro Coreless Motor


  • Rotation direction, wire specification and performance performance parameters can be made according to customer's requirement.
  • Motor can be mounted with various shapes and sizes of eccentric weight which is made of iron, brass or ferro-alloy to become vibration motor.

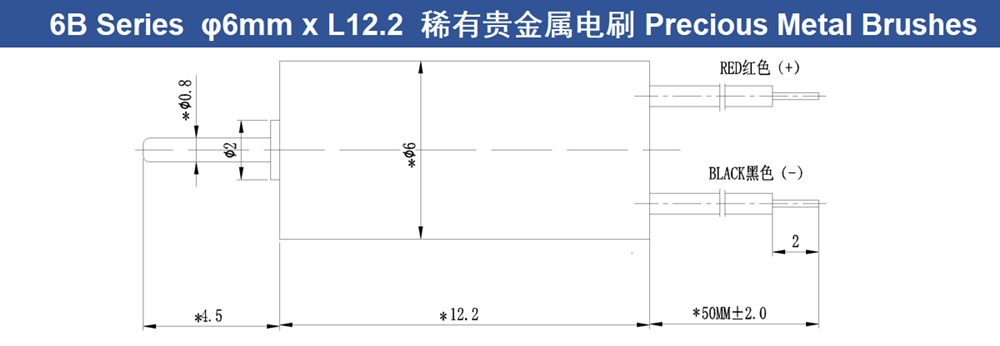

  • Dimension with " * " in the drawing can be adjusted according to customer's requirement.




Feature

  • Ability to withstand harsh environments;
  • Copper alloy housing, antioxidant, corrosion resistance;
  • The coreless brush motors has low noise, low power consumption, sensitive startup;
  • Brushes micro motor is small in size, light in weight and high in power utilization efficiency;
  • Waterproof performance, which can prevent flying dust and external moisture from flowing into the motor.

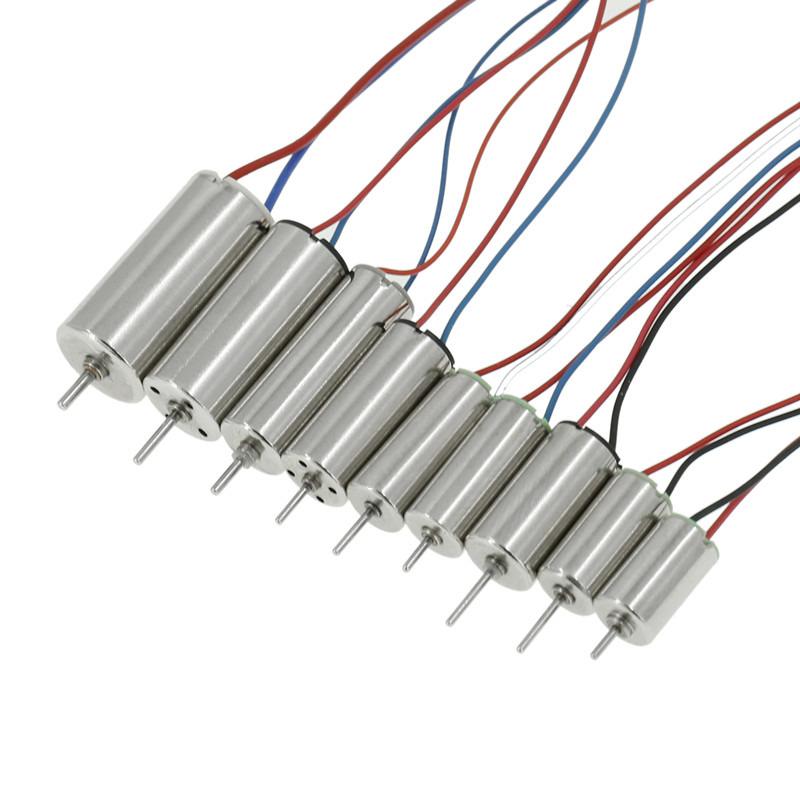

More Models

These micro motors come in a variety of different sizes and can be adapted to various applications to meet customer needs.

Type

Model

Size

Type

Model

Size

DC Brushes Micro Motor

6A610

6x10mm(0.24"x0.39")

DC Brushes Micro Motor

8A816

8x16mm(0.31"x0.63")

6B612

6x12mm(0.24"x0.47")

8D820

8x20mm(0.31"x0.79")

6C614

6x14mm(0.24"x0.55")

8G8520

8.5x20mm(0.33"x0.79")

6D614

6x14mm(0.24"x0.55")

8F8523

8.5x23mm(0.33"x0.91")

6F615

6x15mm(0.24"x0.59")

10A1013

10x13mm(0.39"x0.51")

7A716

7x16mm(0.27"x0.63")

10B1015

10x15mm(0.39"x0.59")

7B720

7x20mm(0.27"x0.79")

10D1020

10x20mm(0.39"x0.79")




Application

Waterproof vibration coreless motors used for Electric Toothbrushes, Toys, Dental Equipments, Beauty Product, Personal Care, Health Product, RC Cars, Airplanes and other supplies.

Coreless Micro Motor for RC Toys



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our motors are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.
