I. Customer Business Panorama: When Speed Meets Precision

Shenzhen-based Ruidong Future Technology Co., Ltd. (pseudonym), a high-tech company focusing on high-end power models and intelligent agricultural equipment, operates across three seemingly different fields that share a common core pain point: thermal management of high-load powertrains. These fields are rock crawlers & off-road remote control (RC) cars, and agricultural plant protection drone models.

1. Rock Crawlers & Off-road RC Cars: "Performance Prisoners" of Extreme Terra

Rock crawlers and off-road RC cars are the ultimate toys for RC enthusiasts. The customer's prodinuct line targets professional-grade 1/8 to 1/5 scale models. When these vehicles traverse extreme terrains like rocks, sand, or mud, their powertrains—especially motors and ESCs (electronic speed controllers)—require sustained high torque and high-speed operation.

Upgrade Requirements Analysis:

Heat Accumulation Effect: During low-speed, high-load climbing, motor current is extremely high, but slow vehicle speed renders natural air cooling almost ineffective. Traditional passive heatsinks reach thermal saturation within 3-5 minutes, leading to motor demagnetization, ESC overheating protection activation, sudden power loss, and risk of losing control on steep slopes.

Dust/Water Resistance vs. Cooling Conflict: Off-road environments are dusty and muddy. The customer's early attempts at fully sealed cabins resulted in poor cooling, while vented designs allowed foreign object entry, damaging bearings. They needed a micro fan with high static pressure, vibration resistance, and some level of protection.

Sustained High-Speed Scenarios: During high-speed runs in deserts or on grass, vehicle speeds can exceed 80 km/h, with motor speeds over 50,000 RPM. The customer found that ordinary fans would creep and deform blades under sustained high speeds, even shattering.

2. Agricultural Plant Protection Drone Models: "Endurance Workers" in the Sky

As a test and demonstration platform for agricultural drone manufacturers, the customer's plant protection drone models undertake simulated tasks like spraying and seeding. Single flights often require hovering or low-speed operation for 20-30 minutes, subjecting drive motors and flight control systems to severe thermal challenges.

Upgrade Requirements Analysis:

Enclosed Compartment Cooling: To resist chemical corrosion, the ESCs in plant protection drones are typically sealed inside aluminum housings. Under sustained currents above 30A, the junction temperature of internal IGBT modules can easily exceed 125°C.

Weight Sensitivity: Every additional gram reduces flight time or payload capacity. The customer needed micro, lightweight, high-airflow fans.

Vibration & Lifespan: High-frequency vibrations generated by drones accelerate fan bearing wear. The cheap fans the customer previously used often exhibited noise or seizure after just 20 flight hours.

Faced with these pain points, Ruidong Future's technical team realized they could no longer rely on consumer-grade cooling solutions. They needed a professional micro fan manufacturer with deep customization capabilities and stable mass production. Thus, they began their inspection and cooperation journey with China Chungfo Fan.

II. On-Site Inspection & Long-Term Selection: From Lab to Track Validation

In the fall of 2023, Ruidong Future's R&D director led a team to China Chungfo Fan's manufacturing base in Dongguan. They brought their three most "extreme" devices: a 1/5-scale gas-to-electric converted rock crawler (peak power 8kW), a desert off-road short-course truck (capable of 120 km/h), and a quadcopter plant protection drone model.

Inspection Focus: Not "Do you have fans?" but "Can your fans survive harsh conditions?"

Chungfo Fan's engineering team didn't rush to show product catalogs. Instead, they invited the customer directly into the reliability testing lab, where the customer witnessed:

Salt Spray Test: Fans ran continuously for 96 hours in a 5% NaCl solution spray. No housing corrosion, stable rotor.

High-Low Temperature Shock: Fans moved directly from a -40℃ freezer to an 85℃ oven, starting instantly without sticking.

Simulated Off-Road Vibration Table: Fans operated for 72 hours on a table with vibration frequency 20Hz-200Hz and 5g acceleration—simulating a rock crawler's violent shaking on a rocky trail.

After the inspection, the customer's engineer remarked, "We don't need ideal lab data. We need fans that still spin after mud, chemicals, and high-temperature liquid immersion."

Long-Term Cooperation Selection: Comprehensive Coverage from Frame 2006 to 4010

Based on strict condition matching, both parties finalized a range of micro DC axial cooling fans, all featuring dual ball bearings (for vibration and high-temperature resistance) and reinforced engineering plastic impellers (to prevent high-speed cracking).

Special Note: For 1/5 rock crawlers and some high-speed off-road models, the customer also custom-uses the 3015 12v DC fan. This 15mm thick fan delivers higher static pressure (up to 8.2 mmH₂O) than the standard 3010, effectively penetrating the deep heat source within the motor stator coils.

Furthermore, the customer explicitly required the fans to operate stably within the 10000~15000 RPM range. Chungfo Fan utilizes a built-in Hall sensor closed-loop control to ensure that even with supply voltage fluctuations (e.g., LiPo battery dropping from 8.4V to 6.0V), the fan maintains its minimum specified speed, preventing performance degradation.

Product Descriptions

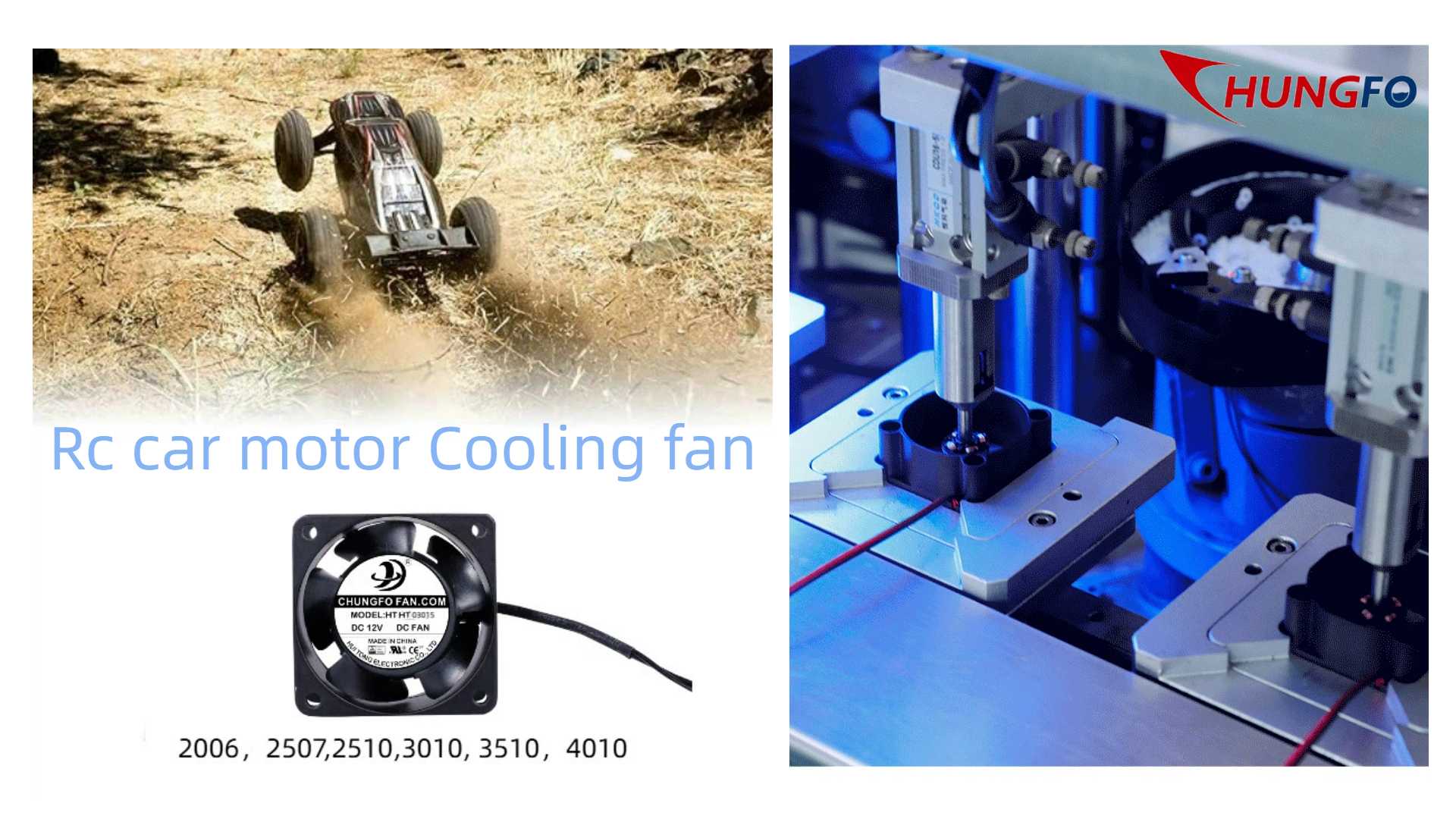

rc car cooling fan: On a 1/8 rock crawler chassis, the frame 3010 fan is mounted directly above the ESC heatsink. When the motor current surges to 60A during climbing, the fan automatically runs at full speed, reducing ESC temperature from 78℃ to 52℃.

rc car motor cooling fan: For the desert short-course truck's brushless motor, the customer uses a dual 3510 fan setup mounted directly over the motor housing, achieving 12 CFM airflow and keeping motor temperature below 65℃ after three consecutive battery packs.

3015 12v DC fan: Inside the sealed ESC compartment of the plant protection drone model, the 3015 fan operates at 15000 RPM full speed, with sufficient static pressure to overcome internal wiring obstructions, ensuring IGBT module junction temperature stays below the 105℃ safety limit.

III. Manufacturing Strength: The "Precision Production Line" for Micro Fans

After touring the production line, Ruidong Future's doubts about capacity and consistency were completely eliminated. China Chungfo Fan has established a dedicated flexible automated production line for micro cooling fans (especially the 20mm-40mm series).

1. Automated Stator Winding & Assembly

Traditional manual winding leads to inconsistent turns and high speed dispersion. Chungfo Fan uses 6-axis fully automatic winding machines for precision stator winding, paired with CCD vision inspection to ensure turn count error less than 0.5% per batch. This directly guarantees dynamic balance consistency in the high-speed 10000~15000 RPM range.

2. Precision Dual Ball Bearing Press-Fitting

For high-vibration RC and drone applications, all fans use imported dual ball bearings. The production line features dedicated bearing press machines with pressure accuracy within ±0.5N to avoid inner ring damage. This is by degaussing cleaning and grease injection, with grease volume automatically weighed by a microbalance (error ±0.002g), ensuring bearing life exceeding 50,000 hours (theoretical).

3. Fully Automatic Impeller Dynamic Balancing

High-speed fans fear impeller eccentricity most. Chungfo Fan has introduced a Schenck dynamic balancing machine from Germany to perform single or dual-plane dynamic balancing on each impeller, with residual unbalance ≤0.02g·mm. This results in minimal vibration at full 15000 RPM speed, directly extending bearing and motor life.

4. Online Burn-In & Functional Testing

At the end of each production line is a 4-hour online burn-in tunnel where fans run at 125% of rated voltage. They then enter a functional testing station using laser tachometers and wind tunnels to verify actual speed (within 10000-15000 RPM), airflow, current, and noise. Non-conforming units are automatically rejected with traceable data.

5. Flexible Changeover Capability

Given that the customer uses up to 6 models from 2006 to 4010, Chungfo Fan's production line can complete changeover in 15 minutes (changing fixtures, adjusting programs), enabling mixed production of multi-variety small batches and large volumes, perfectly matching the customer's need for multiple models and irregular replenishment.

IV. Why Choose Us? – Ruidong Future's Five Decision Factors

After evaluating several fan suppliers including Taiwanese and Japanese companies, Ruidong Future ultimately selected China Chungfo Fan as its exclusive micro cooling fan supplier. Their decision was based on:

1. Product Quality: From "Functional" to "Survivable"

Test Data: Chungfo Fan fans achieved 2.3 times the MTBF of other brands in simulated rock crawler mud immersion plus vibration testing.

Custom IP Protection: For plant protection drones, Chungfo Fan provided an IP56 (dust-tight and protected against powerful water jets) custom version, whereas standard industrial fans are typically IP54.

Full Certifications: All supplied fans are CE, UL, TÜV, and CCC certified, and comply with REACH and RoHS, ensuring barrier-free export.

2. Two Decades of Experience: From Home Appliances to Extreme Sports

Founded in 2003, China Chungfo Fan initially produced cooling fans for Midea and Chigo air conditioners, accumulating deep knowledge of airflow design, noise control, and long-term reliability. In 2008, they entered automotive electronics (providing automotive-grade fans for Hitachi), and in 2015, they expanded into sports equipment and smart devices. 20 years of cooling experience means Chungfo Fan knows how to handle the "high temperature + vibration + dust" combination—the daily reality of RC models and drones.

3. High Technical Staff Ratio: Customization is Not a Slogan

Chungfo Fan boasts over 30% R&D and technical personnel (industry average ~10-15%). When Ruidong Future first requested that the "frame 2006 fan operate below 28 dBA at 10000 RPM," Chungfo Fan's fluid dynamics engineers delivered a sample within two weeks by optimizing blade angle and count, achieving a measured 27.3 dBA. This response speed amazed the customer.

4. Major Brand Partnerships: "Trust Transfer" for Quality

During supplier audits, the customer explicitly noted that Chungfo Fan has long served the following well-known domestic and international brands:

Midea (stringent long-term supply requirements in home appliances)

Chigo (master of cost-performance balance)

Samsung (extremely high demands for quietness and lifespan of micro fans)

Hitachi (automotive-grade reliability)

Long-term partnerships with these brands mean Chungfo Fan's quality system, delivery capability, and after-sales response have been validated by globally top-tier companies.

5. After-Sales Service: More Than Just "Warranty"

24/7 Technical Support: When Ruidong Future encountered fan interference with PWM signals during flight control debugging, Chungfo Fan's FAE engineer drove overnight to the customer's site, resolving the issue by adding EMI filter capacitors.

Inventory Agreement: Chungfo Fan established VMI (Vendor Managed Inventory) for the customer, allowing monthly rolling withdrawals and 24-hour emergency order dispatch.

Failure Analysis: For any returned defective units, Chungfo Fan provides detailed 8D reports including SEM analysis and metallographic cross-sections, helping the customer improve their own product designs (e.g., discovering that excessively thick motor housing coating caused fan deformation after installation).

V. Cooperation Episodes: From "Impossible" to "Turnkey"

No deep cooperation is without challenges. Ruidong Future and Chungfo Fan experienced several critical hurdles that ultimately demonstrated Chungfo Fan's problem-solving capabilities.

Episode 1: "The Fan Actually Made the Motor Hotter?"

Problem: When first testing the rc car cooling fan on a 1/5 rock crawler, the customer found that after installing the Chungfo Fan 3510 fan, the motor temperature was 5℃ higher than without the fan.

Analysis: Chungfo Fan engineers arrived on-site and used a thermal imager. They found that while the fan's outlet pointed toward the motor's rear, that area was completely enclosed by a dust cover. The hot air couldn't exhaust, creating heat recirculation—the fan was blowing the motor's own radiated heat back onto the stator.

Solution: Within three days, Chungfo Fan designed an airflow guide duct (3D printed for validation) that forced fan airflow to be drawn from the motor's front and exhausted from the sides. They also switched to a higher static pressure 3015 12v DC fan running at 14000 RPM. Retesting showed an 18℃ drop in motor temperature. The problem was solved, and this setup became the customer's standard configuration.

Episode 2: High-Frequency Drone Vibration Causing Premature Bearing Failure

Problem: The customer reported that some 2510 fans on agricultural drones developed "scratching" noises after about 30 hours, eventually seizing. Failure rate was approximately 5%.

Analysis: Chungfo Fan brought failed units back to the lab for spectrum analysis and teardown. They found that the drone's propeller rotation frequency (~110Hz) was close to the fan bearing's natural frequency, causing resonance that led to abnormal ball wear on the retainer. Additionally, while chemicals didn't directly enter, the high-humidity environment (RH>85%) caused lubricating grease to absorb moisture and degrade.

Solution:

Bearing preload adjustment: Added wave spring washers to increase axial preload, shifting away from resonant frequency.

Grease upgrade: Switched to Kluber NB52 grease with wider temperature range and better water resistance.

Impeller material upgrade: For high humidity, impeller material changed from PBT to PA66+GF30 (30% glass fiber reinforced) for better moisture resistance.

After improvements, 500 replacement fans operated continuously for 200 hours in the customer's field with zero failures.

Episode 3: Emergency Air Freight During Shortage Crisis

Problem: The customer was preparing for the Nuremberg Toy Fair (world's largest RC exhibition). One week before departure, they suddenly realized they were short on stock and urgently needed 600 frame 2006 and 2507 fans delivered to Shenzhen for consolidation within 5 days.

Solution: Chungfo Fan activated its emergency order process—pausing non-urgent production lines, running double shifts for 36 hours to complete production, while coordinating a dedicated SF Express truck to transport directly from Dongguan to Shenzhen airport in the early morning. The fans were delivered one day early, ensuring the customer successfully exhibited and secured a major European order. After this incident, the customer rated Chungfo Fan as "Best Responsive Supplier of the Year."

VI. Ongoing Cooperation & Future Outlook

Today, all of Ruidong Future's high-end rock crawlers, off-road RC cars, and agricultural plant protection drone models come standard with China Chungfo Fan micro cooling fans. The customer even invites Chungfo Fan engineers to participate during new product design stages to co-design airflow paths and fan selection.

With product lines including frame 2006, 2507, 2510, 3010, 3510, 4010 and the high-performance 3015 12v DC fan, Chungfo Fan has not only solved the customer's pain point of "overheat protection triggering loss of control" but has also helped the customer create a market differentiator of "durable and high-temperature resistant."

From rocky mountain trails, to desert high-speed runs, to precise agricultural spraying—behind every Ruidong Future device, a powerful cool breeze driven by China Chungfo Fan silently protects that hot "heart."

About China Chungfo Fan

China Chungfo Fan focuses on providing efficient thermal solutions for multiple industries. Its products include DC/AC fans, blowers, and motor systems, widely used in home appliances, medical equipment, automotive, sports equipment, smart devices, and other fields.

The company is customer-need-oriented, offering one-stop services from design and development to mass production and delivery. It can perform customized optimization for different application scenarios, balancing airflow, noise, lifespan, and energy efficiency. Through continuous technological innovation and strict quality control, its products maintain stable performance in global markets.

Leveraging advanced testing equipment such as wind tunnel testing systems, salt spray corrosion testers, high-low temperature environment test chambers, and noise labs, the company can accurately evaluate airflow, static pressure, lifespan, and stability, ensuring long-term reliable operation in complex application environments. The company has fully implemented ISO9001, ISO14001, and IATF16949 management systems, and its products are CE, UL, TÜV, and CCC certified, complying with REACH and RoHS environmental standards.

Currently, the company has established long-term partnerships with well-known domestic and international brands including Midea, Chigo, Samsung, and Hitachi, continuously creating value for customers with high-quality products and professional services.
