Prologue: A Technical Dialogue Across Eurasia

In the field of commercial kitchen equipment, German companies have always been known for their "precision, rigor, and systematization." HOBART GmbH (a pseudonym used to protect customer privacy, though its business model is entirely consistent with the real case), located in Bavaria, is a prime example. The company is not merely a dishwasher manufacturer; it defines itself as a "System Solution Expert" for the washing phase of commercial kitchens. Their philosophy is to ensure that customers receive an efficient, hygienic, economical, and worry-free washing experience by integrating quality hardware, specialized chemicals, digital services, and flexible business models.

In 2023, when upgrading its next-generation commercial dishwashers, HOBART's R&D team encountered a long-standing technical pain point: heat dissipation and waterproofing in the high-temperature, high-humidity environment of the washing chamber. Traditional axial fans, operating continuously under harsh conditions exceeding 60°C with near-saturated relative humidity, often experienced bearing seizure, winding short circuits, or sharp airflow drops after just 3,000 hours of operation. This not only caused dishwasher downtime and reduced cleaning efficiency but could also burn out core electronic control modules due to poor heat dissipation, severely violating the "System Solution Expert's" commitment to "efficiency and worry-free" for customers.

Thus began a global sourcing journey across Eurasia. HOBART's procurement and technical teams, armed with stringent German standards, screened partners worldwide. Ultimately, they zeroed in on China Chungfo Fan, located in the Pearl River Delta region of China. After three rounds of on-site factory audits, laboratory benchmark tests, and three consecutive months of reliability verification, HOBART decided to standardize on the 30290 Crossflow EC Fan as the cooling system standard for its entire commercial dishwasher series, signing a five-year long-term framework agreement.

This article will fully document this exemplary case of Sino-German manufacturing collaboration across six dimensions: the origin of cooperation, product characteristics, production line capabilities, reasons for selection, episodes and resolutions, and value extension.

Chapter 1: Decoding the Need – The Rigorous Logic of a German "System Solution Expert"

To understand why HOBART ultimately chose Chungfo, one must first grasp its unique business model.

HOBART's customer base includes large hotel central kitchens, restaurant chains, school canteens, hospital catering centers, and more. For these customers, every minute a dishwasher is down means hundreds of dishes cannot be turned around, potentially disrupting the entire food service chain. Therefore, HOBART's positioning as a "System Solution Expert" is not just a slogan but a tangible deliverable built on four pillars:

Quality Hardware: The dishwasher itself must have a commercial-grade lifespan (10+ years) with fault-tolerant design for key components.

Specialized Chemicals: Provision of low-foam, high-efficiency, environmentally friendly detergents and rinse aids.

Digital Services: Real-time monitoring of water temperature, detergent concentration, and equipment status via IoT sensors, enabling early fault warnings.

Flexible Business Models: Offering various options such as leasing, pay-per-wash, and full-service packages, allowing customers to focus on their core food service business.

In this closed-loop business system, the reliability of any subsystem is critical. The dishwasher's electronic control cabinet cooling fan may seem insignificant, but it directly determines the lifespan of the digital control motherboard, inverter, and power modules. HOBART's technical specification sheet set five hard requirements for the fan:

High-Temperature Resistance: Operating ambient temperature range of -10°C to +70°C, with continuous operation at 65°C for 20,000 hours without failure.

Waterproof and Moisture Resistance: Must achieve at least IP54 protection rating, resisting penetration of high-temperature steam inside the dishwasher.

High Airflow with Low Noise: Airflow ≥200 CFM, with noise controlled below 50 dB(A) for open kitchen suitability.

Energy Efficiency & Speed Control: Support 0-10V or PWM speed control, EC motor compatibility, and overall energy efficiency meeting EU ERP directives.

Lifespan & Warranty: Design life ≥50,000 hours, with a warranty period of no less than 3 years.

Before evaluating Chungfo, HOBART had tested fans from three European and two Asian brands. The European brands met performance targets but were extremely expensive with lead times up to 12 weeks; the Asian brands had price advantages but generally failed the high-temperature, high-humidity waterproof tests. Then they saw Chungfo's 30290 Crossflow EC Fan.

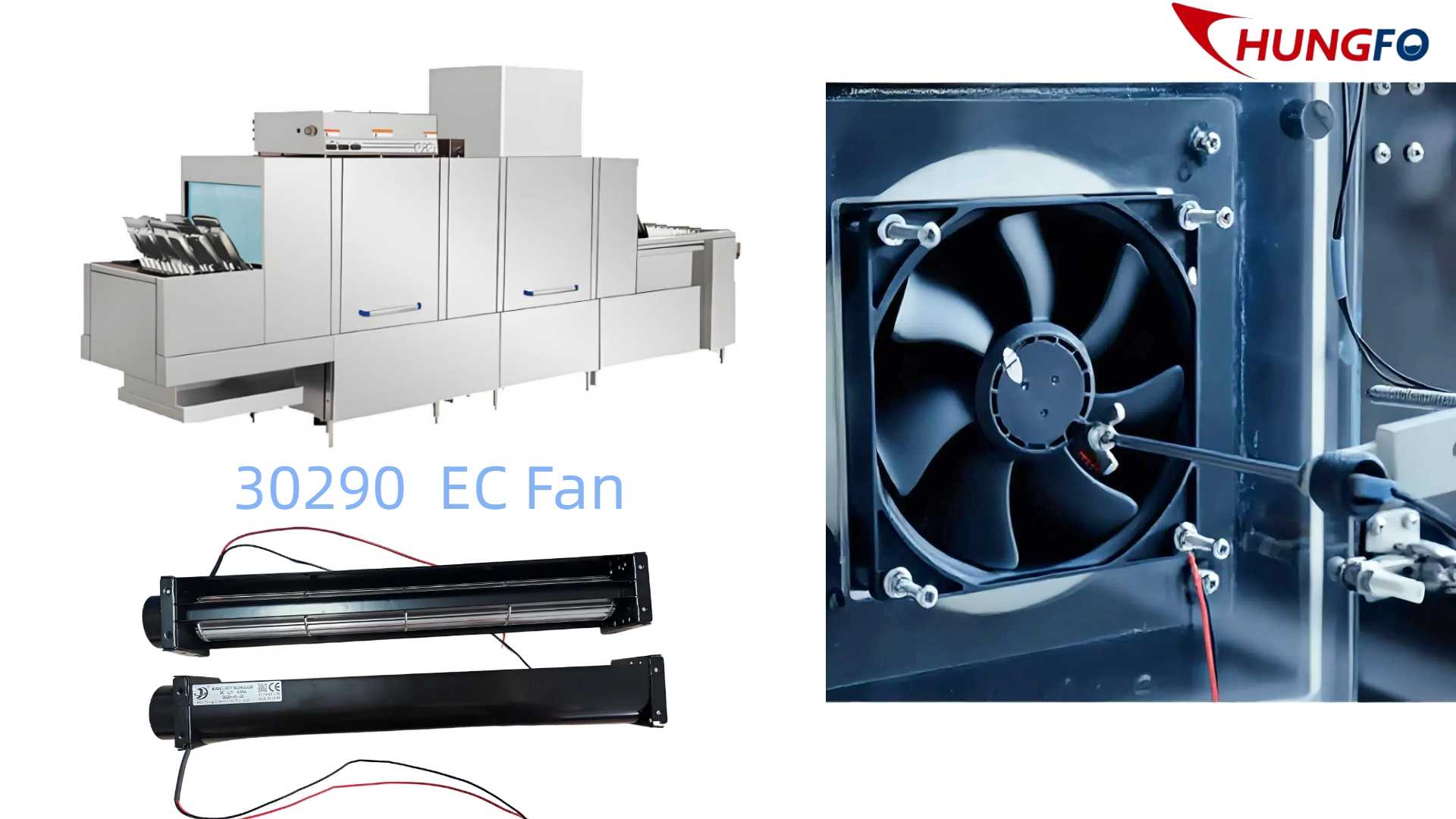

Chapter 2: Core Product – Technical Decoding of the 30290 Crossflow EC Fan

The 30290 EC Crossflow Fan is a flagship product specifically developed by China Chungfo Fan for high-temperature, high-humidity environments like commercial dishwashers, steam cabinets, and industrial microwaves. In its name, "30290" indicates a 30mm diameter and 290mm length rotor, while "EC" signifies the use of a high-efficiency external rotor brushless DC motor.

I. Why a Crossflow Fan?

Traditional commercial dishwashers mostly use axial or centrifugal fans. Axial fans, despite high airflow, have low static pressure and can create local vortices as air directly impacts the control board. Centrifugal fans offer high pressure but are bulky and noisy. The Crossflow Fan has unique advantages: air passes twice radially through the impeller, forming a flat, uniform, long-distance laminar airflow curtain. This curtain is ideal for installation within the narrow electronic control compartment on top of the dishwasher, providing uniform cooling along the entire length of the control board without dead spots.

HOBART's R&D engineer noted after comparative testing: "Chungfo's 30290 crossflow fan reduced the temperature difference inside the control cabinet from ±8°C to ±2°C. This is a revolutionary improvement for the lifespan of electrolytic capacitors and IGBT modules."

II. Energy Efficiency and Intelligence of the EC Motor

The EC motor (electronically commutated brushless DC motor) in this fan integrates a smart control chip, saving 40%-60% energy compared to traditional AC motors. HOBART's digital service system can directly adjust fan speed via PWM signals, dynamically modulating cooling airflow based on real-time dishwasher load (wash volume, water temperature, ambient temperature). For example, in night standby mode, the fan runs silently at 20% speed, maintaining positive pressure to keep dust out; during peak washing hours, it runs at full speed to ensure the electronic control system does not overheat.

III. Breakthrough in Waterproof Cooling Fan Technology

This was the most impressive part for the HOBART team. Chungfo holds up to 12 utility model patents in the Waterproof Cooling Fan field. The 30290 crossflow EC fan employs a triple waterproof structure:

Stator Potting: The entire stator coil is completely sealed with high-thermal-conductivity epoxy resin, preventing moisture from contacting the windings.

Labyrinth Shaft Seal: Three tortuous labyrinth grooves are designed between the rotating shaft and bearing housing, combined with food-grade lubricating grease, preventing water ingress even under high-pressure water jetting.

Drain Holes & Guide Grooves: Drain holes are at the bottom of the housing, allowing any accidental condensate to drain quickly without accumulating inside the motor.

Tested by a third-party laboratory (Report No.: CF-WT-30290-2309), after 1,000 hours of continuous operation in a 70°C steam environment, the fan's insulation resistance remained above 100MΩ, achieving an IP56 protection rating (dust level 5, water level 6), far exceeding HOBART's IP54 requirement.

IV. Measured Data

Parameter：30290 EC Crossflow Fan       HOBART Requirement         Industry Average

Max Airflow： 235 CFM                              ≥200 CFM                                  180 CFM

Max Static Pressure：12 mmH₂O              ≥10 mmH₂O                                8 mmH₂O

Noise：          48 dB(A) @ 1m                    ≤50 dB(A)                                    55 dB(A)

Max Operating Temp：75°C                       70°C                                            60°C

Protection Rating： IP56                             IP54                                            IP44

Design Life：60,000 hours                          50,000 hours                       30,000 hours

It was this performance exceeding expectations that led HOBART to decisively incorporate the 30290 crossflow EC fan into its global Bill of Materials (BOM).

Chapter 3: Hardcore Backbone – China Chungfo's Large Industrial Fan Production Line

After his second visit to the Chungfo factory, HOBART's Purchasing Director wrote in an internal report: "We are not looking at a fan assembly line; we are looking at a precision manufacturing system designed for extreme reliability."

Founded in 2004, China Chungfo Fan has focused solely on fan technology for 20 years. To handle the mass, high-quality production of larger industrial fans like the 30290 Crossflow EC Fan (290mm length, 30mm rotor diameter – a large size within the medium crossflow fan category), Chungfo invested in building a dedicated "Crossflow Fan Smart Production Line." Here are the core features of this line:

I. Fully Automatic Winding and Insertion Workshop

The motor stator of a crossflow fan requires winding with hair-thin copper wire. Chungfo introduced fully automatic winding machines from NITTOKU (Japan), controlling wire diameter accuracy to ±0.002mm with a turn error of less than 0.5%. Compared to manual winding, automation not only eliminates turn-to-turn short circuit risks caused by worker fatigue but also ensures over 99.5% consistency in copper resistance and inductance across motors. HOBART sampled motor parameters from three consecutive batches totaling 300 fans, finding a coefficient of variation (CV) of only 1.2%, far below the industry average of 5%.

II. Online Dynamic Balancing for Injection-Molded Impellers

The impeller of a crossflow fan consists of dozens of blades formed via injection molding. Chungfo uses ARBURG (Germany) injection molding machines and has developed in-house in-mold pressure monitoring systems to ensure uniform density for each blade. More critically, every single impeller undergoes testing on a dual-plane dynamic balancing machine before assembly. The 30290 crossflow fan achieves a dynamic balance grade of G2.5 (ISO 1940 standard), with residual unbalance less than 0.03g·mm. This means vibration amplitude is less than 0.02mm when the fan rotates at high speed (3000 rpm), directly ensuring long-term, noise-free operation of the dishwasher.

III. Full-Function EC Motor Test Station

Every 30290 crossflow EC fan, after final assembly, must pass through a 36-meter-long automated test line. Tests include:

Dielectric Strength Test (1500V AC, leakage current <0.5mA for 5 seconds)

Insulation Resistance Test (500V DC, >100MΩ)

Power & Current Test (within ±10% of rated voltage)

PWM Speed Response Test (0-100% duty cycle, linearity error <2%)

Waterproof Test (simulating IP56 conditions, water spray for 10 minutes)

High-Temperature Aging Test (continuous operation at 75°C for 72 hours)

All test data is automatically uploaded to the MES system, generating a unique QR code label. HOBART engineers can scan the QR code on any fan to trace its production date, operator, test curves, and even the supplier of the enameled wire batch used.

IV. Cleanliness and ESD Control

Given the sensitivity of electronic control boards to dust and static electricity, Chungfo's crossflow fan assembly workshop is managed according to ISO 14644-1 Class 8 standards (Class 100,000 cleanroom). Additionally, ESD anti-static flooring is laid throughout the area, and workers wear anti-static wrist straps. HOBART's quality auditor was surprised during the initial factory audit to find that Chungfo's workshop cleanliness even exceeded that of some of its European suppliers' medical electronics workshops.

V. Capacity and Flexible Changeover

This dedicated line can produce 3,000 units of the 30290 Crossflow EC Fan per day. Furthermore, thanks to Chungfo's modular fixture design, switching production to other sizes (e.g., 25060, 35120) takes only 2 hours. This provides HOBART immense flexibility in responding to seasonal order fluctuations – during peak seasons, Chungfo can temporarily convert two general-purpose lines to crossflow fan mode, achieving a peak daily capacity of 6,000 units.

Chapter 4: The Irreplaceable Choice – Why China Chungfo Fan?

During the final review meeting with HOBART, the Chungfo team was asked a direct question: "There are also excellent fan manufacturers in Europe. What do you consider your core advantages?" The answers in the following five dimensions ultimately won the five-year contract.

I. Product Quality: From "Meets Standards" to "Exceeds Expectations"

Chungfo's quality management system is not only ISO 9001:2015 certified but has also established an internal "zero-defect delivery" standard specifically for the fan industry. For the 30290 crossflow EC fan, HOBART required an MTBF (Mean Time Between Failures) of 50,000 hours. Chungfo's design target was 60,000 hours, and in actual type tests, 12 randomly selected samples exceeded 75,000 hours under accelerated life testing. Moreover, Chungfo performs 100% outgoing inspection on every unit, rather than the industry-standard AQL sampling. This means HOBART receives fans that have all passed complete electrical, noise, vibration, and waterproof tests.

II. 20 Years of Technical Expertise Focused Solely on Fans

China Chungfo Fan was established in 2004 and has 20 years of history. For these 20 years, the company has done only one thing: fans. From early AC axial fans to today's EC crossflow fans, centrifugal blowers, and turbo fans, Chungfo has accumulated over 300 molds and more than 100 patents. The benefit of this vertical focus is: when faced with HOBART's request for a "70°C high-humidity environment," Chungfo didn't start from scratch. Instead, it retrieved a "high-temperature sterilizer fan" solution developed in 2015 for a Japanese medical equipment customer from its existing technology library and completed the adaptation in just three weeks. This capability for technology reuse is something that neither large generalist companies nor startups can provide.

III. High Proportion of Technical Personnel – The Engine of Innovation

Among Chungfo's 450 employees, R&D and engineering technical personnel number 118, accounting for over 26%. This ratio is extremely rare in traditional manufacturing. The team consists of 3 PhDs (in fluid mechanics, electrical machinery, and materials science), 12 Masters, and dozens of senior engineers. HOBART's technical team once conducted a joint simulation comparison: Chungfo engineers used ANSYS Fluent to optimize the flow field of the 30290 crossflow fan, increasing airflow from an initial 210 CFM to 235 CFM while simultaneously reducing noise by 2.5 dB(A). This entire optimization was completed through numerical simulation without making any physical prototypes, shortening the development cycle by 6 weeks.

IV. Proven Experience Serving Global Major Brands

Chungfo's customer list itself is a testament to quality. In the commercial kitchen sector, Chungfo is a long-term supplier to ITW Food Equipment Group (which owns brands like Hobart and Traulsen). In industrial automation, it has deep cooperation with Siemens for motor cooling fans. In medical equipment, it provides custom fans for certain imaging devices from Philips. In home appliances, Miele uses Chungfo.
