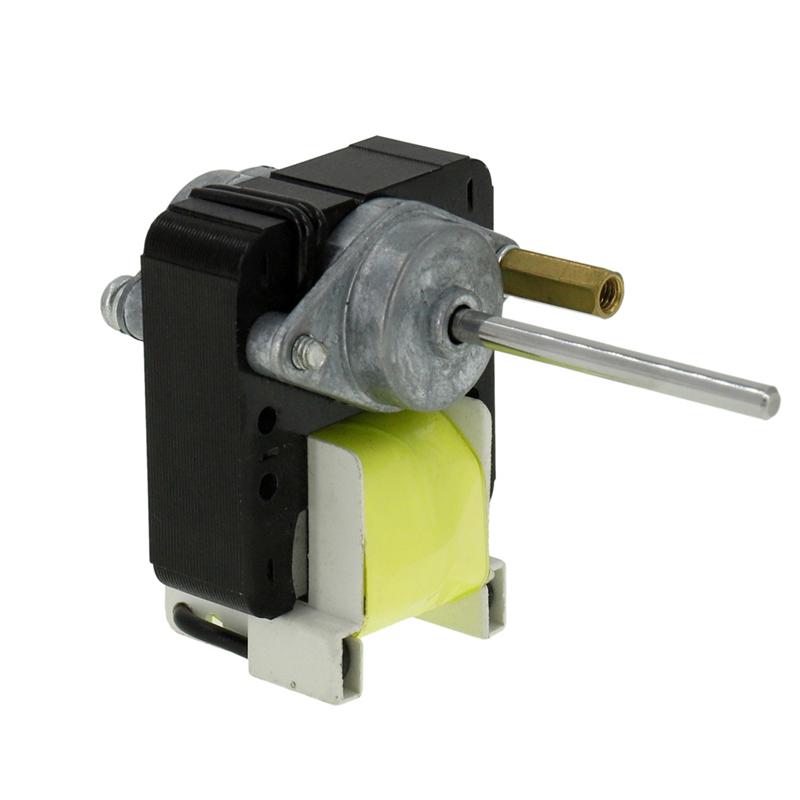

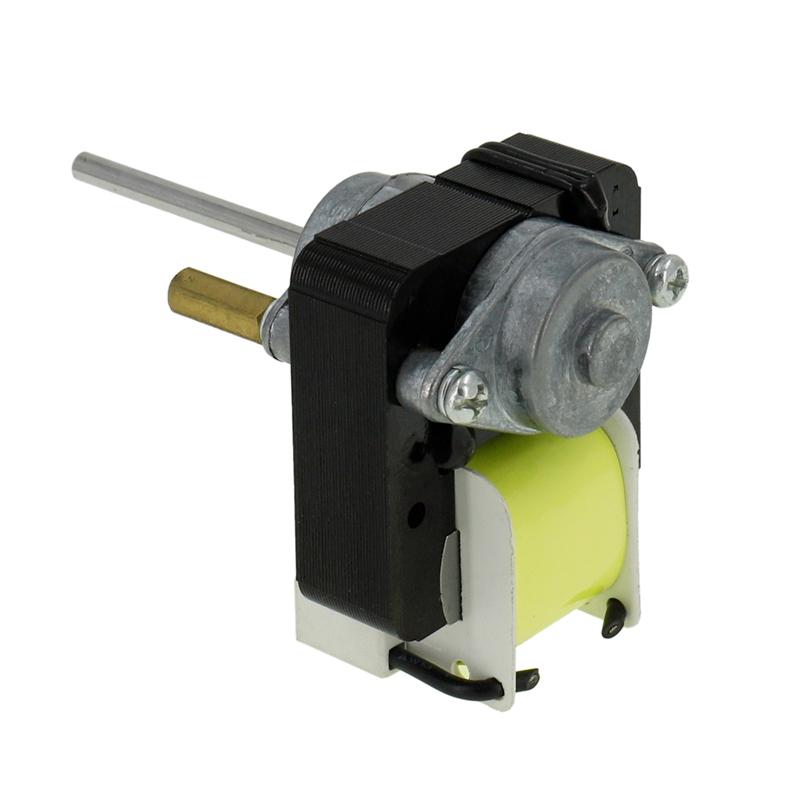

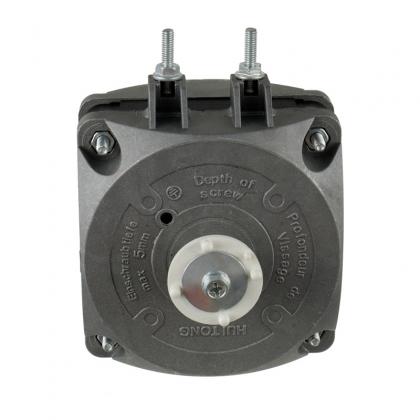

Long Lifetime AC Brushless Shaded Pole Fan Motor

When the main winding of the shaded pole motor is energized, the shaded pole winding will also generate induced current, which will make the magnetic flux of the covered part of the stator pole and the uncovered part rotate in the direction of the covered part.

  • Item NO.:

    Z4815
  • Order(MOQ):

    1000
  • Payment:

    T/T, L/C, Paypal, Western Union
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Shenzhen
  • Lead Time:

    20 working days
  • Weight:

    330g
  • Product Detail


A large number of motors are manufactured with small ratings for the operation of a single-phase AC supply.


About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan motor for various products.

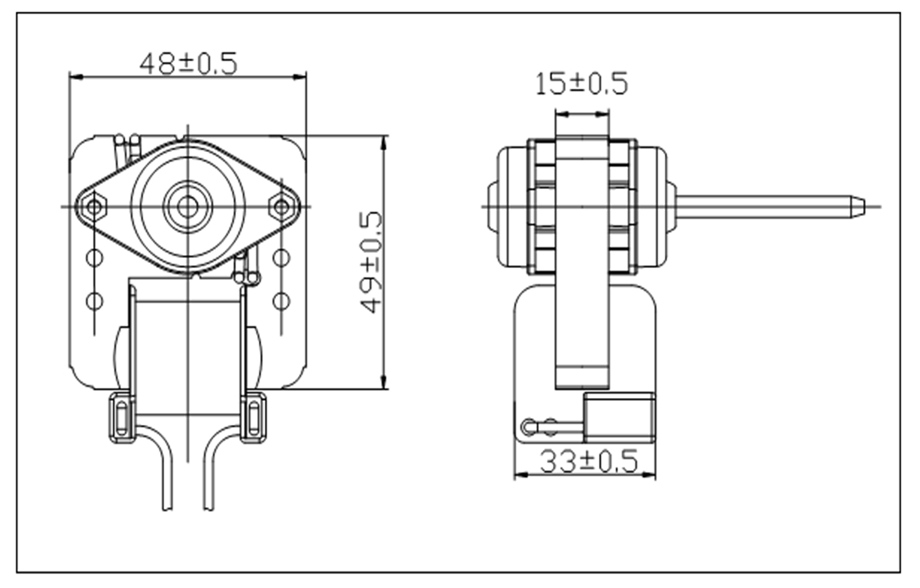

  • Dimension of the motor is 48 mm(L) x 15 mm(H) / The size of fan in inch is 1.88 in(L) x 0.59 in(H).
  • Operating Voltage Range: AC 90 ~ 240V | Frequency: 50/60Hz | Current / Speed / Shaft Diameter / Shaft Length: according to customer requirements.
  • Lead wire: (+): Red wire; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing; Life: working up to 50000h at 25 degrees.
  • Please Comfirm the Motor Size, Voltage, Connector and other parameters before purchase.

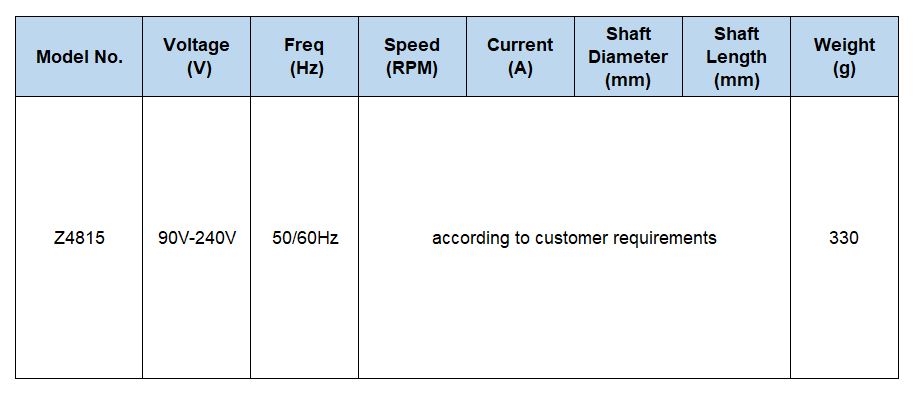

AC Shaded Pole Motor Z4815





General Specification:

Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing






·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.



Feature

  • Reasonable structural design and flexible lead-out direction;
  • Numerous choices to meet the needs of various users and install thermistors;
  • The optimized design has high efficiency and can produce considerable energy-saving effect;
  • Excellent shaded pole motor performance, low noise, low vibration and high performance protection level;
  • The advantage of shaded pole motor is that it is simple in structure and does not need additional windings and capacitors.



More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Type Model Type Model
AC Shaded Pole Motor Z4815 DC Brushless Motor M25-20
Z6110 M38-20
Z6120 M6830
Z6130
Z8213
Z8220



Application

Widely used in household appliances such as electric shavers, electric toys, hair dryers, heaters, massagers, juicers, vacuum cleaners, egg beaters, advanced children's toy cars, shredders, air conditioners, cooling fans, electric tools, massagers and other fields.

  • Customized projects related to air conditioning, printers, copiers, sports equipment and many other fields.
  • Create a good cooling and ventilation system to keep household appliances and other electronic equipment running at the ideal temperature and the best speed.



Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.




Customers

Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.



Certifications

All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.







Want to know about this product?

SEND A MESSAGE
Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products
Spare Parts AC Shaded Pole Gear Fan Motor shaded pole motor
The shaded pole induction motor is simply a self-starting single-phase induction motor whose one of the pole is shaded by the copper ring. The copper ring is also called the shaded ring. This copper ring act as a secondary winding for the motor. The shaded pole motor rotates only in one particular direction, and the reverse movement of the motor is not possible.
ReadMore+
Electric Brushless AC Shaded Pole Fan Asynchronous Motor ac fan motor
The shaded pole motor features stable structure, reliable operation, low noise and no electromagnetic interference.
ReadMore+
AC Fan Brushless Shaded Pole Gear Electric Motor shaded pole motor
The construction of the motor is very simple because it does not contain any commutator, brushes, collector rings, etc. or any other part. The shaded pole induction motor does not have any centrifugal switch. Thus, the chances of failure of the motor are less.
ReadMore+
90V-240V AC Brushless Shaded Pole Fan Motor shaded pole motor
The motor has the advantages of simple structure, convenient manufacture, low cost, low noise and no radio interference during operation.
ReadMore+
AC Shaded Pole Asynchronous Motor for Cooling Fan shaded pole motor
A Shaded Pole motor is an AC single phase induction motor. The auxiliary winding, which is composed of a copper ring, is called a shading coil. The current in this coil delay the phase of magnetic flux in that part of the pole in order to provide a rotating magnetic field. The direction of rotation is from the unshaded side to the shaded ring.
ReadMore+

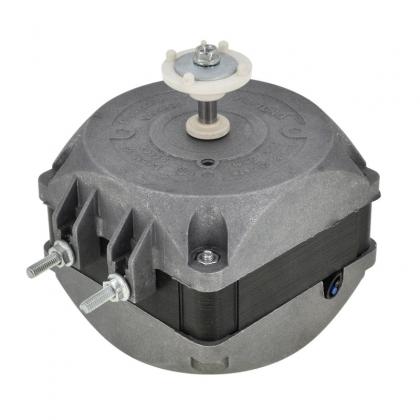

AC Shaded Pole Fan Asynchronous Gear Engine Motor shaded pole motor
