90V-240V AC Brushless Shaded Pole Fan Motor

The motor has the advantages of simple structure, convenient manufacture, low cost, low noise and no radio interference during operation.

  • Item NO.:

  • Order(MOQ):

  • Payment:

    T/T, L/C, Paypal, Western Union
  • Product Origin:

  • Color:

  • Shipping Port:

  • Lead Time:

    20 working days
  • Weight:

  • Product Detail

Shade pole motors are the most economical means of providing rotational motion for low power machines such as small fans, blowers, and fluid mixers.

About this item

  • Designed for projects that requires cooling or ventilation; or as a replacement fan motor for various products.

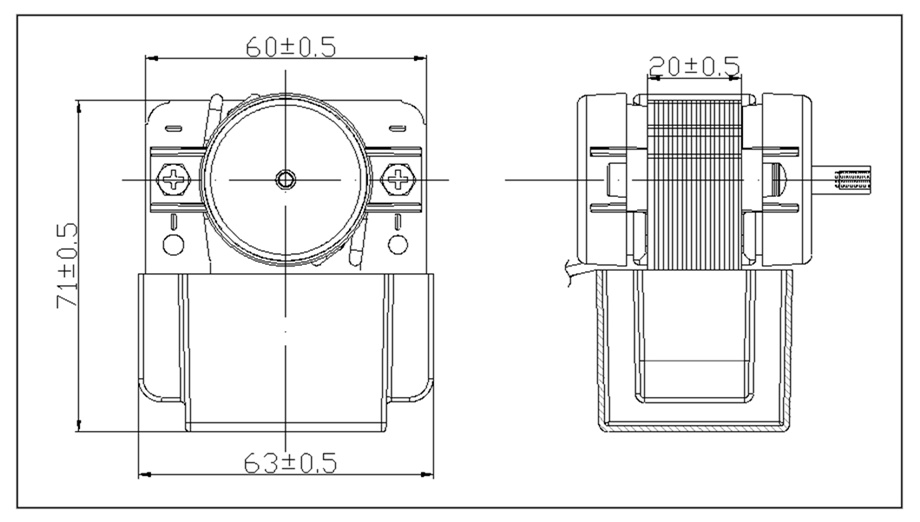

  • Dimension of the motor is 61 mm(L) x 20 mm(H) / The size of fan in inch is 2.40 in(L) x 0.78 in(H).
  • Operating Voltage Range: AC 90 ~ 240V | Frequency: 50/60Hz | Current / Speed / Shaft Diameter / Shaft Length: according to customer requirements.
  • Lead wire: (+): Red wire; (-): Black wire. Bearing Type: Sleeve Bearing / Double Ball Bearing; Life: working up to 50,000h at 25 degrees.
  • Please Comfirm the Motor Size, Voltage, Connector and other parameters before purchase.

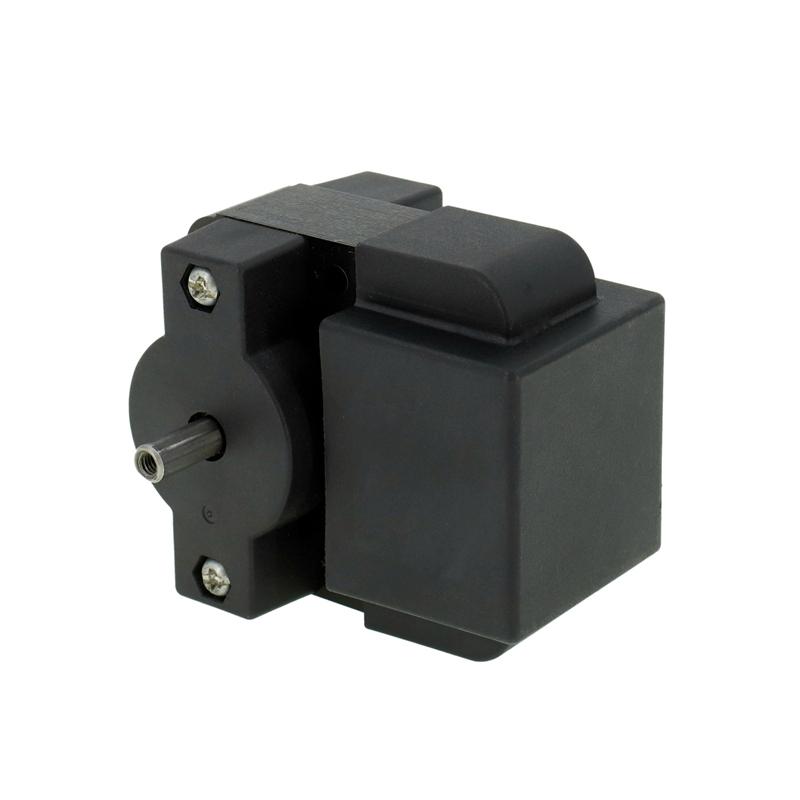

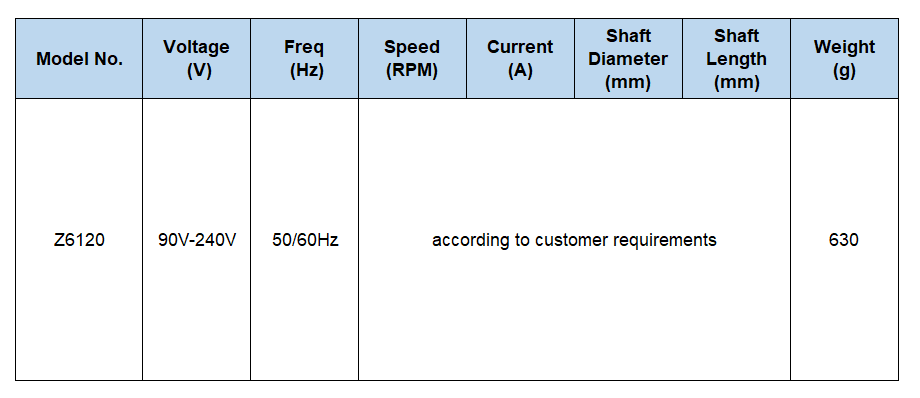

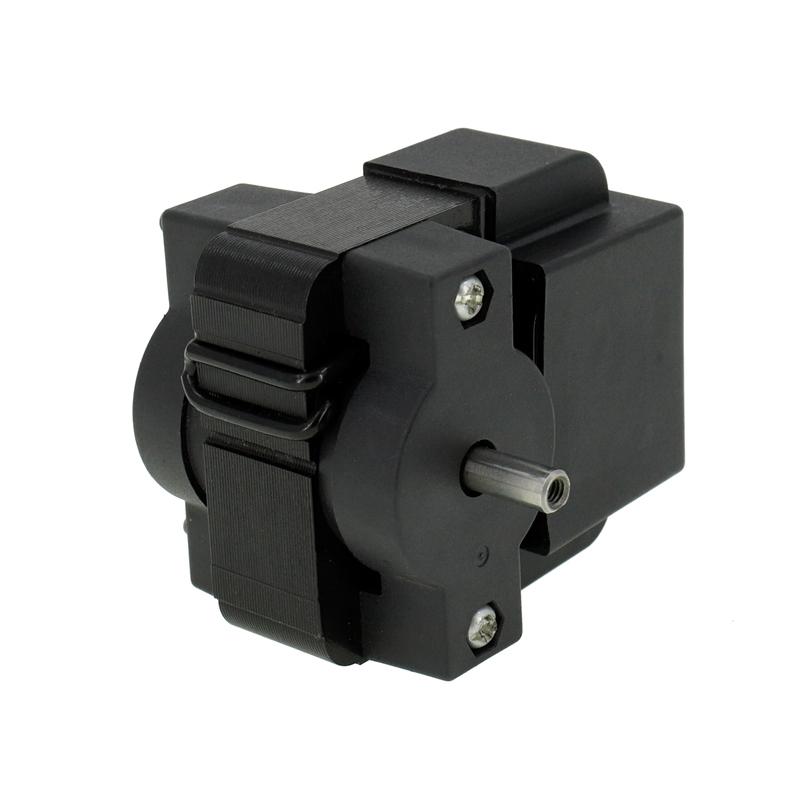

AC Shaded Pole Motor Z6120


General Specification:

Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing



·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.


  • High efficiency for low operation costs;
  • With energy efficient, durable, and high quality;
  • Leading reliability and vibration values, even in extreme conditions;
  • Resource-conserving with low weight and reduced space requirements;
  • Extremely long lifetime as a result of the optimized temperature distribution;

More Models

These fans are available in several sizes to accommodate diverse applications— such as those found in tight spaces or difficult to reach areas.

Type Model Type Model
AC Shaded Pole Motor Z4815 DC Brushless Motor M25-20
Z6110 M38-20
Z6120 M6830


Used in air conditioning and refrigeration equipment and cooling fans, pace heaters, fans humidifiers, business equipment, office machines, household appliances and industrial products.

  • Customized projects related to air conditioning, printers, copiers, sports equipment and many other fields.
  • Create a good cooling and ventilation system to keep household appliances and other electronic equipment running at the ideal temperature and the best speed.

Quality Control

CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.

In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.


Over the years, we have been with many well-known brands to achieve friendly cooperation.

Sincerely thank our customers for their trust and support.


All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.

Want to know about this product?

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products
Spare Parts AC Shaded Pole Gear Fan Motor shaded pole motor
The shaded pole induction motor is simply a self-starting single-phase induction motor whose one of the pole is shaded by the copper ring. The copper ring is also called the shaded ring. This copper ring act as a secondary winding for the motor. The shaded pole motor rotates only in one particular direction, and the reverse movement of the motor is not possible.
Electric Brushless AC Shaded Pole Fan Asynchronous Motor ac fan motor
The shaded pole motor features stable structure, reliable operation, low noise and no electromagnetic interference.
AC Fan Brushless Shaded Pole Gear Electric Motor shaded pole motor
The construction of the motor is very simple because it does not contain any commutator, brushes, collector rings, etc. or any other part. The shaded pole induction motor does not have any centrifugal switch. Thus, the chances of failure of the motor are less.
AC Shaded Pole Asynchronous Motor for Cooling Fan shaded pole motor
A Shaded Pole motor is an AC single phase induction motor. The auxiliary winding, which is composed of a copper ring, is called a shading coil. The current in this coil delay the phase of magnetic flux in that part of the pole in order to provide a rotating magnetic field. The direction of rotation is from the unshaded side to the shaded ring.
AC Shaded Pole Fan Asynchronous Gear Engine Motor shaded pole motor
AC shaded-pole motors are widely used in small household appliances such as electric fans, hair dryers and vacuum cleaners because of their simple structure, low manufacturing cost and low running noise.
Long Lifetime AC Brushless Shaded Pole Fan Motor shaded pole motor
When the main winding of the shaded pole motor is energized, the shaded pole winding will also generate induced current, which will make the magnetic flux of the covered part of the stator pole and the uncovered part rotate in the direction of the covered part.
High Performance Axial Exhaust Fan for Air Cooler fan air cooler
DC axial fans offer an ideal solution for equipment powered by a 5V, 12V or 24V DC power source, providing efficient parallel airflow to the cooled unit, lower noise, and reduced vibration.
Refrigerator Air Cooler Exhaust Axial Fan with Fg/Rd/PWM axial exhaust fans industrial
120x120x25mm high performance compact axial fans are often used for cooling computers, copy machines, electronic instruments, machine tool equipment, and refrigeration systems.
